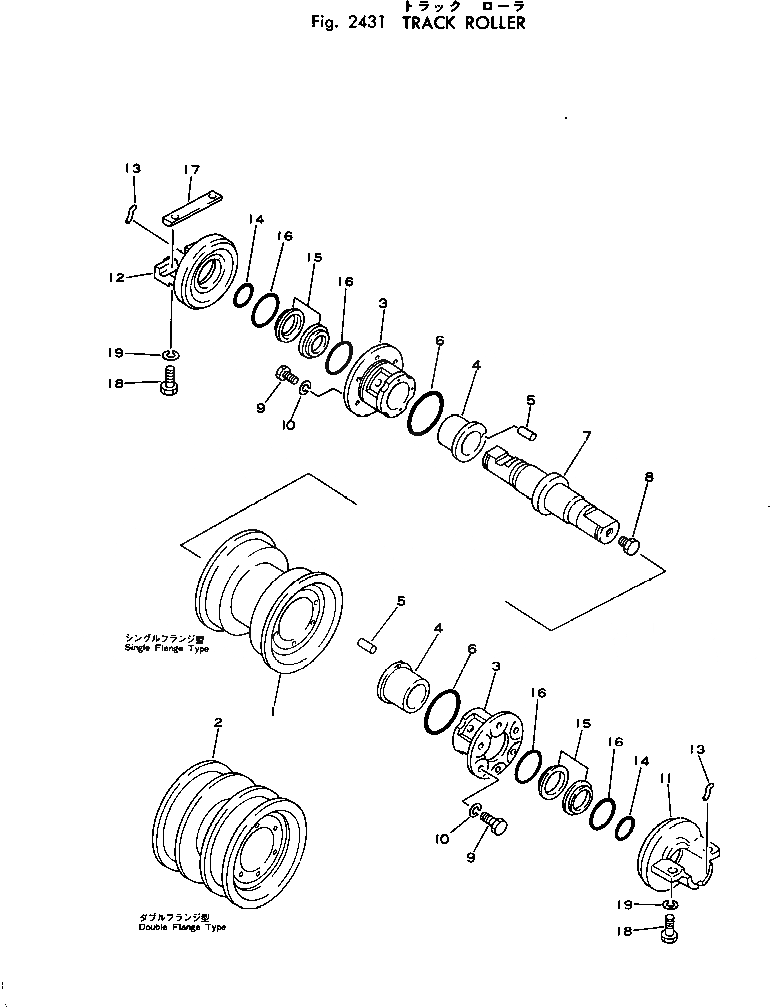

Запчасти Komatsu D50A-16 ОПОРНЫЙ КАТОК ГУСЕНИЦЫ

|$0

131-30-00322

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: .-UP

6шт.

|$1

0

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: 69075-.

6шт.

|$2

0

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: 65001-69074

6шт.

|$3

131-30-00322

TRACK ROLLER ASS'Y,SINGLE FLANGE (FOR LONG TRACK)

SN: .-UP

8шт.

|$4

0

TRACK ROLLER ASS'Y,SINGLE FLANGE (FOR LONG TRACK)

SN: 69075-.

8шт.

|$5

0

TRACK ROLLER ASS'Y,SINGLE FLANGE (FOR LONG TRACK)

SN: 65001-69074

8шт.

|$6

131-30-00332

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: .-UP

4шт.

|$7

0

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: 69075-.

4шт.

|$8

0

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: 65001-69074

4шт.

|$9

131-30-00322

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: 65000-65000

8шт.

|$10

0

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: 65000-65000

8шт.

|$11

0

TRACK ROLLER ASS'Y,SINGLE FLANGE

SN: 65000-65000

8шт.

|$12

131-30-00332

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: 65000-65000

6шт.

|$13

0

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: 65000-65000

6шт.

|$14

0

TRACK ROLLER ASS'Y,DOUBLE FLANGE

SN: 65000-65000

6шт.

1

140-30-16350

ROLLER,TRACK, SINGLE FLANGE

SN: 69075-UP

1шт.

1

0

ROLLER,TRACK, SINGLE FLANGE

SN: 65001-69074

1шт.

2

140-30-16360

ROLLER,TRACK, DOUBLE FLANGE

SN: 69075-UP

1шт.

2

0

ROLLER,TRACK, DOUBLE FLANGE

SN: 65001-69074

1шт.

|$19

131-30-00110

BUSHING ASS'Y

SN: 65001-UP

2шт.

3

0

BUSHING

SN: 65001-UP

1шт.

4

131-30-46130

BUSHING

SN: 65001-UP

1шт.

5

141-30-36310

PIN

SN: 65001-UP

2шт.

6

07000-03092

O-RING (KIT)

SN: 65001-UP

2шт.

7

141-30-16111

SHAFT

SN: 65001-UP

1шт.

8

07052-11624

PLUG

SN: 65001-UP

1шт.

9

01010-31025

BOLT

SN: 65001-UP

12шт.

10

01602-01030

WASHER

SN: 65001-UP

12шт.

11

140-30-16162

COLLAR

SN: 65001-UP

1шт.

12

140-30-16170

COLLAR

SN: 65001-UP

1шт.

13

130-09-16740

RING

SN: 65001-UP

2шт.

14

07000-03045

O-RING (KIT)

SN: 65001-UP

2шт.

|$32

140-30-00141

FLOATING SEAL ASS'Y

SN: .-UP

2шт.

|$33

0

FLOATING SEAL ASS'Y

SN: 69075-.

2шт.

|$34

0

FLOATING SEAL ASS'Y

SN: 65001-69074

2шт.

15

140-30-00401

SEAL RING ASS'Y

SN: 69075-UP

1шт.

15

0

SEAL RING ASS'Y

SN: 65001-69074

1шт.

15

0

RING,SEAL

SN: 69075-UP

2шт.

15

0

RING,SEAL

SN: 65001-69074

2шт.

16

140-30-00411

O-RING ASS'Y (KIT)

SN: .-UP

1шт.

16

0

O-RING ASS'Y

SN: 65001-.

1шт.

16

0

O-RING (KIT)

SN: .-UP

2шт.

16

0

O-RING

SN: 65001-.

2шт.

17

130-30-16120

LOCK

SN: 65001-UP

10шт.

17

130-30-16120

LOCK,(FOR LONG TRACK)

SN: 65001-UP

12шт.

17

130-30-16120

LOCK

SN: 65000-65000

14шт.

18

01010-31655

BOLT

SN: 65001-UP

40шт.

18

01010-31655

BOLT,(FOR LONG TRACK)

SN: 65001-UP

48шт.

18

01010-31655

BOLT

SN: 65000-65000

56шт.

19

01643-31645

WASHER

SN: .-UP

40шт.

19

01602-01648

WASHER

SN: 65001-.

40шт.

19

01643-31645

WASHER,(FOR LONG TRACK)

SN: .-UP

48шт.

19

01602-01648

WASHER,(FOR LONG TRACK)

SN: 65001-.

48шт.

19

01643-31645

WASHER

SN: 65000-65000

56шт.

19

01602-01648

WASHER

SN: 65000-65000

56шт.
