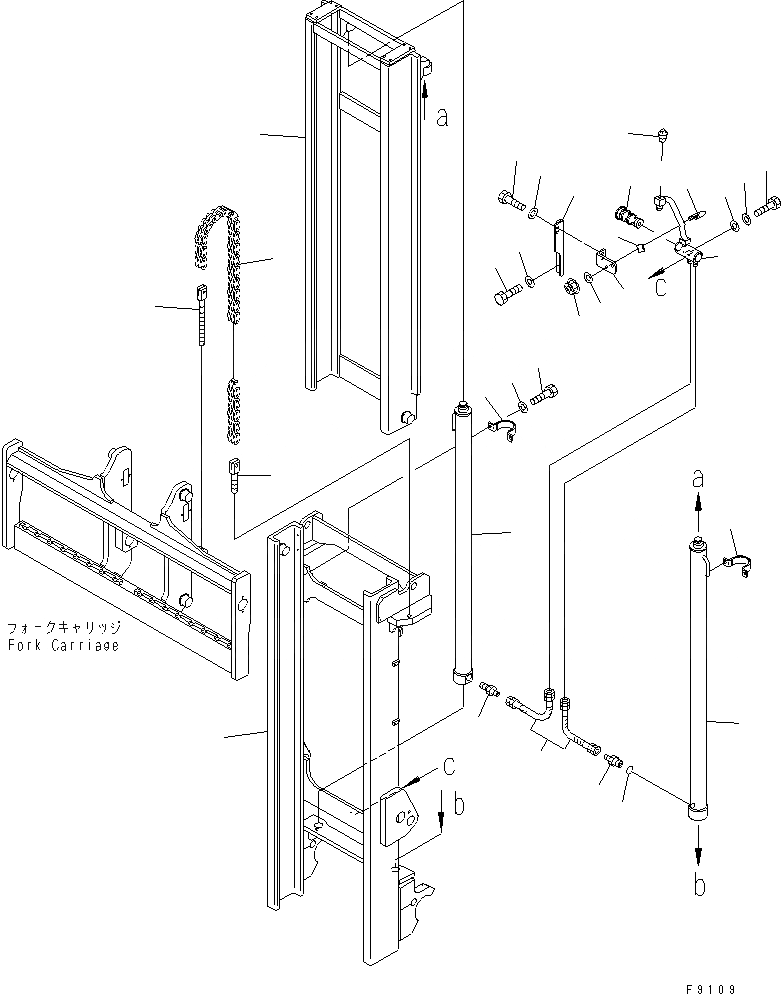

Запчасти Komatsu FD100-8 МАЧТА (/) (МАЧТА И ГИДРОЦИЛИНДР ПОДЪЕМА) (ДЛЯ .M - .M) МАЧТА И СТРЕЛА

1

37E-7AB-6400

MAST,OUTER (FOR 4.0M MAST)

SN: 7001-UP

1шт.

|$21

37E-7AB-6450

MAST,OUTER (FOR 4.5M MAST)

SN: 7001-UP

1шт.

|$22

37E-7AB-6500

MAST,OUTER (FOR 5.0M MAST)

SN: 7001-UP

1шт.

|$23

37E-7AB-6550

MAST,OUTER (FOR 5.5M MAST)

SN: 7001-UP

1шт.

|$24

37E-7AB-6600

MAST,OUTER (FOR 6.0M MAST)

SN: 7001-UP

1шт.

2

37E-7AD-5400

MAST,INNER (FOR 4.0M MAST)

SN: 7001-UP

1шт.

|$26

37E-7AD-5450

MAST,INNER (FOR 4.5M MAST)

SN: 7001-UP

1шт.

|$27

37E-7AD-5500

MAST,INNER (FOR 5.0M MAST)

SN: 7001-UP

1шт.

|$28

37E-7AD-5550

MAST,INNER (FOR 5.5M MAST)

SN: 7001-UP

1шт.

|$29

37E-7AD-5600

MAST,INNER (FOR 6.0M MAST)

SN: 7001-UP

1шт.

|$30

37E-9AA-3400

CHAIN ASS'Y,(FOR 4.0M MAST)

SN: 7001-UP

2шт.

|$31

37E-9AA-3450

CHAIN ASS'Y,(FOR 4.5M MAST)

SN: 7001-UP

2шт.

|$32

37E-9AA-3500

CHAIN ASS'Y,(FOR 5.0M MAST)

SN: 7001-UP

2шт.

|$33

37E-9AA-3550

CHAIN ASS'Y,(FOR 5.5M MAST)

SN: 7001-UP

2шт.

|$34

37E-9AA-3600

CHAIN ASS'Y,(FOR 6.0M MAST)

SN: 7001-UP

2шт.

3

37E-739-1210

CHAIN,(FOR 4.0M MAST)

SN: 7001-UP

1шт.

|$36

37E-739-1250

CHAIN,(FOR 4.5M MAST)

SN: 7001-UP

1шт.

|$37

37E-739-1310

CHAIN,(FOR 5.0M MAST)

SN: 7001-UP

1шт.

|$38

37E-739-1350

CHAIN,(FOR 5.5M MAST)

SN: 7001-UP

1шт.

|$39

37E-739-1380

CHAIN,(FOR 6.0M MAST)

SN: 7001-UP

1шт.

4

3EE-71-22410

STOPPER

SN: 7001-UP

1шт.

5

3EE-71-22420

STOPPER

SN: 7001-UP

1шт.

6

37E-7AT-3400UE

CYLINDER ASS'Y,LIFT (FOR 4.0M MAST)

SN: 7001-UP

2шт.

|$43

37E-7AT-3450UE

CYLINDER ASS'Y,LIFT (FOR 4.5M MAST)

SN: 7001-UP

2шт.

|$44

37E-7AT-3500UE

CYLINDER ASS'Y,LIFT (FOR 5.0M MAST)

SN: 7001-UP

2шт.

|$45

37E-7AT-3550UE

CYLINDER ASS'Y,LIFT (FOR 5.5M MAST)

SN: 7001-UP

2шт.

|$46

37E-7AT-3600UE

CYLINDER ASS'Y,LIFT (FOR 6.0M MAST)

SN: 7001-UP

2шт.

7

3FE-71-11450

CLAMP

SN: 7001-UP

2шт.

8

01010-81635

BOLT

SN: 7001-UP

4шт.

9

01643-31645

WASHER

SN: 7001-UP

4шт.

10

3FE-71-41150UE

BLOCK

SN: 7001-UP

1шт.

11

01010-81025

BOLT

SN: 7001-UP

2шт.

12

01643-31032

WASHER

SN: 7001-UP

2шт.

13

3EB-50-25120

WASHER

SN: 7001-UP

2шт.

14

07042-30108

PLUG

SN: 7001-UP

1шт.

15

3EE-66-25111

VALVE ASS'Y,DOWN CONTROL

SN: 7001-UP

1шт.

|$58

07000-12060

O-RING

SN: 7001-UP

1шт.

|$59

07000-12055

O-RING

SN: 7001-UP

1шт.

16

3FE-71-32430

HOSE

SN: 7001-UP

2шт.

17

3EE-66-21861

NIPPLE

SN: 7001-UP

1шт.

18

07002-14234

O-RING

SN: 7001-UP

1шт.

19

3EE-66-25211

VALVE ASS'Y,SAFETY

SN: 7001-UP

1шт.

|$64

07002-12434

O-RING

SN: 7001-UP

1шт.

20

3FE-71-41240UE

BRACKET

SN: 7001-UP

1шт.

21

07283-33450

CLIP

SN: 7001-UP

1шт.

22

07283-53444

SEAT

SN: 7001-UP

1шт.

23

01597-01009

NUT

SN: 7001-UP

2шт.

24

01643-31032

WASHER

SN: 7001-UP

2шт.

25

3FE-71-41160UE

BRACKET

SN: 7001-UP

1шт.

26

01010-81020

BOLT

SN: 7001-UP

4шт.

27

01643-31032

WASHER

SN: 7001-UP

4шт.
