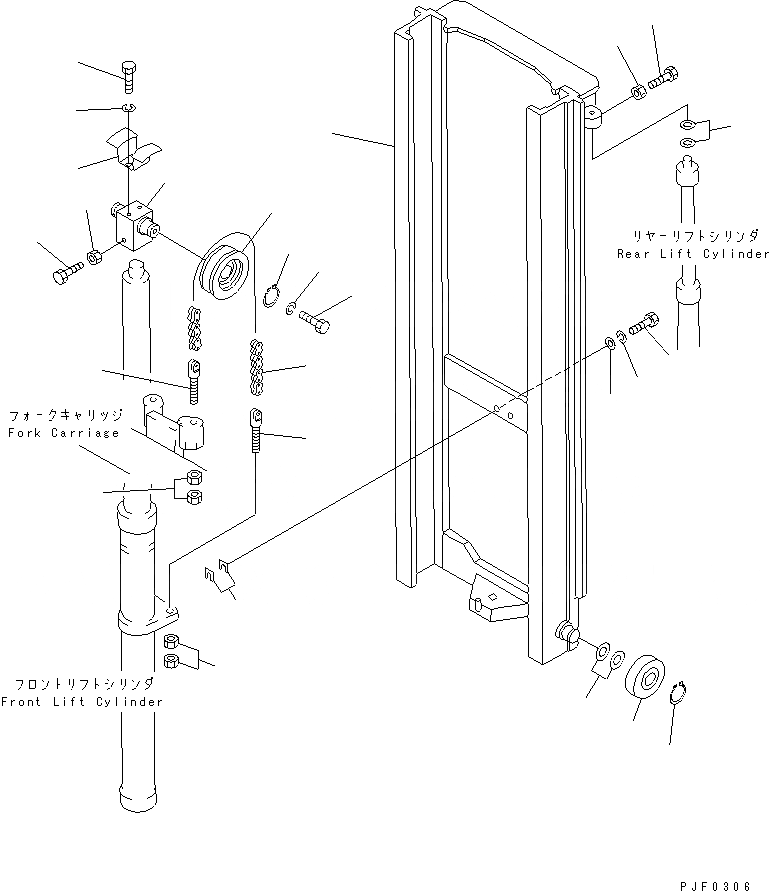

Запчасти Komatsu FD20H-25H-14 ВНУТР. МАЧТА (VF .T-.T) МАЧТА И СТРЕЛА

1

37B-MAD-3300

MAST,INNER, (FOR 3.0M MAST)

SN: 550001-UP

1шт.

|$21

37B-MAD-3330

MAST,INNER, (FOR 3.3M MAST)

SN: 550001-UP

1шт.

|$22

37B-MAD-3350

MAST,INNER, (FOR 3.5M MAST)

SN: 550001-UP

1шт.

|$23

37B-MAD-3400

MAST,INNER, (FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$24

37B-MAD-3450

MAST,INNER, (FOR 4.5M MAST)

SN: 550001-UP

1шт.

2

37B-9AA-1512

ROLLER,(S)

SN: 550001-UP

2шт.

|$26

37B-9AA-1522

ROLLER,(M)

SN: 550001-UP

2шт.

|$27

37B-9AA-1532

ROLLER,(L)

SN: 550001-UP

2шт.

3

3EB-71-00060

SHIM ASS'Y

SN: 550001-UP

2шт.

|$29

0

SHIM, 0.2MM

SN: 550001-UP

-2шт.

|$30

0

SHIM, 0.5MM

SN: 550001-UP

-2шт.

|$31

0

SHIM, 1.0MM

SN: 550001-UP

-2шт.

|$32

0

SHIM, 2.3MM

SN: 550001-UP

-2шт.

4

04064-04018

RING,SNAP

SN: 550001-UP

2шт.

5

3RB-72-00010

SHIM ASS'Y

SN: 550001-UP

2шт.

|$35

0

SHIM, 0.2MM

SN: 550001-UP

-2шт.

|$36

0

SHIM, 0.5MM

SN: 550001-UP

-2шт.

|$37

0

SHIM, 1.0MM

SN: 550001-UP

-2шт.

6

01010-81645

BOLT

SN: 550001-UP

2шт.

7

01602-21648

WASHER,SPRING

SN: 550001-UP

2шт.

8

01643-31645

WASHER

SN: 550001-UP

2шт.

9

3EB-71-00070

SHIM ASS'Y

SN: 550001-UP

2шт.

|$42

0

SHIM, 0.5MM

SN: 550001-UP

-2шт.

|$43

0

SHIM, 1.0MM

SN: 550001-UP

-2шт.

|$44

0

SHIM, 2.3MM

SN: 550001-UP

-2шт.

10

01016-81030

BOLT

SN: 550001-UP

2шт.

11

01580-11008

NUT

SN: 550001-UP

2шт.

12

3EB-T1-32310

HEAD

SN: 550001-UP

1шт.

13

34B-76-52871

WHEEL ASS'Y

SN: 550001-UP

2шт.

14

04064-04018

RING,SNAP

SN: 550001-UP

2шт.

15

01010-81625

BOLT

SN: 550001-UP

2шт.

16

01602-21648

WASHER,SPRING

SN: 550001-UP

2шт.

17

01016-81035

BOLT

SN: 550001-UP

1шт.

18

01580-11008

NUT

SN: 550001-UP

1шт.

19

3EB-T6-22351

COVER

SN: 550001-UP

1шт.

20

01010-80820

BOLT

SN: 550001-UP

2шт.

21

01602-20825

WASHER,SPRING

SN: 550001-UP

2шт.

|$57

37B-9CA-2400

CHAIN ASS'Y,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$58

37B-9CA-2440

CHAIN ASS'Y,(FOR 3.3M MAST)

SN: 550001-UP

2шт.

|$59

37B-9CA-2460

CHAIN ASS'Y,(FOR 3.5M MAST)

SN: 550001-UP

2шт.

|$60

37B-9CA-2540

CHAIN ASS'Y,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$61

37B-9CA-2500

CHAIN ASS'Y,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

22

37B-737-1240

CHAIN,(FOR 3.0M MAST)

SN: 550001-UP

1шт.

|$63

37B-737-1270

CHAIN,(FOR 3.3M MAST)

SN: 550001-UP

1шт.

|$64

37B-787-1130

CHAIN,(FOR 3.5M MAST)

SN: 550001-UP

1шт.

|$65

37B-787-1150

CHAIN,(FOR 4.0M MAST)

SN: 550001-UP

1шт.

|$66

37B-787-1140

CHAIN,(FOR 4.5M MAST)

SN: 550001-UP

1шт.

23

3EB-71-22551

STOPPER

SN: 550001-UP

2шт.

24

01582-11613

NUT

SN: 550001-UP

8шт.
