|$$1

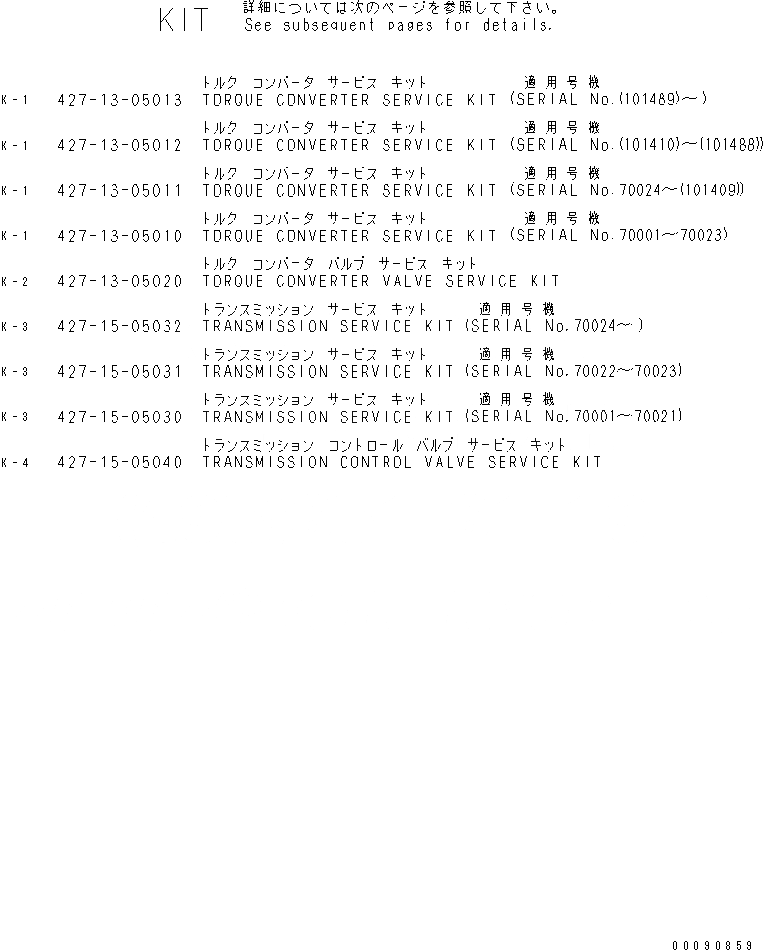

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
1
427-13-05013
SERVICE KIT
SN: (101489)-UP
1шт.
1
427-13-05012
SERVICE KIT
SN: (101410)-(101488)
1шт.
1
427-13-05011
SERVICE KIT
SN: 70024-(101409)
1шт.
1
427-13-05010
SERVICE KIT
SN: 70001-70023
1шт.
1
07000-72085
O-RING,(F4310-54A0 -7 )
SN: 70001-UP
1шт.
1
07000-72105
O-RING,(F4310-54A0 -6 )
SN: 70001-UP
4шт.
1
07000-73028
O-RING,(F4310-55A0 -19 )
SN: 70001-UP
1шт.
1
07000-75075
O-RING,(F4310-52A0 -3 )
SN: 70001-UP
1шт.
1
07000-75145
O-RING,(F4310-52A0 -10 )
SN: 70001-UP
1шт.
1
07005-01212
SEAL, WASHER,(F4310-54A0 -17 )
SN: 70001-UP
18шт.
1
425-13-32710
RING,(F4310-51A0 -16 )
SN: (101489)-UP
1шт.
1
07018-31706
RING,(F4310-51A0 -16 )
SN: 70001-(101488)
1шт.
1
711-33-13340
O-RING,(F4310-54A0 -5 )
SN: (101410)-UP
1шт.
1
566-13-13341
O-RING,(F4310-54A0 -5 )
SN: 70001-(101409)
1шт.
1
07012-50110
SEAL,(F4310-52A0 -10 )
SN: 70024-UP
1шт.
1
711-56-39110
SEAL,(F4310-52A0 -10 )
SN: 70001-70023
1шт.
1
711-28-49710
SEAL,(F4310-52A0 -11 )
SN: 70024-UP
1шт.
2
427-13-05020
SERVICE KIT
SN: 70001-UP
1шт.
2
07000-72014
O-RING,(F4310-55A0 -12 )
SN: 70001-UP
1шт.
2
07000-72014
O-RING,(F4310-55A0 -16 )
SN: 70001-UP
2шт.
2
07000-73045
O-RING,(F4310-55A0 -7 )
SN: 70001-UP
2шт.
2
07000-73048
O-RING,(F4310-54A0 -24 )
SN: 70001-UP
1шт.
2
07000-73048
O-RING,(F4310-55A0 -15 )
SN: 70001-UP
1шт.
3
427-15-05032
SERVICE KIT
SN: 70024-UP
1шт.
3
427-15-05031
SERVICE KIT
SN: 70022-70023
1шт.
3
427-15-05030
SERVICE KIT
SN: 70001-70021
1шт.
3
07000-72075
O-RING,(F4320-55A0 -10 )
SN: 70001-UP
3шт.
3
07000-72085
O-RING,(F4320-54A0 -5 )
SN: 70001-UP
1шт.
3
07000-72135
O-RING,(F4320-57A0 -8 )
SN: 70001-UP
1шт.
3
07000-75170
O-RING,(F4320-56A0 -8 )
SN: 70001-UP
1шт.
3
07000-75190
O-RING,(F4320-55A0 -5 )
SN: 70001-UP
2шт.
3
07000-75210
O-RING,(F4320-57A0 -6 )
SN: 70001-UP
1шт.
3
07000-75260
O-RING,(F4320-58A0 -19 )
SN: 70001-UP
1шт.
3
07000-75305
O-RING,(F4320-57A0 -2 )
SN: 70001-UP
1шт.
3
07000-75315
O-RING,(F4320-57A0 -12 )
SN: 70001-UP
1шт.
3
07000-75405
O-RING,(F4320-58A0 -10 )
SN: 70001-UP
1шт.
3
07000-72065
O-RING,(F4320-54A0 -6 )
SN: 70001-UP
2шт.
3
07000-73025
O-RING,(F4320-54A0 -7 )
SN: 70001-UP
6шт.
3
07000-73028
O-RING,(F4320-54A0 -19 )
SN: 70001-UP
1шт.
3
07000-73030
O-RING,(F4320-54A0 -4 )
SN: 70001-UP
4шт.
3
07000-73035
O-RING,(F4320-54A0 -9 )
SN: 70001-UP
3шт.
3
07000-73035
O-RING,(F4320-55A0 -4 )
SN: 70001-UP
2шт.
3
07000-73035
O-RING,(F4320-56A0 -7 )
SN: 70001-UP
3шт.
3
07000-73045
O-RING,(F4320-65A0 -9 )
SN: 70001-UP
1шт.
3
07000-73048
O-RING,(F4320-65A0 -15 )
SN: 70001-UP
1шт.
3
07000-73050
O-RING,(F4320-54A0 -8 )
SN: 70001-UP
4шт.
3
103-15-12820
RING,(F4320-52A0 -2 )
SN: 70001-UP
1шт.
3
124-15-41920
RING,(F4320-52A0 -4 )
SN: 70001-UP
1шт.
3
154-15-22811
RING,(F4320-51A0 -8 )
SN: 70001-UP
1шт.
3
195-15-29210
RING,(F4320-51A0 -12 )
SN: 70001-UP
2шт.
3
198-15-29210
RING,(F4320-51A0 -10 )
SN: 70001-UP
2шт.
3
198-15-29220
RING,(F4320-51A0 -24 )
SN: 70001-UP
1шт.
3
198-13-49110
O-RING,(F4320-54A0 -23 )
SN: 70022-UP
1шт.
3
281-09-11110
O-RING,(F4320-54A0 -23 )
SN: 70001-70021
1шт.
3
198-13-49110
O-RING,(F4320-55A0 -6 )
SN: 70022-UP
1шт.
3
281-09-11110
O-RING,(F4320-55A0 -6 )
SN: 70001-70021
1шт.
3
415-15-12750
RING,(F4320-52A0 -5 )
SN: 70001-UP
1шт.
3
427-15-13510
SHIM, 0.2MM,(F4320-58A0 -19 )
SN: 70001-UP
10шт.
3
427-15-13520
SHIM, 0.15MM,(F4320-58A0 -19- )
SN: 70001-UP
10шт.
3
427-15-15930
GASKET,(F4320-65A0 -3 )
SN: 70001-UP
1шт.
3
427-15-19150
OIL SEAL,(F4320-58A0 -11 )
SN: 70024-UP
2шт.
3
427-15-19120
SEAL,(F4320-58A0 -11 )
SN: 70001-70023
2шт.
3
427-15-19140
DUST SEAL,(F4320-58A0 -12 )
SN: 70024-UP
2шт.
3
427-15-19210
RING,(F4320-51A0 -15 )
SN: 70001-UP
2шт.
3
562-15-39970
O-RING,(F4320-58A0 -13 )
SN: 70022-UP
2шт.
3
562-15-19970
O-RING,(F4320-58A0 -13 )
SN: 70001-70021
2шт.
4
427-15-05040
SERVICE KIT
SN: 70001-UP
1шт.
4
07000-71009
O-RING,(F4320-64A0 -36 )
SN: 70001-UP
5шт.
4
07000-72014
O-RING,(F4320-59A0 -23 )
SN: 70001-UP
2шт.
4
07000-72018
O-RING,(F4320-63A0 -6 )
SN: 70001-UP
6шт.
4
07000-72021
O-RING,(F4320-59A0 -7 )
SN: 70001-UP
2шт.
4
07000-72021
O-RING,(F4320-61A0 -10 )
SN: 70001-UP
1шт.
4
07000-72060
O-RING,(F4320-59A0 -9 )
SN: 70001-UP
1шт.
4
07000-72060
O-RING,(F4320-60A0 -17 )
SN: 70001-UP
2шт.
4
07000-73028
O-RING,(F4320-63A0 -7 )
SN: 70001-UP
5шт.
4
07000-73030
O-RING,(F4320-61A0 -12 )
SN: 70001-UP
1шт.
4
07000-73032
O-RING,(F4320-61A0 -14 )
SN: 70001-UP
2шт.
4
07000-73035
O-RING,(F4320-59A0 -8 )
SN: 70001-UP
2шт.
4
07000-73040
O-RING,(F4320-61A0 -13 )
SN: 70001-UP
1шт.
4
07000-73045
O-RING,(F4320-61A0 -18 )
SN: 70001-UP
1шт.
4
07002-03334
O-RING,(F4320-61A0 -5 )
SN: 70001-UP
2шт.
4
195-15-15910
SHIM, 0.5MM,(F4320-62A0 -20 )
SN: 70001-UP
4шт.
4
195-15-35910
GASKET,(F4320-63A0 -12 )
SN: 70001-UP
1шт.
4
195-15-35920
GASKET,(F4320-63A0 -13 )
SN: 70001-UP
1шт.
4
195-15-37140
GASKET,(F4320-64A0 -31 )
SN: 70001-UP
1шт.
4
198-15-15570
SHIM, 0.50MM,(F4320-62A0 -15 )
SN: 70001-UP
6шт.
4
203-57-21320
SHIM, 0.5MM,(F4320-62A0 -18 )
SN: 70001-UP
4шт.
4
424-15-17230
GASKET,(F4320-64A0 -27 )
SN: 70001-UP
1шт.
4
427-15-15910
O-RING,(F4320-60A0 -15 )
SN: 70001-UP
2шт.
4
427-15-15921
GASKET,(F4320-60A0 -21 )
SN: 70001-UP
1шт.
4
427-15-16470
SHIM, 0.5MM,(F4320-60A0 -8 )
SN: 70001-UP
14шт.
4
560-43-14330
SHIM, 0.5MM,(F4320-62A0 -19 )
SN: 70001-UP
10шт.
