Запчасти Komatsu WA600-6R РЕМ. КОМПЛЕКТЫ ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

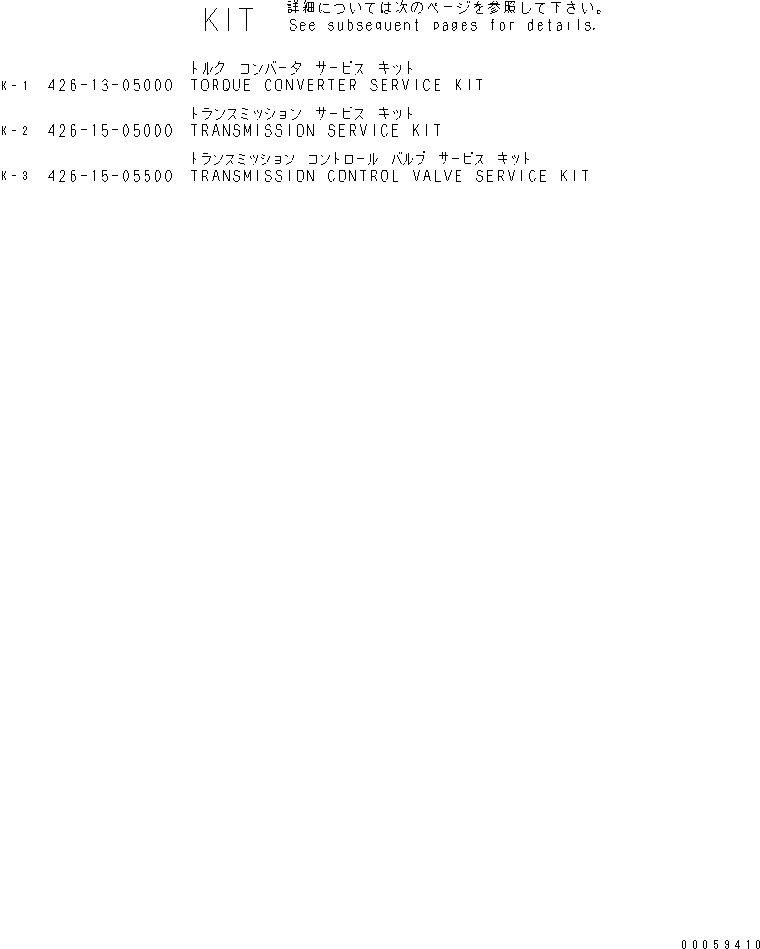

Схема запчастей Komatsu WA600-6R - РЕМ. КОМПЛЕКТЫ ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

426-13-05000

SERVICE KIT,TORQUE CONVERTER

SN: 65001-UP

1шт.

1

07000-72120

O-RING,(F4310-52A0 -15 )

SN: 65001-UP

1шт.

1

07000-75200

O-RING,(F4310-53A0 -37 )

SN: 65001-UP

1шт.

1

07000-75260

O-RING,(F4310-53A0 -9 )

SN: 65001-UP

2шт.

1

07000-75270

O-RING,(F4310-53A0 -20 )

SN: 65001-UP

2шт.

1

07000-75335

O-RING,(F4310-52A0 -9 )

SN: 65001-UP

1шт.

1

07002-61023

O-RING,(F4310-52A0 -19 )

SN: 65001-UP

1шт.

1

07002-62434

O-RING,(F4310-53A0 -4 )

SN: 65001-UP

1шт.

1

07005-01212

SEAL,(F4310-53A0 -24 )

SN: 65001-UP

6шт.

1

07012-50095

SEAL,(F4310-53A0 -41 )

SN: 65001-UP

1шт.

1

07018-31405

RING,(F4310-51A0 -17 )

SN: 65001-UP

1шт.

1

198-15-29230

RING,(F4310-51A0 -35 )

SN: 65001-UP

2шт.

1

232-15-19220

RING,(F4310-51A0 -34 )

SN: 65001-UP

2шт.

1

426-13-00400

SHIM ASS'Y,(F4310-53A0 -36 )

SN: 65001-UP

1шт.

1

426-15-49111

O-RING,(F4310-53A0 -55 )

SN: 65001-UP

1шт.

1

714-08-19210

RING,(F4310-52A0 -27 )

SN: 65001-UP

1шт.

1

714-10-19220

RING,(F4310-52A0 -26 )

SN: 65001-UP

1шт.

1

714-19-19210

RING,(F4310-52A0 -24 )

SN: 65001-UP

2шт.

2

426-15-05000

SERVICE KIT,TRANSMISSION

SN: 65001-UP

1шт.

2

02896-61018

O-RING,(F4300-51A0 -19 )

SN: 65001-UP

2шт.

2

07000-72010

O-RING,(F4320-56A0 -60 )

SN: 65001-UP

1шт.

2

07000-72012

O-RING,(F4320-56A0 -59 )

SN: 65001-UP

1шт.

2

07000-72015

O-RING,(F4320-60A0 -11 )

SN: 65001-UP

20шт.

2

07000-72018

O-RING,(F4320-54A0 -10 )

SN: 65001-UP

6шт.

2

07000-72018

O-RING,(F4320-55A0 -38 )

SN: 65001-UP

1шт.

2

07000-72018

O-RING,(F4320-60A0 -26 )

SN: 65001-UP

1шт.

2

07000-72021

O-RING,(F4320-54A0 -11 )

SN: 65001-UP

6шт.

2

07000-72021

O-RING,(F4320-55A0 -8 )

SN: 65001-UP

2шт.

2

07000-72022

O-RING,(F4320-60A0 -12 )

SN: 65001-UP

1шт.

2

07000-72065

O-RING,(F4300-51A0 -5 )

SN: 65001-UP

2шт.

2

07000-72070

O-RING,(F4320-55A0 -37 )

SN: 65001-UP

1шт.

2

07000-72115

O-RING,(F4320-55A0 -36 )

SN: 65001-UP

1шт.

2

07000-73028

O-RING,(F4320-55A0 -31 )

SN: 65001-UP

1шт.

2

07000-73028

O-RING,(F4320-56A0 -62 )

SN: 65001-UP

1шт.

2

07000-73028

O-RING,(F4320-60A0 -13 )

SN: 65001-UP

1шт.

2

07000-73028

O-RING,(F4320-60A0 -38 )

SN: 65001-UP

2шт.

2

07000-73035

O-RING,(F4320-60A0 -14 )

SN: 65001-UP

6шт.

2

07000-73040

O-RING,(F4300-51A0 -12 )

SN: 65001-UP

1шт.

2

07000-73042

O-RING,(F4320-60A0 -15 )

SN: 65001-UP

1шт.

2

07000-73045

O-RING,(F4320-60A0 -25 )

SN: 65001-UP

1шт.

2

07000-75075

O-RING,(F4320-56A0 -21 )

SN: 65001-UP

2шт.

2

07000-75085

O-RING,(F4300-51A0 -24 )

SN: 65001-UP

1шт.

2

07000-75155

O-RING,(F4320-56A0 -28 )

SN: 65001-UP

1шт.

2

07000-75180

O-RING,(F4320-56A0 -7 )

SN: 65001-UP

1шт.

2

07000-75210

O-RING,(F4320-55A0 -6 )

SN: 65001-UP

1шт.

2

07000-75220

O-RING,(F4320-56A0 -2 )

SN: 65001-UP

1шт.

2

07000-75280

O-RING,(F4320-55A0 -16 )

SN: 65001-UP

1шт.

2

07000-75290

O-RING,(F4320-55A0 -23 )

SN: 65001-UP

1шт.

2

07000-75360

O-RING,(F4320-56A0 -52 )

SN: 65001-UP

2шт.

2

07000-75500

O-RING,(F4320-55A0 -35 )

SN: 65001-UP

1шт.

2

07002-61023

O-RING,(F4320-56A0 -66 )

SN: 65001-UP

1шт.

2

07002-62434

O-RING,(F4300-51A0 -18 )

SN: 65001-UP

2шт.

2

07012-50105

SEAL,(F4320-56A0 -26 )

SN: 65001-UP

1шт.

2

07012-50125

OIL SEAL,(F4320-56A0 -8 )

SN: 65001-UP

1шт.

2

144-15-22881

RING,(F4320-53A0 -14 )

SN: 65001-UP

1шт.

2

232-15-19210

RING,(F4320-52A0 -14 )

SN: 65001-UP

1шт.

2

232-15-19220

RING,(F4320-56A0 -43 )

SN: 65001-UP

1шт.

2

232-15-19230

RING,(F4320-53A0 -2 )

SN: 65001-UP

1шт.

2

287-15-19210

RING,(F4320-52A0 -10 )

SN: 65001-UP

1шт.

2

426-15-00460

SHIM ASS'Y,(F4320-55A0 -9 )

SN: 65001-UP

1шт.

2

426-15-00470

SHIM ASS'Y,(F4320-55A0 -24 )

SN: 65001-UP

1шт.

2

426-15-00480

SHIM ASS'Y,(F4320-56A0 -10 )

SN: 65001-UP

1шт.

2

426-15-49111

O-RING,(F4320-54A0 -12 )

SN: 65001-UP

1шт.

2

562-15-19230

RING,(F4320-51A0 -29 )

SN: 65001-UP

1шт.

2

567-15-12820

RING,(F4320-51A0 -31 )

SN: 65001-UP

1шт.

2

567-15-12820

RING,(F4320-53A0 -4 )

SN: 65001-UP

1шт.

2

568-15-12850

RING,(F4320-51A0 -2 )

SN: 65001-UP

1шт.

2

568-15-12850

RING,(F4320-52A0 -34 )

SN: 65001-UP

1шт.

2

582-15-19250

RING,(F4320-51A0 -4 )

SN: 65001-UP

1шт.

2

582-15-19250

RING,(F4320-52A0 -36 )

SN: 65001-UP

1шт.

2

582-15-19250

RING,(F4320-53A0 -16 )

SN: 65001-UP

1шт.

2

714-07-18541

SEAL,(F4320-56A0 -27 )

SN: 65001-UP

1шт.

2

772-19-14280

SEAL,(F4320-56A0 -9 )

SN: 65001-UP

1шт.

3

426-15-05500

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: 65001-UP

1шт.

3

07000-02060

O-RING,(F4320-58A0 -25- )

SN: 65001-UP

1шт.

3

07000-71007

O-RING,(F4320-57A0 -38 )

SN: 65001-UP

6шт.

3

07000-71007

O-RING,(F4320-57A0 -62 )

SN: 65001-UP

1шт.

3

07000-71007

O-RING,(F4320-58A0 -23 )

SN: 65001-UP

1шт.

3

07000-72015

O-RING,(F4320-57A0 -37 )

SN: 65001-UP

24шт.

3

07000-72015

O-RING,(F4320-57A0 -61 )

SN: 65001-UP

4шт.

3

07000-72015

O-RING,(F4320-58A0 -22 )

SN: 65001-UP

4шт.

3

07000-72015

O-RING,(F4320-59A0 -36 )

SN: 65001-UP

2шт.

3

07000-73022

O-RING,(F4320-58A0 -28 )

SN: 65001-UP

2шт.

3

07000-73030

O-RING,(F4320-59A0 -25 )

SN: 65001-UP

5шт.

3

07002-61023

O-RING,(F4320-57A0 -33 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-57A0 -60 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-58A0 -21 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-59A0 -3 )

SN: 65001-UP

2шт.

3

07002-61023

O-RING,(F4320-59A0 -35 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-59A0 -43 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-60A0 -24 )

SN: 65001-UP

1шт.

3

07002-61023

O-RING,(F4320-60A0 -35 )

SN: 65001-UP

1шт.

3

07002-61423

O-RING,(F4320-57A0 -7 )

SN: 65001-UP

13шт.

3

07002-61623

O-RING,(F4320-57A0 -5 )

SN: 65001-UP

8шт.

3

07002-61423

O-RING,(F4320-59A0 -45 )

SN: 65001-UP

1шт.

3

07002-61823

O-RING,(F4320-58A0 -27 )

SN: 65001-UP

1шт.

3

07002-62034

O-RING,(F4320-59A0 -32 )

SN: 65001-UP

1шт.

3

07002-62434

O-RING,(F4320-60A0 -32 )

SN: 65001-UP

1шт.

3

07002-63034

O-RING,(F4320-57A0 -3 )

SN: 65001-UP

1шт.

3

07002-63034

O-RING,(F4320-59A0 -5 )

SN: 65001-UP

1шт.

3

07002-63034

O-RING,(F4320-59A0 -15 )

SN: 65001-UP

1шт.

3

07002-63034

O-RING,(F4320-59A0 -23 )

SN: 65001-UP

2шт.

3

07002-63034

O-RING,(F4320-59A0 -40 )

SN: 65001-UP

1шт.

3

07002-63634

O-RING,(F4320-60A0 -22 )

SN: 65001-UP

2шт.

Выбрано товаров: 104
