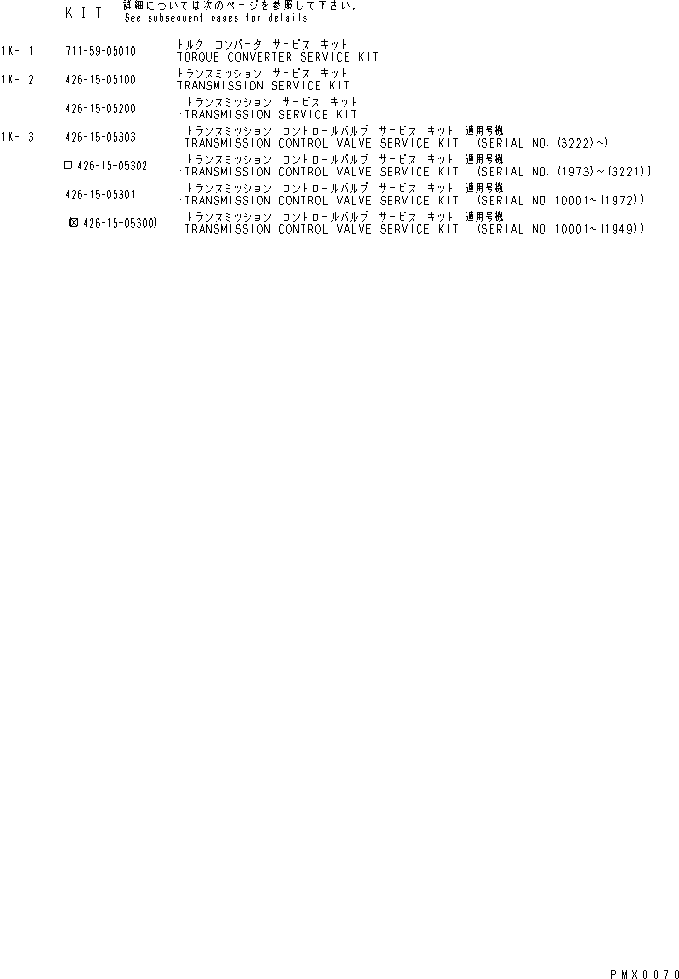

Запчасти Komatsu WA600-1 РЕМ. КОМПЛЕКТЫ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

711-59-05010

SERVICE KIT,TORQUE CONVERTER

SN: 10001-UP

1шт.

|1

07000-63038

O-RING,PLATE

SN: 10001-UP

2шт.

|1

07000-72014

O-RING,VALVE BODY

SN: 10001-UP

2шт.

|1

07000-73035

O-RING,VALVE BODY

SN: 10001-UP

2шт.

|1

07000-75180

O-RING,OIL RETAINER

SN: 10001-UP

2шт.

|1

07012-10095

SEAL,SHAFT

SN: 10001-UP

1шт.

|1

711-17-13232

GASKET

SN: 10001-UP

2шт.

2

426-15-05100

SERVICE KIT,TRANSMISSION

SN: 10001-UP

1шт.

|2

426-15-05200

SERVICE KIT,TRANSMISSION CASE

SN: 10001-UP

1шт.

|2

07000-72021

O-RING,TRANSMISSION CASE

SN: 10001-UP

6шт.

|2

170-09-17130

O-RING,TRANSMISSION CASE

SN: 10001-UP

6шт.

|2

07000-73030

O-RING,TRANSMISSION CASE

SN: 10001-UP

10шт.

|2

07000-72018

O-RING,TRANSMISSION CASE

SN: 10001-UP

6шт.

|2

07000-72021

O-RING,TRANSMISSION CASE

SN: 10001-UP

1шт.

|2

07002-03034

O-RING,PLUG

SN: 10001-UP

2шт.

|2

07002-03634

O-RING,VALVE BODY

SN: 10001-UP

1шт.

|2

07000-73025

O-RING,VALVE BODY

SN: 10001-UP

1шт.

|2

07000-02145

O-RING,TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-73040

O-RING,TRANSFER CASE

SN: 10001-UP

1шт.

|2

07000-02115

O-RING,COVER

SN: 10001-UP

3шт.

|2

07000-02100

O-RING,FLANGE

SN: 10001-UP

4шт.

|2

07000-73028

O-RING,VALVE BODY

SN: 10001-UP

1шт.

|2

07000-33048

O-RING,FILLER

SN: 10001-UP

1шт.

|2

426-15-19610

O-RING,CASE

SN: 10001-UP

1шт.

|2

582-15-19240

RING,SEAL¤ HOUSING

SN: 10001-UP

1шт.

|2

426-15-19220

RING,SEAL¤ PISTON¤ REVERSE

SN: 10001-UP

1шт.

|2

07000-05250

O-RING,CAGE

SN: 10001-UP

1шт.

|2

07012-10120

SEAL,OIL¤ CAGE

SN: 10001-UP

1шт.

|2

07000-05065

O-RING,COUPLING

SN: 10001-UP

1шт.

|2

426-15-19210

RING,SEAL¤ FORWARD HOUSING

SN: 10001-UP

2шт.

|2

175-15-59250

RING,SEAL¤ FORWARD HOUSING

SN: 10001-UP

1шт.

|2

426-15-19220

RING,RING¤ HOUSING¤ 4TH

SN: 10001-UP

1шт.

|2

103-15-12811

RING,SEAL

SN: 10001-UP

1шт.

|2

562-15-19220

RING,SEAL

SN: 10001-UP

1шт.

|2

426-15-19210

RING,SEAL¤ 3RD HOUSING

SN: 10001-UP

1шт.

|2

175-15-59250

RING,SEAL¤ 3RD HOUSING

SN: 10001-UP

1шт.

|2

426-15-19220

RING,SEAL¤ 1ST HOUSING

SN: 10001-UP

1шт.

|2

426-15-19210

RING,SEAL¤ 1ST HOUSING

SN: 10001-UP

1шт.

|2

07000-05300

O-RING,CAGE

SN: 10001-UP

1шт.

|2

07000-05210

O-RING,CAGE

SN: 10001-UP

1шт.

|2

426-15-05010

SHIM ASS'Y

SN: 10001-UP

1шт.

|2

0

SHIM¤ 0.15MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.2MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.3MM

SN: 10001-UP

6шт.

|2

0

SHIM¤ 1.0MM

SN: 10001-UP

4шт.

|2

426-15-19110

O-RING,CAGE

SN: 10001-UP

1шт.

|2

426-15-05030

SHIM ASS'Y

SN: 10001-UP

1шт.

|2

0

SHIM¤ 0.15MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.2MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.3MM

SN: 10001-UP

6шт.

|2

0

SHIM¤ 1.0MM

SN: 10001-UP

4шт.

|2

07000-05210

O-RING,CAGE

SN: 10001-UP

1шт.

|2

426-15-05020

SHIM ASS'Y

SN: 10001-UP

1шт.

|2

0

SHIM¤ 0.15MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.2MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.3MM

SN: 10001-UP

6шт.

|2

0

SHIM¤ 1.0MM

SN: 10001-UP

4шт.

|2

07000-02130

O-RING,PLATE

SN: 10001-UP

1шт.

|2

07000-05305

O-RING,CAGE

SN: 10001-UP

1шт.

|2

07000-05220

O-RING,CAGE

SN: 10001-UP

1шт.

|2

07012-10125

SEAL,OIL¤ CAGE

SN: 10001-UP

1шт.

|2

07000-05180

O-RING

SN: 10001-UP

1шт.

|2

426-15-05040

SHIM ASS'Y

SN: 10001-UP

1шт.

|2

0

SHIM¤ 0.15MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.3MM

SN: 10001-UP

4шт.

|2

0

SHIM¤ 0.5MM

SN: 10001-UP

4шт.

|2

07000-05075

O-RING,HOLDER

SN: 10001-UP

1шт.

|2

07012-10105

SEAL,OIL¤ CAGE

SN: 10001-UP

1шт.

|2

07000-05155

O-RING,CAGE

SN: 10001-UP

1шт.

3

426-15-05303

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: (3222)-UP

1шт.

|3

0

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: (1973)-(3221)

1шт.

|3

426-15-05301

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: 10001-(1972)

1шт.

|3

0

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: (10001-(1949))

1шт.

|3

07000-72021

O-RING,STOPPER

SN: 10001-UP

1шт.

|3

424-15-15931

GASKET,COVER

SN: (3222)-UP

1шт.

|3

0

GASKET,COVER

SN: 10001-(3221)

1шт.

|3

07000-72021

O-RING,COVER

SN: 10001-UP

1шт.

|3

07000-73030

O-RING,COVER

SN: 10001-UP

1шт.

|3

07000-73035

O-RING,COVER

SN: 10001-UP

1шт.

|3

07000-72015

O-RING,COVER

SN: 10001-UP

1шт.

|3

07000-71009

O-RING,PLUG

SN: 10001-UP

1шт.

|3

07000-72021

O-RING,PLATE

SN: 10001-UP

1шт.

|3

07002-03034

O-RING,PLUG

SN: 10001-UP

1шт.

|3

07000-73030

O-RING,COVER

SN: 10001-UP

2шт.

|3

428-15-15980

GASKET,VALVE BODY

SN: 10001-UP

1шт.

|3

0

GASKET,VALVE BODY

SN: (10001-(1949))

1шт.

|3

07000-73025

O-RING,TUBE

SN: 10001-UP

2шт.

|3

07002-03034

O-RING,PLUG

SN: 10001-UP

1шт.

|3

425-15-15961

GASKET,COVER

SN: (3222)-UP

1шт.

|3

0

GASKET,COVER

SN: 10001-(3221)

1шт.

|3

424-15-15921

GASKET,COVER

SN: (3222)-UP

1шт.

|3

0

GASKET,COVER

SN: 10001-(3221)

1шт.

|3

07000-72014

O-RING,FILTER

SN: 10001-UP

2шт.

|3

424-15-15993

GASKET,VALVE BODY

SN: (3222)-UP

1шт.

|3

0

GASKET,VALVE BODY

SN: 10001-(3221)

1шт.

|3

0

GASKET,VALVE BODY

SN: (10001-(1949))

1шт.

|3

07002-03034

O-RING,PLUG

SN: 10001-UP

1шт.

|3

07002-03034

O-RING,PLUG

SN: 10001-UP

1шт.

|3

426-15-15911

GASKET,VALVE BODY

SN: (1973)-UP

1шт.

|3

0

GASKET,VALVE BODY

SN: 10001-(1972)

1шт.

|3

07000-73025

O-RING,TUBE

SN: 10001-UP

2шт.

|3

424-15-17230

GASKET,BODY

SN: (1973)-UP

1шт.

|3

568-15-15880

GASKET,BODY

SN: 10001-(1972)

1шт.

|3

07000-71009

O-RING,SPOOL

SN: 10001-UP

6шт.

|3

568-15-17260

O-RING

SN: 10001-UP

1шт.

|3

07000-31006

O-RING

SN: 10001-UP

1шт.

|3

424-15-17141

GASKET,COVER

SN: (1973)-UP

1шт.

|3

424-15-17140

GASKET,COVER

SN: 10001-(1972)

1шт.

|3

424-15-17121

GASKET,BODY

SN: 10001-UP

1шт.

|3

0

GASKET,BODY

SN: (10001-(1790))

1шт.
