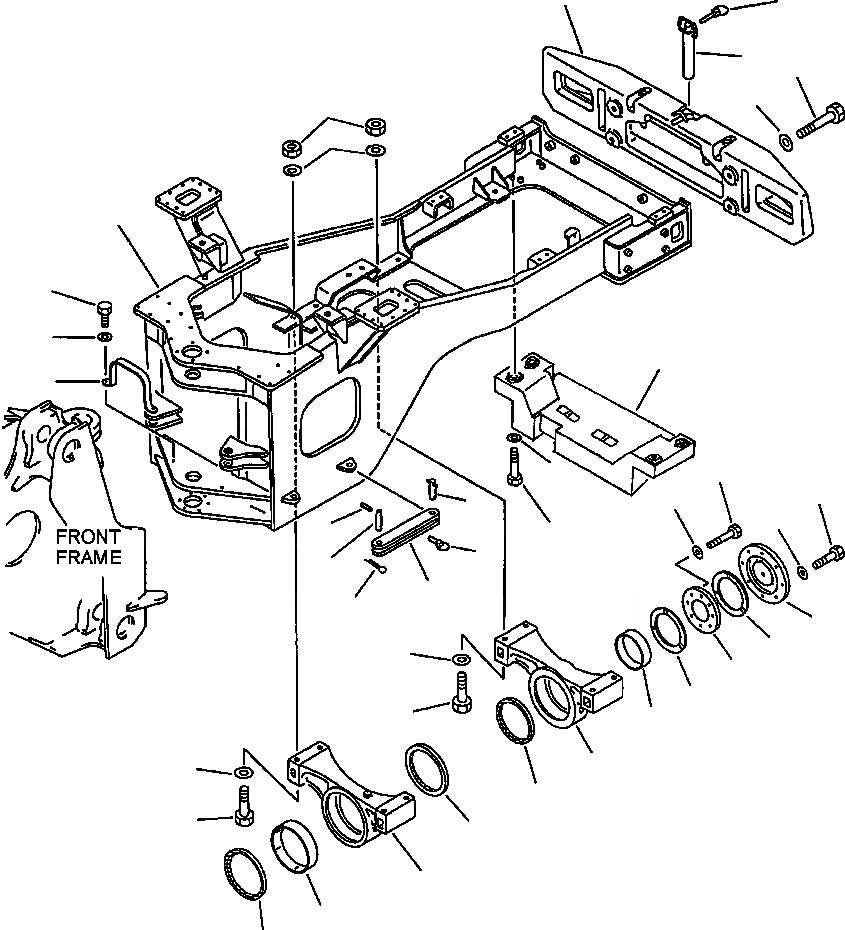

Запчасти Komatsu WA500-1LC FIG. J-A ЗАДН. РАМА ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

|$0

425-46-A1310

FRAME, REAR - REWORK

SN: A60001-UP-UP

1шт.

1

425-46-12102

FRAME, REAR

SN: A60001-UP-UP

1шт.

|$3

OR

-1шт.

1

425-875-1710

FRAME, REAR - MACHINES WITH GROUND DRIVEN STEERING

SN: A60001-UP-UP

1шт.

|$7

OR

-1шт.

1

425-974-A210

FRAME, REAR - MACHINES WITH LOGGINGCOUNTERWEIGHT AND HI-LIFT BOOM

SN: A60001-UP-UP

1шт.

|$11

OR

-1шт.

1

425-971-1230

FRAME, REAR - MACHINES WITHUNDERGUARD

SN: A60001-UP-UP

1шт.

2

425-46-12161

SUPPORT, FRONT - REAR AXLE MOUNTING

SN: A60001-UP-UP

1шт.

3

425-46-12222

BUSHING

SN: A60001-UP-UP

1шт.

4

425-46-12350

PACKING

SN: A60001-UP-UP

2шт.

5

425-46-12171

SUPPORT, REAR - AXLE MOUNTING

SN: A60001-UP-UP

1шт.

6

425-46-12232

BUSHING

SN: A60001-UP-UP

1шт.

7

425-46-12360

PACKING

SN: A60001-UP-UP

1шт.

8

425-46-12190

PLATE, THRUST

SN: A60001-UP-UP

1шт.

9

425-46-12211

WASHER, THRUST

SN: A60001-UP-UP

2шт.

10

01010-31670

BOLT - THRUST PLATE MOUNTING

SN: A60001-UP-UP

8шт.

11

01643-31645

WASHER

SN: A60001-UP-UP

8шт.

12

425-46-12180

COVER

SN: A60001-UP-UP

1шт.

13

01010-31655

BOLT - COVER MOUNTING

SN: A60001-UP-UP

8шт.

14

01643-31645

WASHER

SN: A60001-UP-UP

8шт.

15

425-46-12371

BOLT - AXLE SUPPORT MOUNTING

SN: A60001-UP-UP

8шт.

16

01643-33080

WASHER

SN: A60001-UP-UP

16шт.

17

01580-03024

NUT

SN: A60001-UP-UP

8шт.

18

425-46-13112

COUNTERWEIGHT

SN: A60001-UP-UP

1шт.

19

01011-63080

BOLT - COUNTERWEIGHT MOUNTING

SN: A60001-UP-UP

4шт.

20

01643-33080

WASHER

SN: A60001-UP-UP

4шт.

21

425-46-13121

PIN, TOW

SN: A60001-UP-UP

1шт.

22

425-46-13130

PIN, LYNCH

SN: A60001-UP-UP

1шт.

23

425-46-12392

COVER

SN: A60001-UP-UP

1шт.

24

01011-51600

BOLT - COVER MOUNTING

SN: A60001-UP-UP

4шт.

25

01643-31645

WASHER

SN: A60001-UP-UP

4шт.

26

425-46-12280

BRACKET - MACHINES WITHOUT GROUNDDRIVEN STEERING

SN: A60001-UP-UP

1шт.

|$40

OR

-1шт.

26

425-875-1680

BRACKET - MACHINES WITH GROUND DRIVEN STEERING

SN: A60001-UP-UP

1шт.

27

01010-81640

BOLT - BRACKET MOUNTING

SN: A60001-UP-UP

2шт.

28

01643-31645

WASHER

SN: A60001-UP-UP

2шт.

29

425-46-12130

BAR - FRAME LOCK

SN: A60001-UP-UP

1шт.

30

425-46-12270

PIN

SN: A60001-UP-UP

2шт.

31

04025-01065

PIN, SPRING

SN: A60001-UP-UP

1шт.

32

04050-10060

PIN, COTTER

SN: A60001-UP-UP

1шт.

33

421-46-12740

PIN, LYNCH

SN: A60001-UP-UP

1шт.

|$50

-1шт.

|$51

F1 - FOR MACHINES WITHOUT GROUND DRIVEN STEERING, LOGGING COUNTERWEIGHT, ORUNDERGUARD OPTION.

-1шт.

|$53

-1шт.

|$54

F2 - NOT USED WITH ADDITIONAL COUNTERWEIGHT.

-1шт.

|$55

-1шт.
