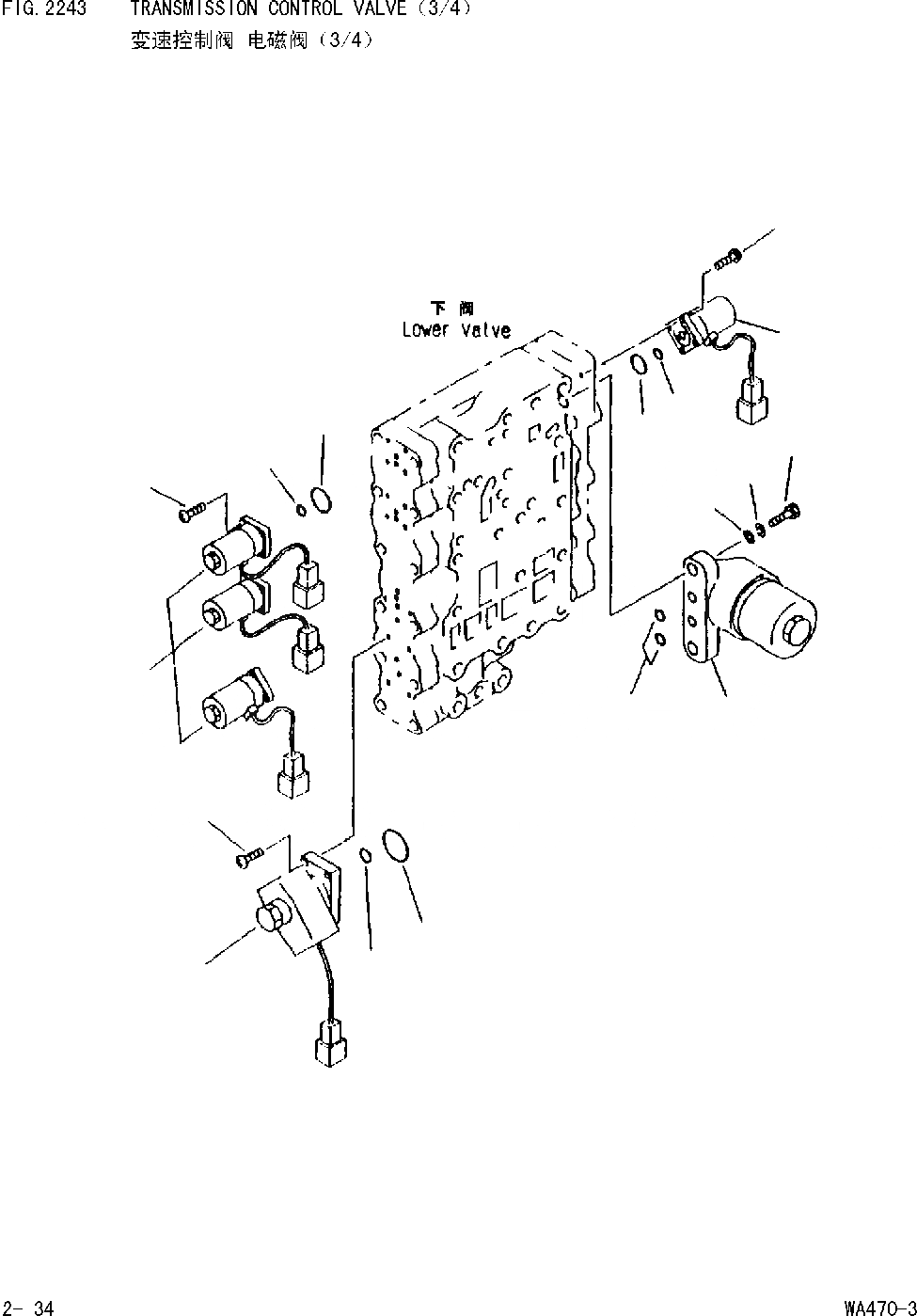

Запчасти Komatsu WA470-DZ-3 КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ(/) [ТРАНСМИССИЯ]

|$1

714-07-X0011

TRANSMISSION ASS'Y

Field_2: 20060-

1шт.

|$1

-1шт.

|$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271

-1шт.

|$1

-1шт.

|$5

714-07-17014

VALVE ASS'Y,TRANSMISSION

Field_2: 20060-

1шт.

|$1

-1шт.

|$7

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2242 TO 2244

-1шт.

|$1

-1шт.

|$9

714-07-17200

VALVE ASS'Y,LOWER

Field_2: 20001-

1шт.

|$1

-1шт.

|$11

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2242 TO 2244

-1шт.

|$1

-1шт.

1

17A-15-17271

VALVE ASS'Y,SOLENOID

Field_2: 20060-

4шт.

|$14

0

VALVE ASS'Y,SOLENOID

Field_2: 20001-20059

4шт.

2

714-10-16960

O-RING

Field_2: 20001-

1шт.

3

714-10-16970

O-RING

Field_2: 20001-

1шт.

4

01220-40412

SCREW

Field_2: 20001-

16шт.

5

714-07-16730

VALVE ASS'Y,SOLENOID

Field_2: 20001-

1шт.

6

419-15-16830

O-RING

Field_2: 20001-

1шт.

7

419-15-16840

O-RING

Field_2: 20001-

1шт.

8

01220-40416

SCREW

Field_2: 20001-

4шт.

9

419-15-16660

FILTER ASS'Y,SOLENOID

Field_2: 20001-

1шт.

|$23

419-15-16930

ELEMENT

Field_2: 20001-

1шт.

|$24

419-15-16940

HEAD

Field_2: 20001-

1шт.

|$25

419-15-16950

O-RING

Field_2: 20001-

1шт.

|$26

419-15-16960

CASE,FILTER

Field_2: 20001-

1шт.

10

07000-02014

O-RING

Field_2: 20001-

2шт.

11

01010-81035

BOLT

Field_2: 20001-

2шт.

12

01602-01030

WASHER,SPRING

Field_2: 20001-

2шт.

13

01642-21016

WASHER

Field_2: 20001-

2шт.
