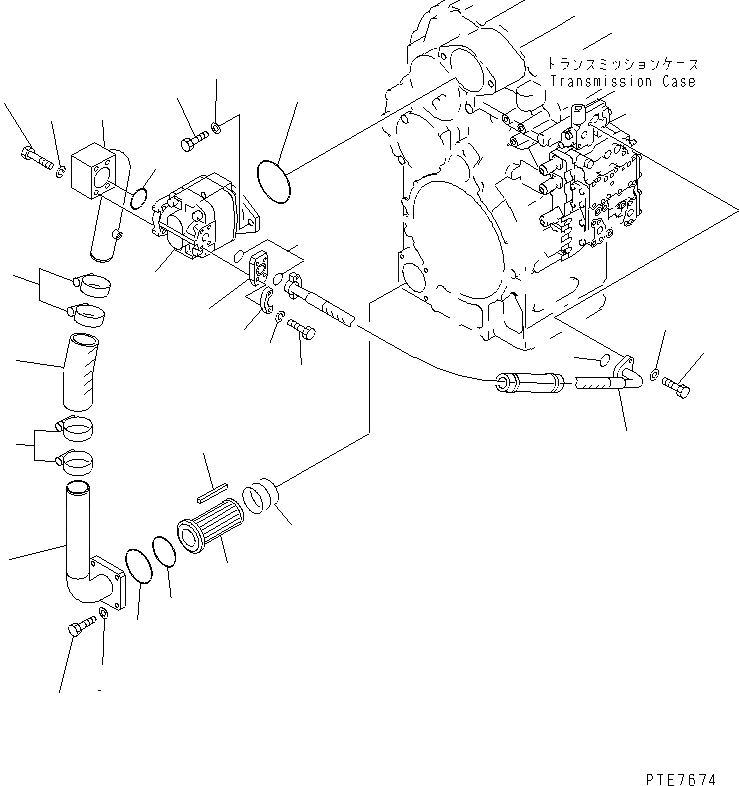

Запчасти Komatsu WA470-3 ТРАНСМИССИЯ (ГИДРОЛИНИЯ ТРАНСМИССИИ) (/) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$9

714-07-10011

TRANSMISSION ASS'Y

SN: 54001-UP

1шт.

|$10

714-07-10010

TRANSMISSION ASS'Y

SN: 53001-54000

1шт.

|$11

714-07-10051

TRANSMISSION ASS'Y

SN: 54001-UP

1шт.

|$12

714-07-10050

TRANSMISSION ASS'Y

SN: 53001-54000

1шт.

|$13

714-07-10001

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 54001-UP

1шт.

|$14

714-07-10000

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-54000

1шт.

|$15

714-07-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 54001-UP

1шт.

|$16

714-07-10040

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-54000

1шт.

|$$10

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0.

-1шт.

|$20

714-07-14522

STRAINER ASS'Y

SN: 56057-UP

1шт.

|$21

0

STRAINER ASS'Y

SN: 53001-56056

1шт.

1

714-07-14641

STRAINER

SN: 53001-UP

1шт.

2

419-15-14662

SPRING

SN: 56057-UP

1шт.

2

714-07-14652

SPRING

SN: 53001-56056

1шт.

3

417-15-14660

MAGNET

SN: 53001-UP

5шт.

4

714-07-14531

FLANGE

SN: 53001-UP

1шт.

5

07000-02100

O-RING (K3)

SN: 53001-UP

1шт.

6

07000-05085

O-RING (K3)

SN: 53001-UP

1шт.

7

01010-81240

BOLT

SN: 53001-UP

4шт.

8

01643-31232

WASHER

SN: 53001-UP

4шт.

9

07260-05820

HOSE

SN: 53001-UP

1шт.

10

07281-00909

CLAMP

SN: 53001-UP

4шт.

11

714-07-14541

TUBE

SN: 53001-UP

1шт.

12

07000-02060

O-RING (K3)

SN: 53001-UP

1шт.

13

01011-81200

BOLT

SN: 53001-UP

4шт.

14

01602-21236

WASHER,SPRING

SN: 53001-UP

4шт.

15

705-22-40070

PUMP ASS'Y (SAR100)

SN: 53001-UP

1шт.

16

07000-02130

O-RING (K3)

SN: 53001-UP

1шт.

17

01010-61645

BOLT

SN: 53001-UP

2шт.

18

01643-31645

WASHER

SN: 53001-UP

2шт.

19

714-07-14762

HOSE, 605MM

SN: 54182-UP

1шт.

19

714-07-14761

HOSE, 605MM

SN: (106810)-(107534)

1шт.

19

714-07-14760

HOSE

SN: 53001-(106809)

1шт.

20

07371-31049

FLANGE,SPLIT

SN: 53001-UP

2шт.

21

07373-11000

SPACER

SN: 53001-UP

1шт.

22

07372-01045

BOLT

SN: 53001-UP

4шт.

23

01602-21030

WASHER,SPRING

SN: 53001-UP

4шт.

24

07000-73032

O-RING (K3)

SN: 53001-UP

3шт.

25

01010-81035

BOLT

SN: 53001-UP

2шт.

26

01643-31032

WASHER

SN: 53001-UP

2шт.
