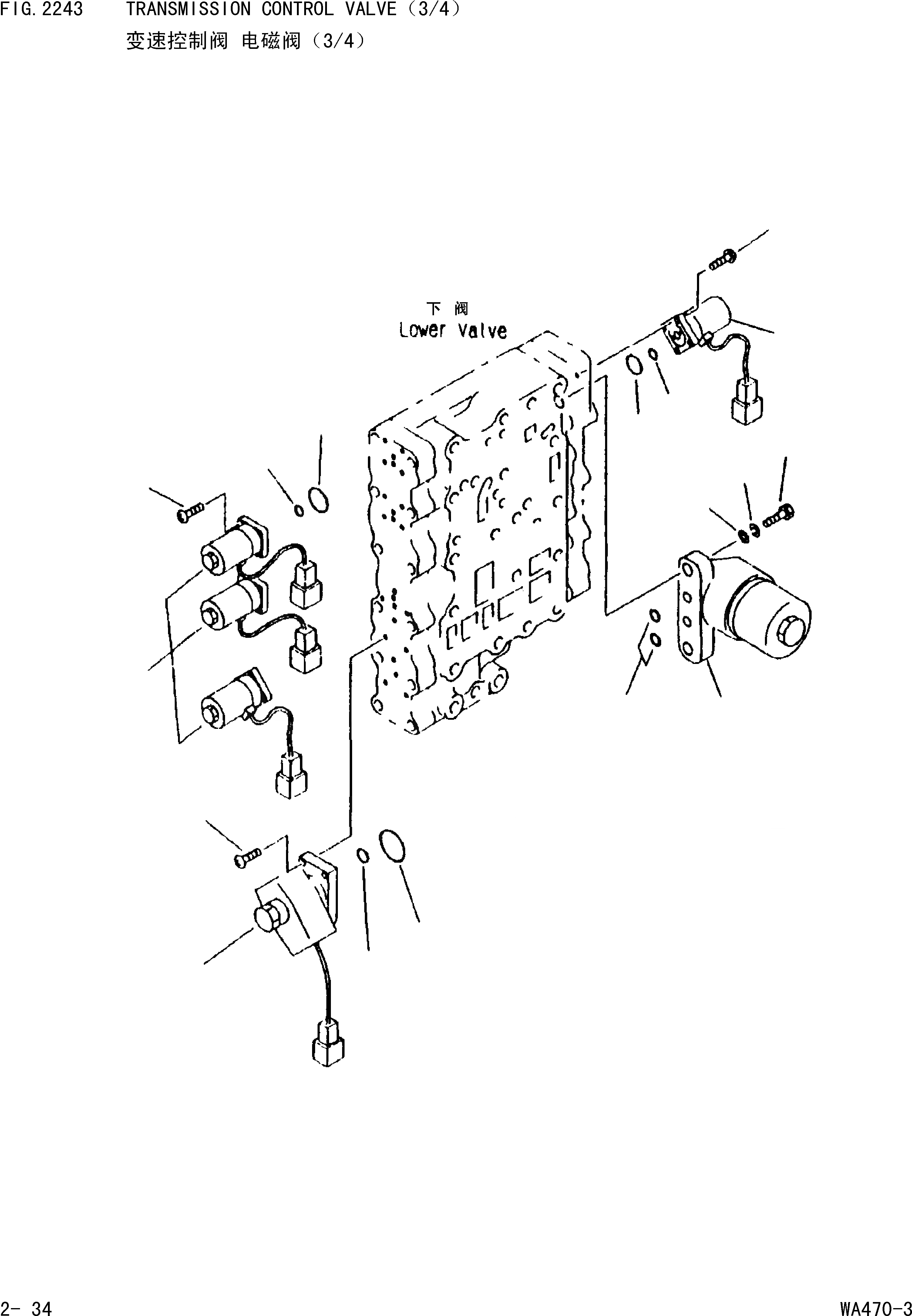

Запчасти Komatsu WA470-3 КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ(/) [ТРАНСМИССИЯ]

|$0

714-07-X0011

TRANSMISSION ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271

Field_1: 25001-

1шт.

|$1

714-07-17014

VALVE ASS'Y,TRANSMISSION THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2242 TO 2244

Field_1: 25001-

1шт.

|$2

714-07-17200

VALVE ASS'Y,LOWER THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2242 TO 2243

Field_1: 25001-

1шт.

1

17A-15-17271

VALVE ASS'Y,SOLENOID

Field_1: 25001-

4шт.

2

714-10-16960

O-RING

Field_1: 25001-

1шт.

3

714-10-16970

O-RING

Field_1: 25001-

1шт.

4

01220-40412

SCREW

Field_1: 25001-

16шт.

5

714-07-16730

VALVE ASS'Y,SOLENOID

Field_1: 25001-

1шт.

6

419-15-16830

O-RING

Field_1: 25001-

1шт.

7

419-15-16840

O-RING

Field_1: 25001-

1шт.

8

01220-40416

SCREW

Field_1: 25001-

4шт.

9

419-15-16660

FILTER ASS'Y,SOLENOID

Field_1: 25001-

1шт.

|$12

419-15-16930

ELEMENT

Field_1: 25001-

1шт.

|$13

419-15-16940

HEAD

Field_1: 25001-

1шт.

|$14

419-15-16950

O-RING

Field_1: 25001-

1шт.

|$15

419-15-16960

CASE,FILTER

Field_1: 25001-

1шт.

10

07000-02014

O-RING

Field_1: 25001-

2шт.

11

01010-81035

BOLT

Field_1: 25001-

2шт.

12

01602-01030

WASHER,SPRING

Field_1: 25001-

2шт.

13

01642-21016

WASHER

Field_1: 25001-

2шт.
