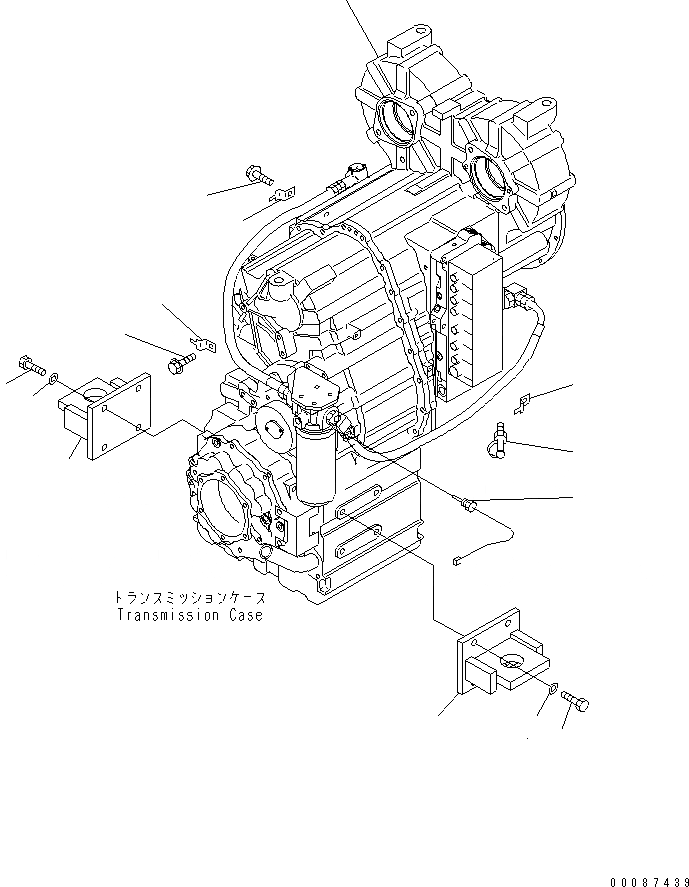

Запчасти Komatsu WA450-5L ТРАНСМИССИЯ СИЛОВАЯ ПЕРЕДАЧА

|$0

714-07-Y0001

TRANSMISSION ASS'Y

SN: A36166-UP

1шт.

|$1

714-07-Y0000

TRANSMISSION ASS'Y

SN: A36001-A36165

1шт.

|$2

714-07-Y0011

TRANSMISSION ASS'Y,(WITH LOCK-UP) (F1)

SN: A36166-UP

1шт.

|$3

714-07-Y0010

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: A36001-A36165

1шт.

1

TORQFLOW ASS'Y,(SEE FIG. F4350-01A0)

SN: A36166-UP

-1шт.

|$5

TORQFLOW ASS'Y,(SEE FIG. F4350-01A0)

SN: A36001-A36165

-1шт.

|$6

TORQFLOW ASS'Y,(SEE FIG. F4350-01A0) (F1)

SN: A36166-UP

-1шт.

|$7

TORQFLOW ASS'Y,(SEE FIG. F4350-01A0)

SN: A36001-A36165

-1шт.

2

421-01-31110

BRACKET

SN: A36001-UP

2шт.

3

01010-61650

BOLT

SN: A36001-UP

8шт.

4

01643-31645

WASHER

SN: A36001-UP

8шт.

5

7861-93-3320

SENSOR

SN: A36001-UP

1шт.

6

08193-21012

CLIP

SN: A36001-UP

3шт.

7

01435-21016

BOLT

SN: A36166-UP

1шт.

|$14

01435-01012

BOLT

SN: A36001-A36165

1шт.

8

01435-01220

BOLT

SN: A36001-UP

1шт.

9

195-49-36120

NIPPLE

SN: A36001-UP

1шт.

|$$18

(F1)

-1шт.

|$$19

4TH SPEED LOCK OUT.

-1шт.
