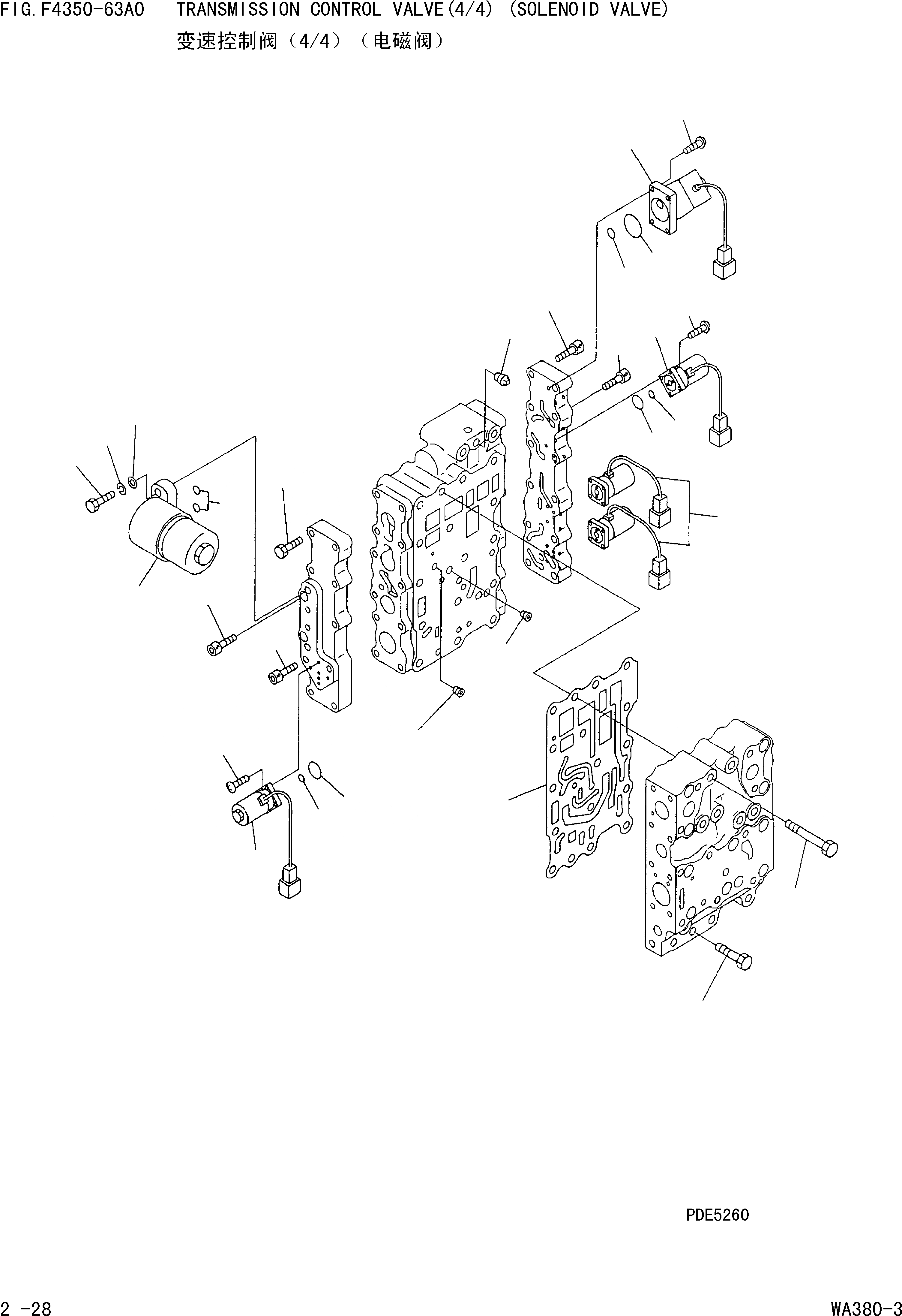

Запчасти Komatsu WA380-3 КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ(/)(СОЛЕНОИДНЫЙ КЛАПАН) [ТРАНСМИССИЯ]

|$0

SERIAL NO. IN()INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

714-12-10011

TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0

Field_1: 16001-

1шт.

|$2

714-12-17003

VALVE ASS'Y TRANSMISSION THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0

Field_1: 16001-

1шт.

|$3

714-12-17020

VALVE ASS'Y,LOWER THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-62A0 AND F4350-63A0

Field_1: 16001-

1шт.

1

17A-15-17271

SOLENOID VALVE

Field_1: 16001-

4шт.

4

714-07-16730

VALVE ASS'Y,SOLENOID

Field_1: 16001-

1шт.

5

419-15-16830

.O-RING

Field_1: 16001-

1шт.

6

419-15-16840

.O-RING

Field_1: 16001-

1шт.

7

01220-40412

SCREW

Field_1: 16001-

16шт.

8

01220-40416

SCREW

Field_1: 16001-

4шт.

9

415-15-15430

PLUG

Field_1: 16001-

1шт.

10

415-15-15470

PLUG

Field_1: 16001-

2шт.

11

01010-80835

BOLT

Field_1: 16001-

7шт.

12

01252-40845

BOLT

Field_1: 16001-

2шт.

13

01252-40835

BOLT

Field_1: 16001-

12шт.

14

01252-40825

BOLT

Field_1: 16001-

2шт.

15

07042-30108

PLUG

Field_1: 16001-

2шт.

16

419-15-16660

FILTER ASS'Y,PILOT

Field_1: 16001-

1шт.

|$18

419-15-16930

ELEMENT

Field_1: 16001-

1шт.

|$19

419-15-16940

HEAD

Field_1: 16001-

1шт.

|$20

419-15-16950

O-RING

Field_1: 16001-

1шт.

|$21

419-15-16960

CASE,FILTER

Field_1: 16001-

1шт.

17

07000-12014

O-RING

Field_1: 16001-

2шт.

18

01010-81035

BOLT

Field_1: 16001-

2шт.

19

01642-21016

WASHER

Field_1: 16001-

2шт.

20

01602-01030

WASHER SPRING

Field_1: 16001-

2шт.

21

714-07-17912

GASKET,UPPER VALVE

Field_1: 16001-

1шт.

22

01010-81070

BOLT

Field_1: 16001-

1шт.

23

01010-81045

BOLT

Field_1: 16001-

1шт.
