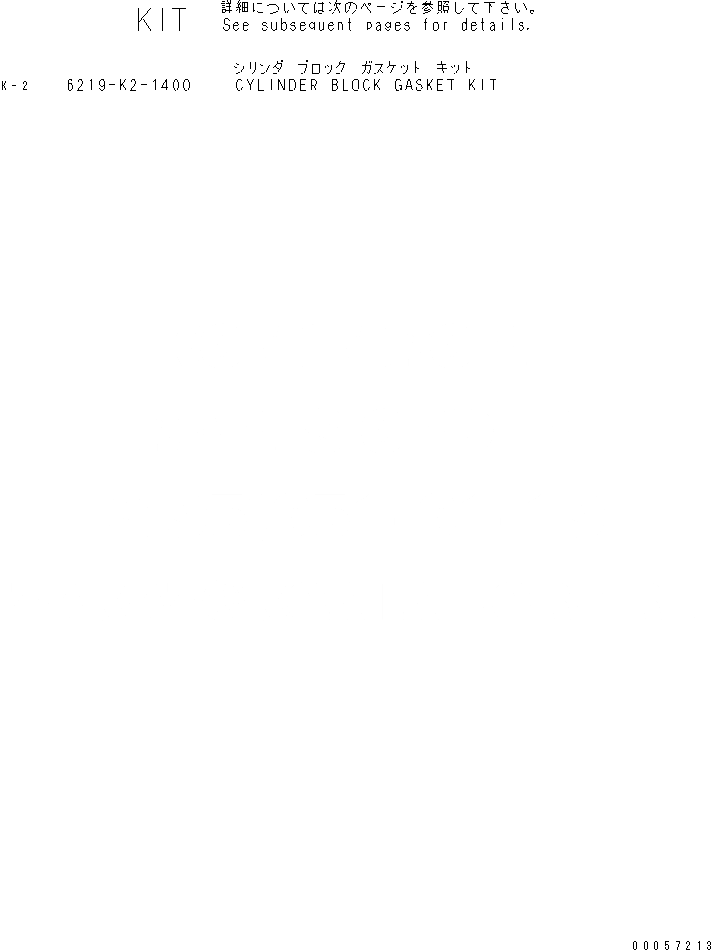

Запчасти Komatsu SAA12V140E-3E-02 КОМПЛЕКТ ПРОКЛАДОК БЛОКА ЦИЛИНДРОВ (ДЛЯ WA9-¤WA8-)(№7-) ДВИГАТЕЛЬ

2

6219-K2-1400

GASKET KIT,CYLINDER BLOCK

SN: 500076-UP

1шт.

2

02896-11009

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

8шт.

2

02896-11012

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

12шт.

2

02896-11015

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

4шт.

2

02896-11018

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

2шт.

2

07000-03050

O-RING,(SEE FIG.A2041)

SN: 500076-UP

1шт.

2

07000-72012

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07000-72016

O-RING,(SEE FIG.A6030)

SN: 500076-UP

1шт.

2

07000-72018

O-RING,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

07000-72020

O-RING,(SEE FIG.A4080)

SN: 500076-UP

2шт.

2

07000-72060

O-RING,(SEE FIG.A2041)

SN: 500076-UP

2шт.

2

07000-72100

O-RING,(SEE FIG.A2041, A4080, A6030)

SN: 500076-UP

4шт.

2

6215-61-6630

O-RING,(SEE FIG.A2011, A2110)

SN: 500207-UP

2шт.

2

07000-73025

O-RING,(SEE FIG.A2011, A2110)

SN: 500076-500206

2шт.

2

07000-73028

O-RING,(SEE FIG.A2110, A9320)

SN: 500076-UP

3шт.

2

07000-73038

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-73040

O-RING,(SEE FIG.A3110, A3310)

SN: 500076-UP

4шт.

2

07000-73042

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-73045

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-A2016

O-RING,(SEE FIG.A3310)

SN: 500076-UP

8шт.

2

07000-E2080

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07000-E3038

O-RING,(SEE FIG.A2070)

SN: 500076-UP

1шт.

2

07000-E3050

O-RING,(SEE FIG.A3010)

SN: 500076-UP

1шт.

2

07002-11423

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

6шт.

2

07002-11823

O-RING,(SEE FIG.A4110)

SN: 500076-UP

8шт.

2

07002-12434

O-RING,(SEE FIG.A2011, A4110, A4130)

SN: 500076-UP

8шт.

2

07002-21423

O-RING,(SEE FIG.A3310, A4110)

SN: 500076-UP

3шт.

2

07002-22034

O-RING,(SEE FIG.A3110, A4110)

SN: 500076-UP

3шт.

2

07002-23334

O-RING,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

07002-23634

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07005-00612

SEAL, WASHER,(SEE FIG.A4080)

SN: 500076-UP

2шт.

2

07005-01012

SEAL, WASHER,(SEE FIG.A2040, A4060)

SN: 500076-UP

10шт.

2

07005-01212

SEAL, WASHER,(SEE FIG.A4110, A4130)

SN: 500076-UP

5шт.

2

07005-01412

SEAL, WASHER,(SEE FIG.A2011 TO A5210)

SN: 500076-UP

36шт.

2

07005-02216

SEAL, WASHER,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

207-62-64740

O-RING,(SEE FIG.A9320)

SN: 500076-UP

2шт.

2

22X-62-11140

O-RING,(SEE FIG.A9320)

SN: 500076-UP

1шт.

2

6162-23-4941

GASKET,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6210-21-2230

O-RING,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-21-2240

O-RING,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-21-2270

SEAL,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-61-2520

O-RING,(SEE FIG.A3310)

SN: 500076-UP

4шт.

2

6215-21-1682

GASKET,(SEE FIG.A2011)

SN: 500076-UP

3шт.

2

6215-21-1970

GASKET,(SEE FIG.A2011)

SN: 500076-UP

1шт.

2

6215-21-3811

GASKET,(SEE FIG.A2040)

SN: 500076-UP

1шт.

2

6215-21-3820

GASKET,(SEE FIG.A2041)

SN: 500076-UP

1шт.

2

6215-21-4810

GASKET,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6215-21-5811

GASKET,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

6215-21-5820

GASKET,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

6215-21-6431

GASKET,(SEE FIG.A2060)

SN: 500076-UP

12шт.

2

6215-21-6480

GASKET,(SEE FIG.A2011)

SN: 500076-UP

2шт.

2

6215-51-1780

GASKET,(SEE FIG.A3010)

SN: 500076-UP

1шт.

2

6215-51-5490

GASKET,(SEE FIG.A3110)

SN: 500076-UP

1шт.

2

6215-61-2810

GASKET,(SEE FIG.A3310)

SN: 500076-UP

2шт.

2

6215-81-6190

GASKET,(SEE FIG.A2041, A6010)

SN: 500076-UP

2шт.

2

6215-81-9710

O-RING,(SEE FIG.A2010 TO A6030)

SN: 500076-UP

6шт.

2

6215-81-9720

O-RING,(SEE FIG.A2010 TO A4060)

SN: 500076-UP

5шт.

2

6219-21-4260

SEAL, REAR,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6219-51-5610

O-RING,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

6219-51-5620

GROMMET,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

6219-71-3280

O-RING,(SEE FIG.A4080)

SN: 500076-UP

1шт.

2

6219-81-1991

O-RING,(SEE FIG.A2011)

SN: 500076-UP

1шт.

2

6221-81-6810

GASKET,(SEE FIG.A6210)

SN: 500076-UP

2шт.

2

6245-21-3121

SEAL, FRONT,(SEE FIG.A2041)

SN: 500184-UP

1шт.

2

6245-21-3120

SEAL, FRONT,(SEE FIG.A2041)

SN: 500076-500183

1шт.

2

6251-51-9910

O-RING,(SEE FIG.A4110)

SN: 500076-UP

4шт.

2

6261-84-9740

O-RING,(SEE FIG.A2011, A4230)

SN: 500076-UP

1шт.

2

6271-81-9220

O-RING,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

ND094086-0210

O-RING,(FOR FUEL PUMP)

SN: 500076-UP

2шт.

2

6219-K2-1400

GASKET KIT,CYLINDER BLOCK

SN: 500076-UP

1шт.

2

02896-11009

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

8шт.

2

02896-11012

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

12шт.

2

02896-11015

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

4шт.

2

02896-11018

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

2шт.

2

07000-03050

O-RING,(SEE FIG.A2041)

SN: 500076-UP

1шт.

2

07000-72012

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07000-72016

O-RING,(SEE FIG.A6030)

SN: 500076-UP

1шт.

2

07000-72018

O-RING,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

07000-72020

O-RING,(SEE FIG.A4080)

SN: 500076-UP

2шт.

2

07000-72060

O-RING,(SEE FIG.A2041)

SN: 500076-UP

2шт.

2

07000-72100

O-RING,(SEE FIG.A2041, A4080, A6030)

SN: 500076-UP

4шт.

2

6215-61-6630

O-RING,(SEE FIG.A2011, A2110)

SN: 500207-UP

2шт.

2

07000-73025

O-RING,(SEE FIG.A2011, A2110)

SN: 500076-500206

2шт.

2

07000-73028

O-RING,(SEE FIG.A2110, A9320)

SN: 500076-UP

3шт.

2

07000-73038

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-73040

O-RING,(SEE FIG.A3110, A3310)

SN: 500076-UP

4шт.

2

07000-73042

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-73045

O-RING,(SEE FIG.A3110)

SN: 500076-UP

3шт.

2

07000-A2016

O-RING,(SEE FIG.A3310)

SN: 500076-UP

8шт.

2

07000-E2080

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07000-E3038

O-RING,(SEE FIG.A2070)

SN: 500076-UP

1шт.

2

07000-E3050

O-RING,(SEE FIG.A3010)

SN: 500076-UP

1шт.

2

07002-11423

O-RING,(SEE FIG.A4110, A4130)

SN: 500076-UP

6шт.

2

07002-11823

O-RING,(SEE FIG.A4110)

SN: 500076-UP

8шт.

2

07002-12434

O-RING,(SEE FIG.A2011, A4110, A4130)

SN: 500076-UP

8шт.

2

07002-21423

O-RING,(SEE FIG.A3310, A4110)

SN: 500076-UP

3шт.

2

07002-22034

O-RING,(SEE FIG.A3110, A4110)

SN: 500076-UP

3шт.

2

07002-23334

O-RING,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

07002-23634

O-RING,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

07005-00612

SEAL, WASHER,(SEE FIG.A4080)

SN: 500076-UP

2шт.

2

07005-01012

SEAL, WASHER,(SEE FIG.A2040, A4060)

SN: 500076-UP

10шт.

2

07005-01212

SEAL, WASHER,(SEE FIG.A4110, A4130)

SN: 500076-UP

5шт.

2

07005-01412

SEAL, WASHER,(SEE FIG.A2011 TO A5210)

SN: 500076-UP

36шт.

2

07005-02216

SEAL, WASHER,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

207-62-64740

O-RING,(SEE FIG.A9320)

SN: 500076-UP

2шт.

2

22X-62-11140

O-RING,(SEE FIG.A9320)

SN: 500076-UP

1шт.

2

6162-23-4941

GASKET,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6210-21-2230

O-RING,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-21-2240

O-RING,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-21-2270

SEAL,(SEE FIG.A2010)

SN: 500076-UP

12шт.

2

6210-61-2520

O-RING,(SEE FIG.A3310)

SN: 500076-UP

4шт.

2

6215-21-1682

GASKET,(SEE FIG.A2011)

SN: 500076-UP

3шт.

2

6215-21-1970

GASKET,(SEE FIG.A2011)

SN: 500076-UP

1шт.

2

6215-21-3811

GASKET,(SEE FIG.A2040)

SN: 500076-UP

1шт.

2

6215-21-3820

GASKET,(SEE FIG.A2041)

SN: 500076-UP

1шт.

2

6215-21-4810

GASKET,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6215-21-5811

GASKET,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

6215-21-5820

GASKET,(SEE FIG.A2110)

SN: 500076-UP

1шт.

2

6215-21-6431

GASKET,(SEE FIG.A2060)

SN: 500076-UP

12шт.

2

6215-21-6480

GASKET,(SEE FIG.A2011)

SN: 500076-UP

2шт.

2

6215-51-1780

GASKET,(SEE FIG.A3010)

SN: 500076-UP

1шт.

2

6215-51-5490

GASKET,(SEE FIG.A3110)

SN: 500076-UP

1шт.

2

6215-61-2810

GASKET,(SEE FIG.A3310)

SN: 500076-UP

2шт.

2

6215-81-6190

GASKET,(SEE FIG.A2041, A6010)

SN: 500076-UP

2шт.

2

6215-81-9710

O-RING,(SEE FIG.A2010 TO A6030)

SN: 500076-UP

6шт.

2

6215-81-9720

O-RING,(SEE FIG.A2010 TO A4060)

SN: 500076-UP

5шт.

2

6219-21-4260

SEAL, REAR,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

6219-51-5610

O-RING,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

6219-51-5620

GROMMET,(SEE FIG.A3110)

SN: 500076-UP

2шт.

2

6219-71-3280

O-RING,(SEE FIG.A4080)

SN: 500076-UP

1шт.

2

6219-81-1991

O-RING,(SEE FIG.A2011)

SN: 500076-UP

1шт.

2

6221-81-6810

GASKET,(SEE FIG.A6210)

SN: 500076-UP

2шт.

2

6245-21-3121

SEAL, FRONT,(SEE FIG.A2041)

SN: 500184-UP

1шт.

2

6245-21-3120

SEAL, FRONT,(SEE FIG.A2041)

SN: 500076-500183

1шт.

2

6251-51-9910

O-RING,(SEE FIG.A4110)

SN: 500076-UP

4шт.

2

6261-84-9740

O-RING,(SEE FIG.A2011, A4230)

SN: 500076-UP

1шт.

2

6271-81-9220

O-RING,(SEE FIG.A2210)

SN: 500076-UP

1шт.

2

ND094086-0210

O-RING,(FOR FUEL PUMP)

SN: 500076-UP

2шт.
