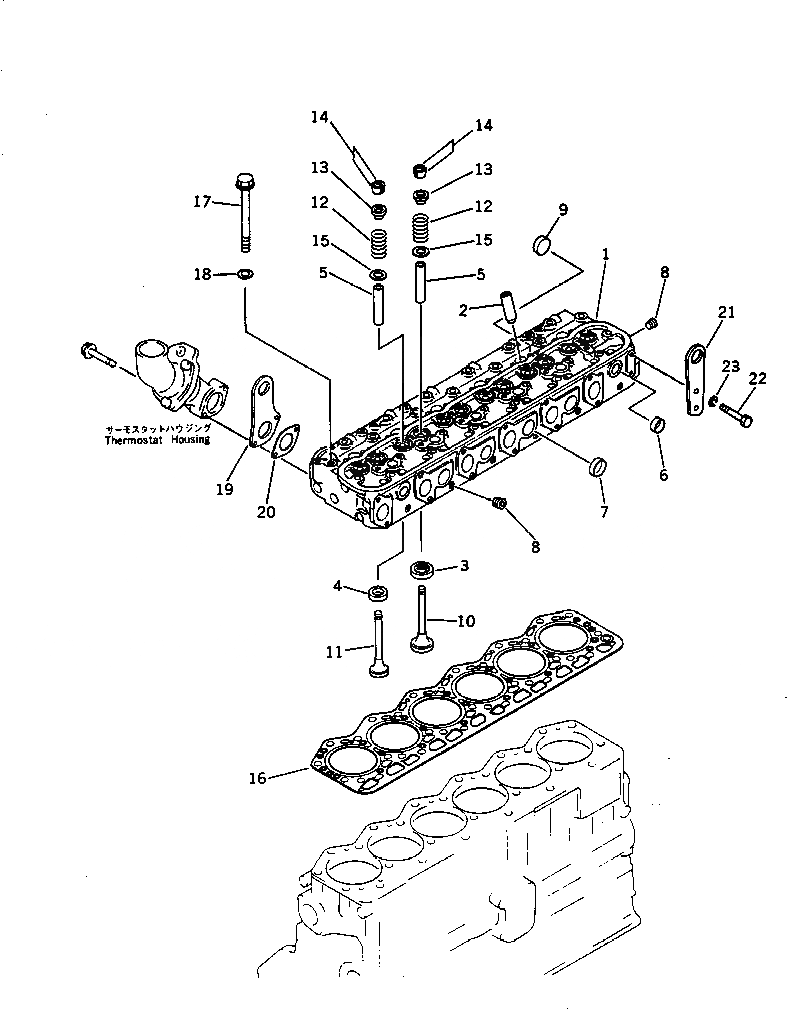

Запчасти Komatsu SA6D110-1D ГОЛОВКА ЦИЛИНДРОВ ГОЛОВКА ЦИЛИНДРОВ

|1

6138-12-1010

CYLINDER HEAD ASS'Y,WITH VALVE

SN: 50001-UP

1шт.

|1

6138-11-1021

CYLINDER HEAD A.,WITH VALVE

SN: 10350-49999

1шт.

|1

6138-12-1100

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 50001-UP

1шт.

|1

6138-11-1200

CYLINDER HEAD A.,VALVE LESS

SN: 10350-49999

1шт.

1

0

HEAD,CYLINDER

SN: 50001-UP

1шт.

|1

0

HEAD,CYLINDER

SN: 10350-49999

1шт.

2

6136-11-1130

SLEEVE,HOLDER

SN: 10350-UP

6шт.

3

6138-12-1310

SEAT,INTAKE VALVE (STD)

SN: 50001-UP

6шт.

|3

6136-11-1311

SEAT,INTAKE VALVE (STD)

SN: 10350-49999

6шт.

|3

6138-19-1310

SEAT¤ 0.25MM,INTAKE VALVE (OS)

SN: 50001-UP

6шт.

|3

6136-19-1311

SEAT¤ 0.25MM,INTAKE VALVE (OS)

SN: 10350-49999

6шт.

|3

6138-18-1310

SEAT¤ 0.50MM,INTAKE VALVE (OS)

SN: 50001-UP

6шт.

|3

6136-18-1311

SEAT¤ 0.50MM,INTAKE VALVE (OS)

SN: 10350-49999

6шт.

|3

6138-17-1310

SEAT¤ 0.75MM,INTAKE VALVE (OS)

SN: 50001-UP

6шт.

|3

6136-17-1311

SEAT¤ 0.75MM,INTAKE VALVE (OS)

SN: 10350-49999

6шт.

|3

6138-16-1310

SEAT¤ 1.00MM,INTAKE VALVE (OS)

SN: 50001-UP

6шт.

|3

6136-16-1311

SEAT¤ 1.00MM,INTAKE VALVE (OS)

SN: 10350-49999

6шт.

4

6136-12-1320

SEAT,EXHAUST VALVE (STD)

SN: 50001-UP

6шт.

|4

6136-11-1321

SEAT,EXHAUST VALVE (STD)

SN: 10350-49999

6шт.

|4

6136-19-1420

SEAT¤ 0.25MM,EXHAUST VALVE (OS)

SN: 50001-UP

6шт.

|4

6136-19-1321

SEAT¤ 0.25MM,EXHAUST VALVE (OS)

SN: 10350-49999

6шт.

|4

6136-18-1420

SEAT¤ 0.50MM,EXHAUST VALVE (OS)

SN: 50001-UP

6шт.

|4

6136-18-1321

SEAT¤ 0.50MM,EXHAUST VALVE (OS)

SN: 10350-49999

6шт.

|4

6136-17-1420

SEAT¤ 0.75MM,EXHAUST VALVE (OS)

SN: 50001-UP

6шт.

|4

6136-17-1321

SEAT¤ 0.75MM,EXHAUST VALVE (OS)

SN: 10350-49999

6шт.

|4

6136-16-1420

SEAT¤ 1.00MM,EXHAUST VALVE (OS)

SN: 50001-UP

6шт.

|4

6136-16-1321

SEAT¤ 1.00MM,EXHAUST VALVE (OS)

SN: 10350-49999

6шт.

5

6136-19-1430

GUIDE,VALVE

SN: 50001-UP

12шт.

|5

6136-19-1330

GUIDE,VALVE

SN: 10350-49999

12шт.

6

07046-42816

PLUG

SN: 10350-UP

13шт.

7

07046-44016

PLUG

SN: 10350-UP

4шт.

8

07043-50108

PLUG

SN: 50001-UP

7шт.

|8

0

PLUG

SN: 10350-49999

7шт.

9

07046-44016

PLUG

SN: 10350-UP

5шт.

10

6138-42-4110

VALVE,INTAKE

SN: 50001-UP

6шт.

|10

6138-41-4110

VALVE,INTAKE

SN: 10350-49999

6шт.

11

6136-42-4210

VALVE,EXHAUST

SN: 50001-UP

6шт.

|11

6136-41-4211

VALVE,EXHAUST

SN: 10350-49999

6шт.

12

6136-42-4410

SPRING,VALVE

SN: 50001-UP

12шт.

|12

6136-41-4410

SPRING,VALVE

SN: 10350-49999

12шт.

13

6136-42-4510

GUIDE,SPRING

SN: 50001-UP

12шт.

|13

6136-41-4510

GUIDE,SPRING

SN: 10350-49999

12шт.

14

6136-42-4520

COTTER,VALVE

SN: 50001-UP

24шт.

|14

6136-41-4520

COTTER,VALVE

SN: 10350-49999

24шт.

15

6136-41-4530

SEAT,SPRING

SN: 10350-UP

12шт.

16

6138-19-1810

GASKET,HEAD (K1)

SN: 10350-UP

1шт.

|16

0

GASKET,HEAD (K1)

SN: (10350-13793)

1шт.

17

6136-12-1610

BOLT,HEAD

SN: 10350-UP

26шт.

|17

6136-11-1610

BOLT,HEAD

SN: 10350-UP

26шт.

18

6138-11-1621

WASHER

SN: 50001-UP

26шт.

|18

0

WASHER

SN: 10350-49999

26шт.

19

6136-11-1910

HANGER,FRONT

SN: 10350-UP

1шт.

20

6136-11-1821

GASKET (K1)

SN: .-UP

1шт.

|20

0

GASKET

SN: 10350-.

1шт.

21

6136-11-1920

HANGER,REAR

SN: 50121-UP

1шт.

|21

0

HANGER,REAR

SN: 10350-50120

1шт.

22

01435-31020

BOLT

SN: 50121-UP

2шт.

|22

01010-31025

BOLT

SN: 10350-50120

2шт.

23

01602-01030

WASHER,SPRING

SN: 10350-50120

2шт.
