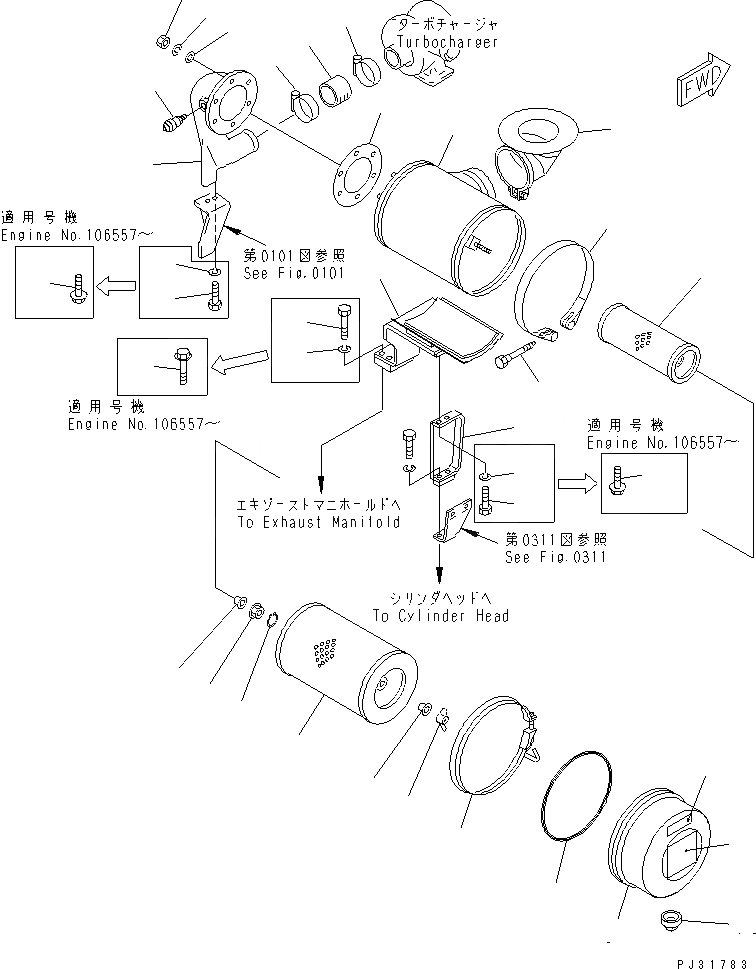

Запчасти Komatsu S6D105-1SS-CR ВОЗДУХООЧИСТИТЕЛЬ И КРЕПЛЕНИЕ ГОЛОВКА ЦИЛИНДРОВ

|$0

600-181-1300

AIR CLEANER ASS'Y

SN: 86535-UP

1шт.

1

600-181-1350

BODY

SN: 86535-UP

1шт.

|$2

6115-81-7602

ELEMENT ASS'Y

SN: 86535-UP

1шт.

2

0

ELEMENT,INNER

SN: 86535-UP

1шт.

3

600-181-7910

NUT

SN: 86535-UP

1шт.

4

600-181-7511

WASHER,SEAL

SN: 86535-UP

1шт.

|$6

600-181-2300

ELEMENT ASS'Y,OUTER

SN: 86535-UP

1шт.

5

0

ELEMENT,OUTER

SN: 86535-UP

1шт.

6

600-181-2990

NUT,WING

SN: 86535-UP

1шт.

7

600-181-4591

WASHER,SEAL

SN: 86535-UP

1шт.

8

04064-01510

RING,SNAP

SN: 86535-UP

1шт.

9

600-181-1360

COVER

SN: 86535-UP

1шт.

10

600-181-1370

VALVE

SN: 86535-UP

1шт.

11

600-181-1290

O-RING

SN: 86535-UP

1шт.

12

600-181-1280

CLAMP ASS'Y

SN: 86535-UP

1шт.

13

6136-11-4840

GASKET (K1)

SN: 89134-UP

1шт.

13

0

GASKET (K1)

SN: 86535-89133

1шт.

14

01582-01008

NUT

SN: 86535-UP

6шт.

15

01602-01030

WASHER,SPRING

SN: 86535-UP

6шт.

16

01640-21016

WASHER

SN: 86535-UP

6шт.

17

6137-11-4410

CONNECTOR

SN: 86535-UP

1шт.

18

01435-01020

BOLT

SN: 106557-UP

2шт.

18

01010-31025

BOLT

SN: 86535-106556

2шт.

19

01602-01030

WASHER,SPRING

SN: 86535-106556

2шт.

20

6131-11-4470

HOSE,AIR

SN: 93419-UP

1шт.

20

0

HOSE,AIR

SN: 86535-93418

1шт.

21

07281-00909

CLAMP

SN: 86535-UP

2шт.

22

6137-11-4610

BRACKET

SN: 86535-UP

1шт.

23

6137-11-4620

BRACKET

SN: 86535-UP

1шт.

24

01435-01050

BOLT

SN: 106557-UP

4шт.

24

01010-31055

BOLT

SN: 86535-106556

4шт.

25

01602-01030

WASHER,SPRING

SN: 86535-106556

4шт.

26

01435-01025

BOLT

SN: 106557-UP

2шт.

26

01010-31025

BOLT

SN: 86535-106556

2шт.

27

01602-01030

WASHER,SPRING

SN: 86535-106556

2шт.

28

6691-11-4610

BAND ASS'Y

SN: 86535-UP

1шт.

28

6110-11-4520

PIN

SN: 86535-UP

1шт.

28

6110-11-4530

PIN, WITH THREAD

SN: 86535-UP

1шт.

29

6643-11-4641

BOLT

SN: 86535-UP

1шт.

30

6137-11-4630

PIPE

SN: 86535-UP

1шт.

30

6137-11-4650

PIPE,(FOR FRANCE NOISE SUPPRESSION)

SN: 86535-UP

1шт.

31

08670-02001

INDICATOR,DUST

SN: 105941-UP

1шт.

31

0

INDICATOR,DUST (JAPANESE-ENGLISH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-FRENCH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-SPANISH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-INDONESIAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-GERMAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-ITALIAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (CHINESE)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-ARABIC)

SN: 86535-105940

1шт.

32

09637-02161

PLATE, INSTRUCTION,(ARABIC-ENGLISH)

SN: 86535-UP

1шт.

32

09637-05161

PLATE, INSTRUCTION,(INDONESIAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-30161

PLATE, INSTRUCTION,(ENGLISH)

SN: 86535-UP

1шт.

32

09637-30262

PLATE, INSTRUCTION,(FRENCH-ENGLISH)

SN: 86535-UP

1шт.

32

09637-40162

PLATE, INSTRUCTION,(RUSSIAN)

SN: 86535-UP

1шт.

32

09637-40261

PLATE, INSTRUCTION,(ITALIAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-70161

PLATE, INSTRUCTION,(SPANISH-ENGLISH)

SN: 86535-UP

1шт.

32

09637-81161

PLATE, INSTRUCTION,(GERMAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-90261

PLATE, INSTRUCTION,(CHINESE)

SN: 86535-UP

1шт.

33

6137-81-8860

PLATE,(PART NO.) (TBG./ABE SPEC.)

SN: 86535-UP

1шт.

|$0

600-181-1300

AIR CLEANER ASS'Y

SN: 86535-UP

1шт.

1

600-181-1350

BODY

SN: 86535-UP

1шт.

|$2

6115-81-7602

ELEMENT ASS'Y

SN: 86535-UP

1шт.

2

0

ELEMENT,INNER

SN: 86535-UP

1шт.

3

600-181-7910

NUT

SN: 86535-UP

1шт.

4

600-181-7511

WASHER,SEAL

SN: 86535-UP

1шт.

|$6

600-181-2300

ELEMENT ASS'Y,OUTER

SN: 86535-UP

1шт.

5

0

ELEMENT,OUTER

SN: 86535-UP

1шт.

6

600-181-2990

NUT,WING

SN: 86535-UP

1шт.

7

600-181-4591

WASHER,SEAL

SN: 86535-UP

1шт.

8

04064-01510

RING,SNAP

SN: 86535-UP

1шт.

9

600-181-1360

COVER

SN: 86535-UP

1шт.

10

600-181-1370

VALVE

SN: 86535-UP

1шт.

11

600-181-1290

O-RING

SN: 86535-UP

1шт.

12

600-181-1280

CLAMP ASS'Y

SN: 86535-UP

1шт.

13

6136-11-4840

GASKET (K1)

SN: 89134-UP

1шт.

13

0

GASKET (K1)

SN: 86535-89133

1шт.

14

01582-01008

NUT

SN: 86535-UP

6шт.

15

01602-01030

WASHER,SPRING

SN: 86535-UP

6шт.

16

01640-21016

WASHER

SN: 86535-UP

6шт.

17

6137-11-4410

CONNECTOR

SN: 86535-UP

1шт.

18

01435-01020

BOLT

SN: 106557-UP

2шт.

18

01010-31025

BOLT

SN: 86535-106556

2шт.

19

01602-01030

WASHER,SPRING

SN: 86535-106556

2шт.

20

6131-11-4470

HOSE,AIR

SN: 93419-UP

1шт.

20

0

HOSE,AIR

SN: 86535-93418

1шт.

21

07281-00909

CLAMP

SN: 86535-UP

2шт.

22

6137-11-4610

BRACKET

SN: 86535-UP

1шт.

23

6137-11-4620

BRACKET

SN: 86535-UP

1шт.

24

01435-01050

BOLT

SN: 106557-UP

4шт.

24

01010-31055

BOLT

SN: 86535-106556

4шт.

25

01602-01030

WASHER,SPRING

SN: 86535-106556

4шт.

26

01435-01025

BOLT

SN: 106557-UP

2шт.

26

01010-31025

BOLT

SN: 86535-106556

2шт.

27

01602-01030

WASHER,SPRING

SN: 86535-106556

2шт.

28

6691-11-4610

BAND ASS'Y

SN: 86535-UP

1шт.

28

6110-11-4520

PIN

SN: 86535-UP

1шт.

28

6110-11-4530

PIN, WITH THREAD

SN: 86535-UP

1шт.

29

6643-11-4641

BOLT

SN: 86535-UP

1шт.

30

6137-11-4630

PIPE

SN: 86535-UP

1шт.

30

6137-11-4650

PIPE,(FOR FRANCE NOISE SUPPRESSION)

SN: 86535-UP

1шт.

31

08670-02001

INDICATOR,DUST

SN: 105941-UP

1шт.

31

0

INDICATOR,DUST (JAPANESE-ENGLISH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-FRENCH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-SPANISH)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-INDONESIAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-GERMAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-ITALIAN)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (CHINESE)

SN: 86535-105940

1шт.

31

0

INDICATOR,DUST (ENGLISH-ARABIC)

SN: 86535-105940

1шт.

32

09637-02161

PLATE, INSTRUCTION,(ARABIC-ENGLISH)

SN: 86535-UP

1шт.

32

09637-05161

PLATE, INSTRUCTION,(INDONESIAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-30161

PLATE, INSTRUCTION,(ENGLISH)

SN: 86535-UP

1шт.

32

09637-30262

PLATE, INSTRUCTION,(FRENCH-ENGLISH)

SN: 86535-UP

1шт.

32

09637-40162

PLATE, INSTRUCTION,(RUSSIAN)

SN: 86535-UP

1шт.

32

09637-40261

PLATE, INSTRUCTION,(ITALIAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-70161

PLATE, INSTRUCTION,(SPANISH-ENGLISH)

SN: 86535-UP

1шт.

32

09637-81161

PLATE, INSTRUCTION,(GERMAN-ENGLISH)

SN: 86535-UP

1шт.

32

09637-90261

PLATE, INSTRUCTION,(CHINESE)

SN: 86535-UP

1шт.

33

6137-81-8860

PLATE,(PART NO.) (TBG./ABE SPEC.)

SN: 86535-UP

1шт.
