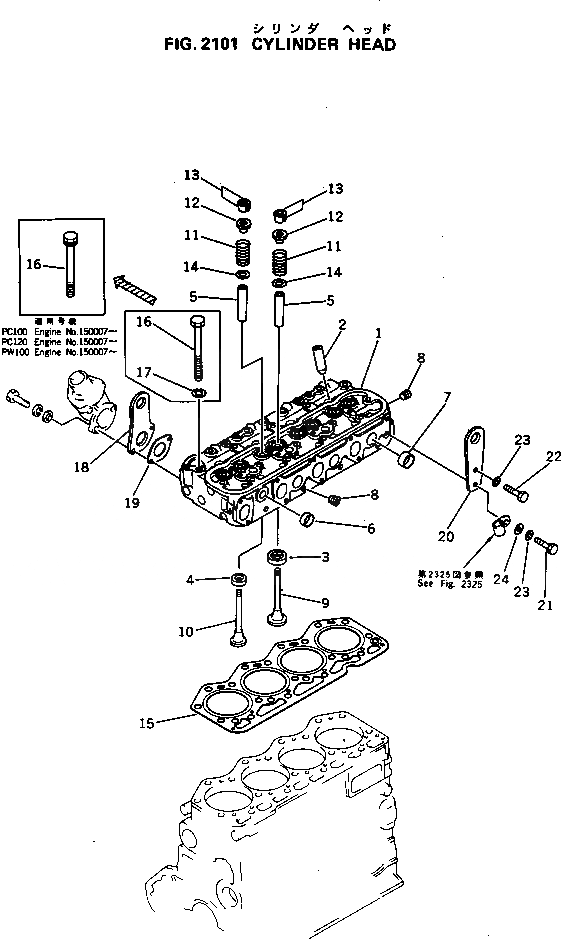

Запчасти Komatsu S4D105-5D ГОЛОВКА ЦИЛИНДРОВ ГОЛОВКА ЦИЛИНДРОВ

|$0

6135-12-1010

CYLINDER HEAD ASS'Y,WITH VALVE

SN: 150007-UP

1шт.

|$1

6135-11-1011

CYLINDER HEAD ASS'Y,WITH VALVE

SN: 104818-149999

1шт.

|$2

6135-12-1101

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 150007-UP

1шт.

|$3

6135-11-1101

CYLINDER HEAD ASS'Y,VALVE LESS

SN: 104818-149999

1шт.

1

0

HEAD,CYLINDER

SN: 150007-UP

1шт.

1

0

HEAD,CYLINDER

SN: 104818-149999

1шт.

2

6136-11-1130

SLEEVE,HOLDER

SN: 104818-UP

4шт.

3

6136-12-1310

SEAT,INTAKE VALVE (STD)

SN: 150007-UP

4шт.

3

6134-11-1310

SEAT,INTAKE VALVE (STD)

SN: 104818-149999

4шт.

3

6136-19-1410

SEAT, 0.25MM,INTAKE VALVE (OS)

SN: 150007-UP

4шт.

3

6134-19-1310

SEAT, 0.25MM,INTAKE VALVE (OS)

SN: 104818-149999

4шт.

3

6136-18-1410

SEAT, 0.50MM,INTAKE VALVE (OS)

SN: 150007-UP

4шт.

3

6134-18-1310

SEAT, 0.50MM,INTAKE VALVE (OS)

SN: 104818-149999

4шт.

3

6136-17-1410

SEAT, 0.75MM,INTAKE VALVE (OS)

SN: 150007-UP

4шт.

3

6134-17-1310

SEAT, 0.75MM,INTAKE VALVE (OS)

SN: 104818-149999

4шт.

3

6136-16-1410

SEAT, 1.00MM,INTAKE VALVE (OS)

SN: 150007-UP

4шт.

3

6134-16-1310

SEAT, 1.00MM,INTAKE VALVE (OS)

SN: 104818-149999

4шт.

4

6136-12-1320

SEAT,EXHAUST VALVE (STD)

SN: 150007-UP

4шт.

4

6134-11-1320

SEAT,EXHAUST VALVE (STD)

SN: 104818-149999

4шт.

4

6136-19-1420

SEAT, 0.25MM,EXHAUST VALVE (OS)

SN: 150007-UP

4шт.

4

6134-19-1320

SEAT, 0.25MM,EXHAUST VALVE (OS)

SN: 104818-149999

4шт.

4

6136-18-1420

SEAT, 0.50MM,EXHAUST VALVE (OS)

SN: 150007-UP

4шт.

4

6134-18-1320

SEAT, 0.50MM,EXHAUST VALVE (OS)

SN: 104818-149999

4шт.

4

6136-17-1420

SEAT, 0.75MM,EXHAUST VALVE (OS)

SN: 150007-UP

4шт.

4

6134-17-1320

SEAT, 0.75MM,EXHAUST VALVE (OS)

SN: 104818-149999

4шт.

4

6136-16-1420

SEAT, 1.00MM,EXHAUST VALVE (OS)

SN: 150007-UP

4шт.

4

6134-16-1320

SEAT, 1.00MM,EXHAUST VALVE (OS)

SN: 104818-149999

4шт.

5

0

GUIDE,VALVE

SN: 150007-UP

8шт.

5

0

GUIDE,VALVE

SN: 104818-149999

8шт.

6

07046-42816

PLUG

SN: 104818-UP

10шт.

7

07046-44016

PLUG

SN: 104818-UP

3шт.

8

07043-00108

PLUG

SN: 104818-UP

5шт.

9

6136-42-4110

VALVE,INTAKE

SN: 150007-UP

4шт.

9

6136-41-4110

VALVE,INTAKE

SN: 104818-149999

4шт.

10

6136-42-4210

VALVE,EXHAUST

SN: 150007-UP

4шт.

10

6136-41-4210

VALVE,EXHAUST

SN: 104818-149999

4шт.

11

6136-42-4410

SPRING,VALVE

SN: 150007-UP

8шт.

11

6136-41-4410

SPRING,VALVE

SN: 104818-149999

8шт.

12

6136-42-4510

GUIDE,SPRING

SN: 150007-UP

8шт.

12

6136-41-4510

GUIDE,SPRING

SN: 104818-149999

8шт.

13

6136-42-4520

COTTER,VALVE

SN: 150007-UP

16шт.

13

6136-41-4520

COTTER,VALVE

SN: 104818-149999

16шт.

14

6136-41-4530

SEAT,SPRING

SN: 104818-149999

8шт.

15

6134-11-1811

GASKET (K1)

SN: 104818-UP

1шт.

16

6136-12-1610

BOLT

SN: 150007-UP

18шт.

16

6136-11-1610

BOLT

SN: 104818-149999

18шт.

17

6138-11-1620

WASHER

SN: 104818-149999

18шт.

18

6136-11-1910

HANGER,FRONT

SN: 104818-UP

1шт.

19

6136-11-1821

GASKET (K1)

SN: 104818-UP

1шт.

20

6136-11-1910

HANGER,REAR

SN: 104818-UP

1шт.

21

01010-31030

BOLT

SN: 104818-UP

1шт.

22

01010-31025

BOLT

SN: 104818-UP

1шт.

23

01602-01030

WASHER,SPRING

SN: 104818-UP

2шт.

24

01640-01016

WASHER

SN: 104818-UP

1шт.
