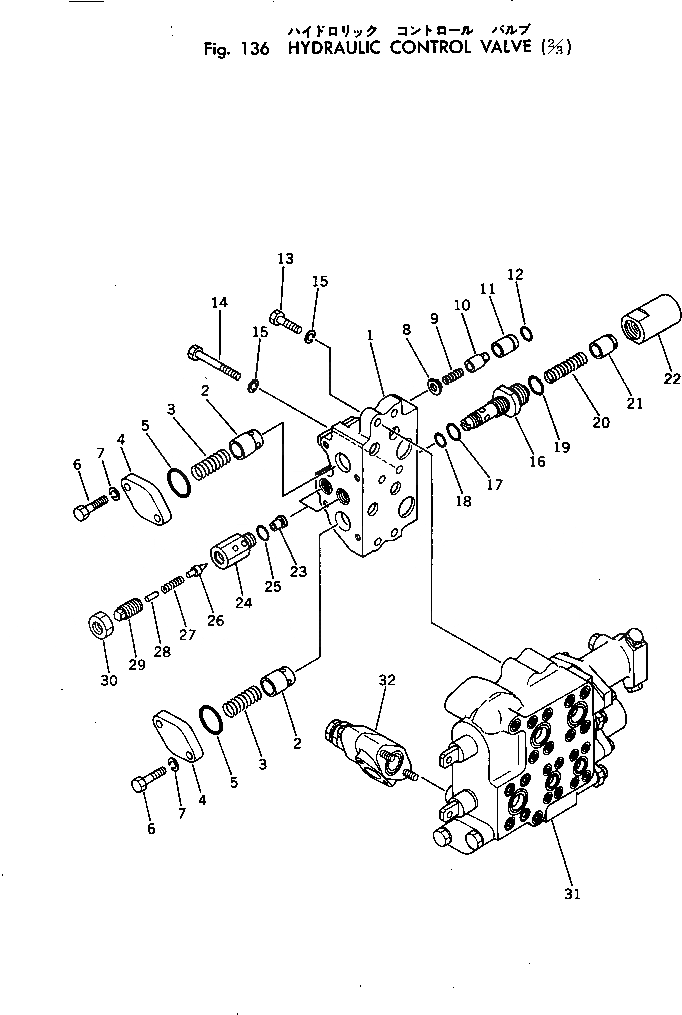

Запчасти Komatsu DDM053-1A ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/) TОБОД КОЛЕСАMING DOZER

|$0

134-Z16-5400

TANK ASS'Y

SN: (83001)-UP

1шт.

|$1

134-Z16-5300

TANK ASS'Y

SN: (80001)-(83000)

1шт.

|$2

701-23-19001

VALVE ASS'Y

SN: (80001)-UP

1шт.

|$3

701-21-64000

HOUSING ASS'Y

SN: (80001)-UP

1шт.

|$4

701-20-61510

HOUSING

SN: (80001)-UP

1шт.

2

701-30-67121

VALVE

SN: (80001)-UP

2шт.

3

701-21-31130

SPRING

SN: (80001)-UP

2шт.

4

701-20-61520

PLATE

SN: (80001)-UP

2шт.

5

07000-13038

O-RING

SN: (80001)-UP

2шт.

6

01010-31035

BOLT

SN: (80001)-UP

4шт.

7

01602-01030

WASHER

SN: (80001)-UP

4шт.

8

701-20-61240

SEAT

SN: (80001)-UP

1шт.

9

701-20-61230

SPRING

SN: (80001)-UP

1шт.

10

701-20-61220

VALVE

SN: (80001)-UP

1шт.

11

701-20-61210

COLLAR

SN: (80001)-UP

1шт.

12

07000-02018

O-RING

SN: (80001)-UP

1шт.

13

01010-31040

BOLT

SN: (80001)-UP

2шт.

14

01010-31080

BOLT

SN: (80001)-UP

4шт.

15

01602-01030

WASHER

SN: (80001)-UP

6шт.

16

701-20-61530

BAR

SN: (80001)-UP

1шт.

17

07002-12434

O-RING

SN: (80001)-UP

1шт.

18

07000-12016

O-RING

SN: (80001)-UP

1шт.

19

07002-13034

O-RING

SN: (80001)-UP

1шт.

20

701-20-63120

SPRING

SN: (80001)-UP

1шт.

21

701-21-32130

VALVE

SN: (80001)-UP

1шт.

22

701-20-61540

HOUSING

SN: (80001)-UP

1шт.

|$26

701-10-72001

VALVE ASS'Y

SN: (80001)-UP

2шт.

23

0

SEAT

SN: (80001)-UP

1шт.

24

0

BODY

SN: (80001)-UP

1шт.

25

07002-12034

O-RING

SN: (80001)-UP

1шт.

26

0

POPPET

SN: (80001)-UP

1шт.

27

0

SPRING

SN: (80001)-UP

1шт.

28

0

VALVE

SN: (80001)-UP

1шт.

29

0

PLUG

SN: (80001)-UP

1шт.

30

0

NUT

SN: (80001)-UP

1шт.

31

701-23-37000

BODY ASS'Y

SN: (80001)-UP

1шт.

32

701-20-51000

RELIEF VALVE ASS'Y

SN: (80001)-UP

1шт.
