Запчасти Komatsu D65PX-12U ТРАНСМИССИЯ КРЕПЛЕНИЕ СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$14

14Y-22-00212

POWER LINE ASS'Y,(FOR HSS)

SN: 65715-UP

1шт.

|$15

14Y-22-00210

POWER LINE ASS'Y,(FOR HSS)

SN: 65001-65714

1шт.

|$16

14X-22-00113

POWER LINE UNIT,(FOR HSS)

SN: 60884-65000

1шт.

|$17

14X-22-00223

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65753-UP

1шт.

|$18

14X-22-00222

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65715-65752

1шт.

|$19

14X-22-00220

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 65001-65714

1шт.

|$20

14X-22-00123

POWER LINE ASS'Y,(FOR CLUTCH AND BRAKE)

SN: 60884-65000

1шт.

|$21

14X-22-00253

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65P)

SN: 65753-UP

1шт.

|$22

14X-22-00252

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65P)

SN: 65715-65752

1шт.

|$23

14X-22-00250

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65P)

SN: 65001-65714

1шт.

|$24

14X-22-00153

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65P)

SN: 60884-65000

1шт.

|$25

14Y-22-00242

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65PX)

SN: 65715-UP

1шт.

|$26

14Y-22-00240

POWER LINE ASS'Y,(FOR TOWING WINCH) (D65PX)

SN: 65001-65714

1шт.

|$27

14Y-22-20100

POWER LINE ASS'Y,(EU SPEC.)

SN: 65275-UP

1шт.

|$$15

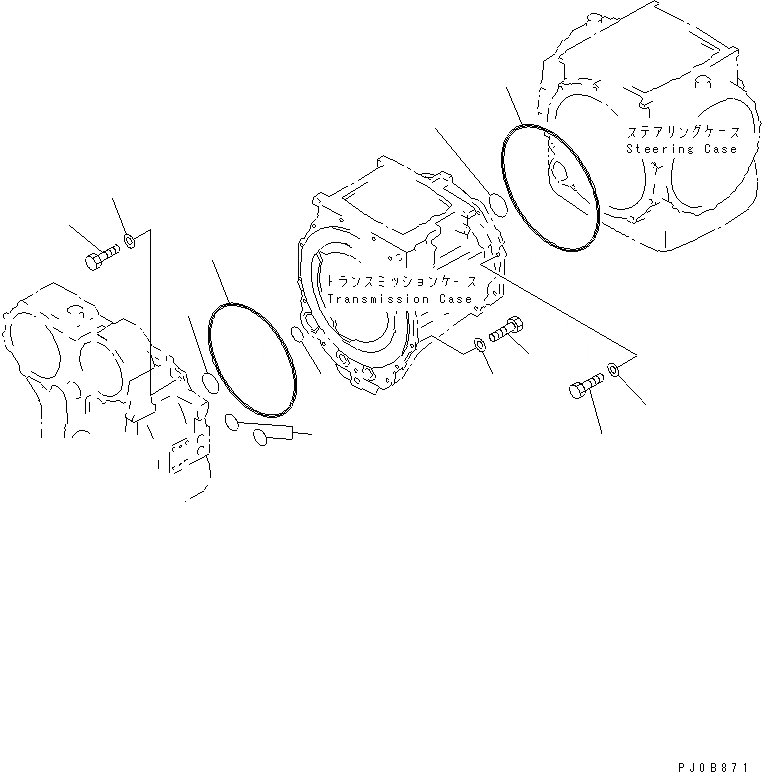

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2300-51A0A TO F2300-77A0.

-1шт.

1

01010-61650

BOLT

SN: 65001-UP

13шт.

1

01010-61650

BOLT

SN: 60884-65000

8шт.

2

01643-31645

WASHER

SN: 65001-UP

13шт.

2

01643-31645

WASHER

SN: 60884-65000

8шт.

3

07000-72075

O-RING

SN: 60884-UP

1шт.

4

07000-15380

O-RING

SN: 65001-UP

1шт.

4

07000-05440

O-RING

SN: 60884-65000

1шт.

5

01010-81235

BOLT

SN: 60884-UP

13шт.

6

01643-31232

WASHER

SN: 60884-UP

13шт.

7

07000-72075

O-RING

SN: 60884-UP

1шт.

8

568-33-11410

O-RING

SN: 60884-UP

1шт.

9

07000-72055

O-RING

SN: 60884-UP

2шт.

10

07000-73030

O-RING

SN: 60884-UP

1шт.
