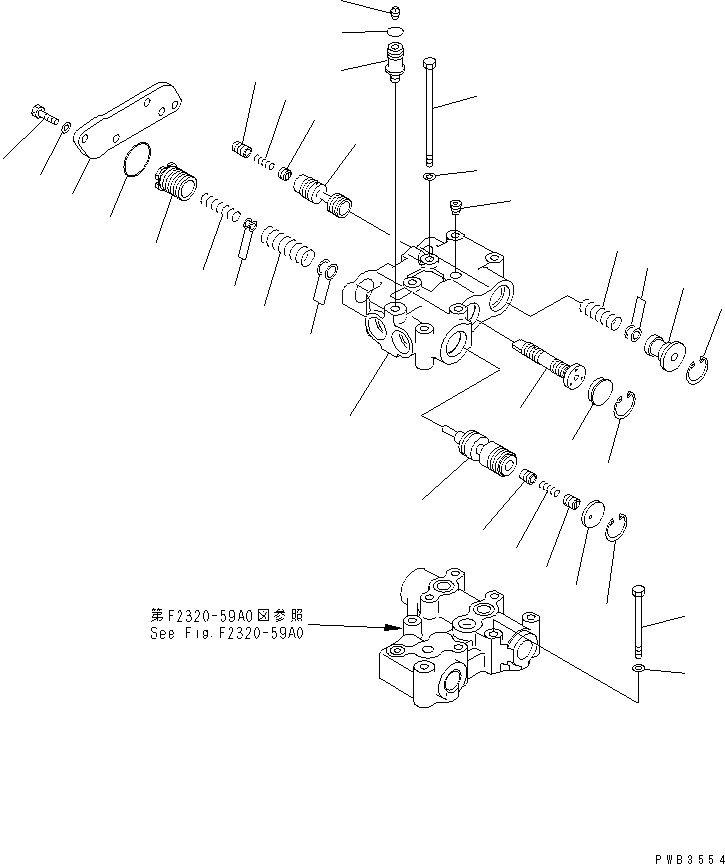

Запчасти Komatsu D375A-3-01 КЛАПАН ТРАНСМИССИИ (/) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

195-15-03012

TRANSMISSION ASS'Y,(B)

SN: 17261-UP

1шт.

|1

195-15-03011

TRANSMISSION ASS'Y

SN: 5752-17260

1шт.

|1

0

TRANSMISSION ASS'Y

SN: 17001-(5751)

1шт.

|1

195-15-51072

TRANSMISSION ASS'Y

SN: 17555-UP

1шт.

|1

195-15-51071

TRANSMISSION ASS'Y

SN: 17261-17554

1шт.

|1

195-15-51070

TRANSMISSION ASS'Y,(B)

SN: 17001-17260

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0.

-1шт.

|1

195-15-51003

TRANSMISSION ASS'Y,FOR SEVEN TRACK ROLLER

SN: 17501-UP

1шт.

|$$10

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO 55A0¤ 56A2¤ AND 57A0 TO 62A0.

-1шт.

|1

195-15-03510

CONTROL VALVE ASS'Y

SN: 17001-UP

1шт.

|$$12

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-59A0 AND F2320-60A0.

-1шт.

1

17M-15-25110

BODY

SN: 17001-UP

1шт.

2

07043-00312

PLUG

SN: 17001-UP

1шт.

3

145-15-45810

COVER

SN: 17001-UP

1шт.

4

07000-73045

O-RING (K4)

SN: 17001-UP

1шт.

5

01010-81025

BOLT

SN: 17001-UP

4шт.

6

01643-31032

WASHER

SN: 17001-UP

4шт.

7

17M-15-25221

SPOOL

SN: 17001-UP

1шт.

8

04065-03815

RING

SN: 17001-UP

3шт.

9

17M-15-25240

STOPPER

SN: 17001-UP

1шт.

10

175-15-15550

VALVE

SN: 17001-UP

1шт.

11

180-14-25560

SPRING

SN: 17001-UP

2шт.

12

195-15-15130

VALVE

SN: 17001-UP

1шт.

13

195-15-55270

VALVE

SN: 17001-UP

1шт.

14

195-15-55310

SPRING

SN: 17001-UP

1шт.

15

145-15-45320

SPRING

SN: 17001-UP

1шт.

16

281-15-15480

SHIM¤ 0.5MM

SN: 17001-UP

5шт.

17

175-15-56470

SHIM¤ 0.50MM

SN: 17001-UP

4шт.

18

195-15-55260

VALVE

SN: 17001-UP

1шт.

19

145-15-45420

STOPPER

SN: 17001-UP

1шт.

20

175-15-45381

VALVE

SN: 17001-UP

1шт.

21

568-15-15570

VALVE

SN: 17001-UP

1шт.

22

198-15-15760

VALVE

SN: 17001-UP

1шт.

23

17M-15-25390

RETAINER

SN: 17001-UP

1шт.

24

154-15-45510

SPRING

SN: 17001-UP

1шт.

25

103-15-15480

SHIM¤ 0.5MM

SN: 17001-UP

5шт.

26

17M-15-25830

PLUG

SN: 17001-UP

1шт.

27

07000-72018

O-RING (K5)

SN: 17001-UP

1шт.

28

07042-20108

PLUG

SN: 17001-UP

1шт.

29

01011-81065

BOLT

SN: 17001-UP

3шт.

30

01011-81005

BOLT

SN: 17001-UP

1шт.

31

01643-31032

WASHER

SN: 17001-UP

4шт.
