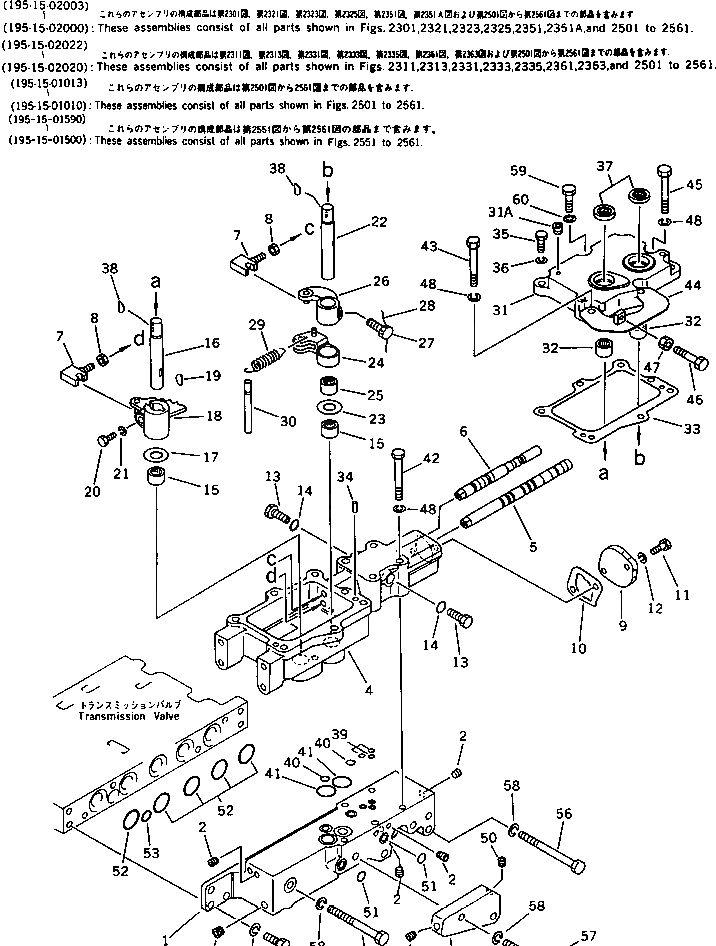

Запчасти Komatsu D375A-1 РУЧН. SELECT КЛАПАН ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|1

195-15-02003

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01254)-15465

1шт.

|1

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: (01194)-(01253)

1шт.

|1

0

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15005-(01193)

1шт.

|1

195-15-02000

TORQFLOW ASS'Y,(WITHOUT LOCK-UP)

SN: 15001-15004

1шт.

|1

195-15-02022

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01060)-(01110)

1шт.

|1

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: (01009)-(01059)

1шт.

|1

0

TORQFLOW ASS'Y,(WITH LOCK-UP)

SN: 15001-(01008)

1шт.

|1

195-15-01013

TRANSMISSION ASS'Y

SN: (03612)-UP

1шт.

|1

0

TRANSMISSION ASS'Y

SN: 15466-(03611)

1шт.

|1

0

TRANSMISSION ASS'Y

SN: (02437)-15465

1шт.

|1

0

TRANSMISSION ASS'Y

SN: 15001-(02436)

1шт.

|1

195-15-01590

CONTROL VALVE A.

SN: 15466-UP

1шт.

|1

195-15-01501

CONTROL VALVE A.

SN: (01184)-15465

1шт.

|1

0

CONTROL VALVE A.

SN: 15001-(01183)

1шт.

|1

195-15-01510

VALVE ASS'Y

SN: 15001-UP

1шт.

|1

195-15-01550

SEAT ASS'Y

SN: 15001-UP

1шт.

1

0

SEAT

SN: 15001-UP

1шт.

2

07043-00108

PLUG

SN: 15001-UP

7шт.

3

07043-00211

PLUG

SN: 15001-UP

2шт.

4

195-15-38110

BODY

SN: 15001-UP

1шт.

5

195-15-38140

SPOOL

SN: 15001-UP

1шт.

6

195-15-38150

SPOOL

SN: 15001-UP

1шт.

7

09363-00850

YOKE

SN: 15001-UP

2шт.

8

01580-10806

NUT

SN: 15001-UP

2шт.

9

195-15-38820

COVER

SN: 15001-UP

1шт.

10

195-15-38920

GASKET (KIT)

SN: 15001-UP

1шт.

11

01010-51025

BOLT

SN: 15001-UP

2шт.

12

01602-21030

WASHER,SPRING

SN: 15001-UP

2шт.

13

195-15-38710

DETENT ASS'Y

SN: 15001-UP

2шт.

14

07002-01223

O-RING (KIT)

SN: 15001-UP

2шт.

15

06120-01816

BEARING,NEEDLE

SN: 15001-UP

2шт.

16

195-15-38651

SHAFT

SN: 15001-UP

1шт.

17

01640-21826

WASHER

SN: 15001-UP

1шт.

18

195-15-38610

LEVER

SN: 15001-UP

1шт.

19

04010-00519

KEY

SN: 15001-UP

1шт.

20

01010-50825

BOLT

SN: 15001-UP

1шт.

21

01602-20825

WASHER,SPRING

SN: 15001-UP

1шт.

22

195-15-38661

SHAFT

SN: 15001-UP

1шт.

23

01640-21826

WASHER

SN: 15001-UP

1шт.

24

195-15-38630

LEVER ASS'Y

SN: 15001-UP

1шт.

25

06120-01816

BEARING,NEEDLE

SN: 15001-UP

1шт.

26

195-15-38620

LEVER

SN: 15001-UP

1шт.

27

195-15-38560

BOLT

SN: 15001-UP

1шт.

28

04059-01010

WIRE,LOCK (KIT)

SN: 15001-UP

1шт.

29

195-15-38751

SPRING

SN: 15001-UP

1шт.

30

195-15-38550

PIN

SN: 15001-UP

1шт.

|31

195-15-01570

COVER ASS'Y

SN: 15001-UP

1шт.

31

0

COVER

SN: 15001-UP

1шт.

31A

07043-00211

PLUG

SN: 15001-UP

1шт.

32

06120-01816

BEARING,NEEDLE

SN: 15001-UP

2шт.

33

195-15-38910

GASKET (KIT)

SN: 15001-UP

1шт.

34

04020-00820

PIN,DOWEL

SN: 15001-UP

2шт.

35

01010-51030

BOLT

SN: 15001-UP

4шт.

36

01602-21030

WASHER,SPRING

SN: 15001-UP

4шт.

37

566-15-15850

SEAL,OIL (KIT)

SN: 15001-UP

2шт.

38

04010-00519

KEY

SN: 15001-UP

2шт.

39

07000-71007

O-RING (KIT)

SN: 15001-UP

3шт.

40

07000-72014

O-RING (KIT)

SN: 15001-UP

2шт.

41

07000-72020

O-RING (KIT)

SN: 15001-UP

2шт.

42

01010-51070

BOLT

SN: 15001-UP

4шт.

43

01010-51080

BOLT

SN: 15001-UP

1шт.

44

195-15-38340

BRACKET

SN: 15001-UP

1шт.

45

01010-51080

BOLT

SN: 15001-UP

1шт.

46

01016-51060

BOLT

SN: 15001-UP

1шт.

47

01580-11008

NUT

SN: 15001-UP

1шт.

48

01602-21030

WASHER,SPRING

SN: 15001-UP

5шт.

|49

195-15-01560

COVER ASS'Y

SN: 15001-UP

1шт.

49

0

COVER

SN: 15001-UP

1шт.

50

07043-00108

PLUG

SN: 15001-UP

2шт.

51

07000-72014

O-RING (KIT)

SN: 15001-UP

2шт.

52

07000-73028

O-RING (KIT)

SN: 15001-UP

5шт.

53

07000-72018

O-RING (KIT)

SN: 15001-UP

1шт.

54

01010-51030

BOLT

SN: 15001-UP

3шт.

55

01010-51090

BOLT

SN: 15001-UP

1шт.

56

01011-51005

BOLT

SN: 15001-UP

3шт.

57

01011-51025

BOLT

SN: 15001-UP

2шт.

58

01602-21030

WASHER,SPRING

SN: 15001-UP

9шт.

59

01010-51040

BOLT

SN: 15001-UP

2шт.

60

01643-31032

WASHER

SN: 15001-UP

2шт.
