|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
1
17M-13-05060

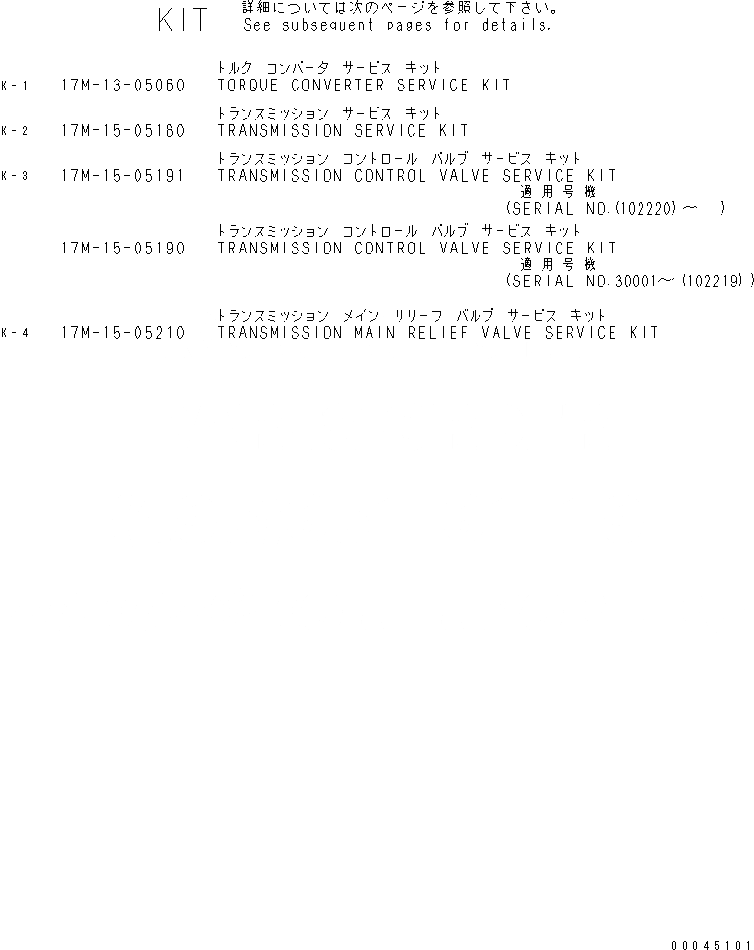

SERVICE KIT,TORQUE CONVERTER
SN: 30001-UP
1шт.
1
07000-72010
O-RING,(F2310-56C0 -9 )
SN: 30001-UP
2шт.
1
07000-72010
O-RING,(F2310-57C0 -15 )
SN: 30001-UP
1шт.
1
07000-72018
O-RING,(F2310-53C0 -9 )
SN: 30001-UP
1шт.
1
07000-72021
O-RING,(F2310-53C0 -10 )
SN: 30001-UP
1шт.
1
07000-72095
O-RING,(F2310-54C0 -2 )
SN: 30001-UP
1шт.
1
07000-73022
O-RING,(F2310-58C0 -8 )
SN: 30001-UP
1шт.
1
07000-73030
O-RING,(F2310-56C0 -16 )
SN: 30001-UP
2шт.
1
07000-73030
O-RING,(F2310-57C0 -14 )
SN: 30001-UP
1шт.
1
07000-73035
O-RING,(F2310-53C0 -12 )
SN: 30001-UP
2шт.
1
07000-73038
O-RING,(F2310-53C0 -13 )
SN: 30001-UP
2шт.
1
07000-73038
O-RING,(F2310-56C0 -8 )
SN: 30001-UP
2шт.
1
07000-75175
O-RING,(F2310-53C0 -16 )
SN: 30001-UP
1шт.
1
07000-75210
O-RING,(F2310-54C0 -21 )
SN: 30001-UP
1шт.
1
07000-75260
O-RING,(F2310-55C0 -6 )
SN: 30001-UP
1шт.
1
07002-22034
O-RING,(F2310-57C0 -9 )
SN: 30001-UP
1шт.
1
07002-63034
O-RING,(F2310-57C0 -13 )
SN: 30001-UP
1шт.
1
07005-01612
GASKET,(F2310-54C0 -10 )
SN: 30001-UP
8шт.
1
07005-01612
GASKET,(F2310-54C0 -16 )
SN: 30001-UP
4шт.
1
07012-60120
SEAL,(F2310-53C0 -18 )
SN: 30001-UP
1шт.
1
07018-30904
RING,(F2310-51C0 -21 )
SN: 30001-UP
1шт.
1
113-15-12870
RING,(F2310-51C0 -35 )
SN: 30001-UP
1шт.
1
155-15-12820
RING,(F2310-52C0 -11 )
SN: 30001-UP
2шт.
1
17M-13-22730
SEAL,(F2310-53C0 -19 )
SN: 30001-UP
1шт.
1
17M-13-46210
GASKET,(F2310-58C0 -6 )
SN: 30001-UP
1шт.
1
195-13-12711
RING,(F2310-51C0 -16 )
SN: 30001-UP
1шт.
1
567-15-12830
RING,(F2310-52C0 -12 )
SN: 30001-UP
2шт.
1
568-15-12850
RING,(F2310-51C0 -34 )
SN: 30001-UP
1шт.
1
711-66-14270
SHIM, 0.15MM,(F2310-53C0 -22 )
SN: 30001-UP
6шт.
1
711-66-14280
SHIM, 0.2MM,(F2310-53C0 -22- )
SN: 30001-UP
6шт.
1
711-66-14290
SHIM, 0.5MM,(F2310-53C0 -22- )
SN: 30001-UP
4шт.
1
711-66-16920
GASKET,(F2310-58C0 -5 )
SN: 30001-UP
1шт.
2
17M-15-05180
SERVICE KIT,TRANSMISSION
SN: 30001-UP
1шт.
2
07000-72014
O-RING,(F2320-57C0 -13 )
SN: 30001-UP
1шт.
2
07000-72014
O-RING,(F2320-57C0 -20 )
SN: 30001-UP
1шт.
2
07000-72020
O-RING,(F2320-51C0 -17 )
SN: 30001-UP
1шт.
2
07000-72055
O-RING,(F2320-57C0 -32 )
SN: 30001-UP
2шт.
2
07000-72085
O-RING,(F2320-57C0 -31 )
SN: 30001-UP
1шт.
2
07000-73022
O-RING,(F2320-57C0 -19 )
SN: 30001-UP
1шт.
2
07000-73025
O-RING,(F2320-57C0 -14 )
SN: 30001-UP
1шт.
2
07000-73025
O-RING,(F2320-57C0 -22 )
SN: 30001-UP
1шт.
2
07000-73028
O-RING,(F2320-57C0 -8 )
SN: 30001-UP
1шт.
2
07000-73030
O-RING,(F2320-52C0 -19 )
SN: 30001-UP
3шт.
2
07000-73030
O-RING,(F2320-57C0 -7 )
SN: 30001-UP
1шт.
2
07000-73030
O-RING,(F2320-57C0 -23 )
SN: 30001-UP
1шт.
2
07000-73032
O-RING,(F2320-57C0 -24 )
SN: 30001-UP
1шт.
2
07000-73035
O-RING,(F2320-52C0 -20 )
SN: 30001-UP
1шт.
2
07000-73038
O-RING,(F2320-57C0 -33 )
SN: 30001-UP
1шт.
2
07000-73045
O-RING,(F2320-57C0 -34 )
SN: 30001-UP
1шт.
2
144-15-22881
RING,(F2320-51C0 -14 )
SN: 30001-UP
1шт.
2
144-15-22881
RING,(F2320-53C0 -3 )
SN: 30001-UP
1шт.
2
17A-15-25911
GASKET,(F2320-63C0 -2 )
SN: 30001-UP
1шт.
2
17M-15-45980
O-RING,(F2320-57C0 -30 )
SN: 30001-UP
1шт.
2
195-15-71230
GASKET,(F2320-63C0 -9 )
SN: 30001-UP
1шт.
2
425-15-19250
RING,(F2320-51C0 -24 )
SN: 30001-UP
1шт.
2
562-15-19230
RING,(F2320-51C0 -3 )
SN: 30001-UP
1шт.
2
562-15-19230
RING,(F2320-52C0 -5 )
SN: 30001-UP
1шт.
2
566-15-79260
RING,(F2320-51C0 -5 )
SN: 30001-UP
1шт.
2
566-15-79260
RING,(F2320-51C0 -26 )
SN: 30001-UP
1шт.
2
568-15-12830
RING,(F2320-51C0 -16 )
SN: 30001-UP
1шт.
2
568-15-12830
RING,(F2320-53C0 -5 )
SN: 30001-UP
1шт.
2
568-15-12840
RING,(F2320-52C0 -7 )
SN: 30001-UP
1шт.
3
17M-15-05191
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (102220)-UP
1шт.
3
17M-15-05190
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 30001-(102219)
1шт.
3
07000-72014
O-RING,(F2320-59C0 -11 )
SN: (102220)-UP
2шт.
3
07000-72015
O-RING,(F2320-59C0 -11- )
SN: 30001-(102219)
2шт.
3
07000-72016
O-RING,(F2320-59C0 -5 )
SN: 30001-UP
5шт.
3
07002-61823
O-RING,(F2320-59C0 -6 )
SN: 30001-UP
5шт.
3
195-15-75531
GASKET,(F2320-59C0 -1 )
SN: 30001-UP
1шт.
3
195-15-75740
O-RING,(F2320-59C0 -15 )
SN: 30001-UP
1шт.
3
154-15-65590
O-RING,(F2320-59C0 -9 )
SN: (102220)-UP
1шт.
3
209-38-12480
O-RING,(F2320-59C0 -9- )
SN: 30001-(102219)
1шт.
3
209-38-12490
RING,(F2320-59C0 -10 )
SN: 30001-(102219)
1шт.
4
17M-15-05210
SERVICE KIT,TRANSMISSION MAIN RELIEF VALVE
SN: 30001-UP
1шт.
4
07000-73030
O-RING,(F2320-62C0 -26 )
SN: 30001-UP
5шт.
4
07002-61023
O-RING,(F2320-62C0 -3 )
SN: 30001-UP
1шт.
4
07002-63034
O-RING,(F2320-62C0 -5 )
SN: 30001-UP
1шт.
4
07002-63034
O-RING,(F2320-62C0 -14 )
SN: 30001-UP
1шт.
4
07002-63034
O-RING,(F2320-62C0 -23 )
SN: 30001-UP
2шт.
