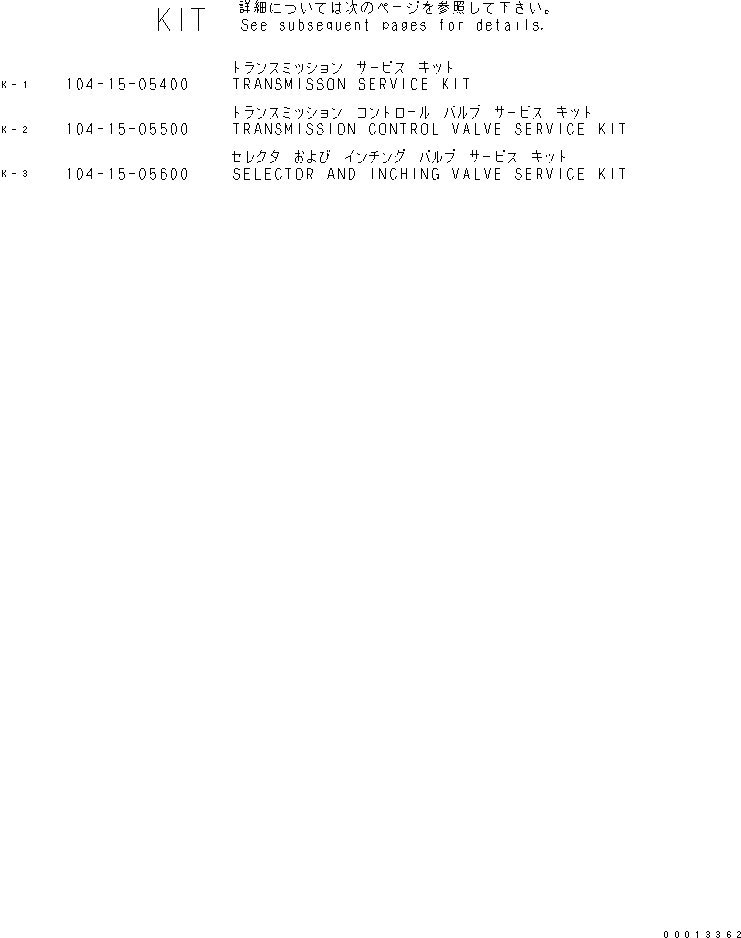

1
104-15-05400
SERVICE KIT,TRANSMISSION
SN: 83001-UP
1шт.
|1
01653-21012
WASHER,(F2320-63A2 -13 )
SN: 83001-UP
1шт.
|1
07000-01008
O-RING,(F2320-53A2 -38 )
SN: 83001-UP
5шт.
|1
07000-02095
O-RING,(F2320-56A2 -16 )
SN: 83001-UP
2шт.
|1
07000-02105
O-RING,(F2320-51A2 -2 )
SN: 83001-UP
1шт.
|1
07000-03022
O-RING,(F2320-59A2 -6 )
SN: 83001-UP
2шт.
|1
07000-05220
O-RING,(F2320-01A1 -10 )
SN: 83001-UP
1шт.
|1
07000-05270
O-RING,(F2320-52A2 -4 )
SN: 83001-UP
1шт.
|1
07000-05270
O-RING,(F2320-52A2 -9 )
SN: 83001-UP
1шт.
|1
07000-22055
O-RING,(F2320-63A2 -9 )
SN: 83001-UP
1шт.
|1
07000-72010
O-RING,(F2320-52A2 -12 )
SN: 83001-UP
6шт.
|1
07000-72012
O-RING,(F2320-52A2 -11 )
SN: 83001-UP
6шт.
|1
07000-73025
O-RING,(F2320-01A1 -8 )
SN: 83001-UP
1шт.
|1
07000-73025
O-RING,(F2320-63A2 -8 )
SN: 83001-UP
1шт.
|1
07000-73028
O-RING,(F2320-56A2 -21 )
SN: 83001-UP
2шт.
|1
07002-02434
O-RING,(F2320-56A2 -5 )
SN: 83001-UP
1шт.
|1
07011-10058
SEAL,(F2320-53A2 -34 )
SN: 83001-UP
1шт.
|1
07012-10065
SEAL,(F2320-63A2 -7 )
SN: 83001-UP
1шт.
|1
103-15-29260
SEAL,(F2320-51A2 -13 )
SN: 83001-UP
1шт.
|1
103-15-29260
SEAL,(F2320-52A2 -7 )
SN: 83001-UP
1шт.
|1
103-15-29270
SEAL,(F2320-51A2 -14 )
SN: 83001-UP
1шт.
|1
113-15-21121
GASKET,(F2320-01A1 -2 )
SN: 83001-UP
1шт.
|1
113-15-21721
GASKET,(F2320-56A2 -15 )
SN: 83001-UP
1шт.
|1
113-15-00540
SHIM KIT,(F2321-51A2 -10 )
SN: 83001-UP
1шт.
|1
0
SHIM¤ 1.0MM,(F2321-51A2 -10- )
SN: 83001-UP
2шт.
|1
0
SHIM¤ 0.2MM,(F2321-51A2 -10- )
SN: 83001-UP
8шт.
|1
0
SHIM¤ 0.3MM,(F2321-51A2 -10- )
SN: 83001-UP
4шт.
|1
113-15-24860
GASKET,(F2320-62A2 -14 )
SN: 83001-UP
1шт.
|1
113-15-29250
RING,(F2320-51A2 -12 )
SN: 83001-UP
1шт.
|1
113-15-29250
RING,(F2320-51A2 -15 )
SN: 83001-UP
1шт.
|1
113-15-29250
RING,(F2320-52A2 -6 )
SN: 83001-UP
1шт.
|1
113-15-29250
RING,(F2320-54A2 -3 )
SN: 83001-UP
1шт.
|1
113-15-29261
RING,(F2320-54A2 -5 )
SN: 83001-UP
1шт.
|1
113-15-39120
SEAL,(F2320-63A2 -15 )
SN: 83001-UP
1шт.
|1
287-15-19210
RING,(F2320-55A2 -11 )
SN: 83001-UP
1шт.
|1
415-15-12360
RING,(F2320-55A2 -12 )
SN: 83001-UP
1шт.
2
104-15-05500
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 83001-UP
1шт.
|2
07000-72014
O-RING,(F2320-57A2 -29 )
SN: 83001-UP
3шт.
|2
07000-72014
O-RING,(F2320-57A2 -32 )
SN: 83001-UP
4шт.
|2
07000-72018
O-RING,(F2320-57A2 -30 )
SN: 83001-UP
1шт.
|2
07000-72020
O-RING,(F2320-57A2 -26 )
SN: 83001-UP
2шт.
|2
07000-73025
O-RING,(F2320-57A2 -28 )
SN: 83001-UP
2шт.
|2
103-15-35270
SHIM¤ 0.5MM,(F2320-57A2 -23 )
SN: 83001-UP
3шт.
|2
104-15-25140
GASKET,(F2320-57A2 -4 )
SN: 83001-UP
1шт.
|2
113-15-25260
SHIM¤ 0.5MM,(F2320-57A2 -22 )
SN: 83001-UP
3шт.
|2
113-15-25270
SHIM¤ 0.2MM,(F2320-57A2 -22- )
SN: 83001-UP
2шт.
3
104-15-05600
SERVICE KIT,SELECTOR AND INCHING VALVE
SN: 83001-UP
1шт.
|3
07000-72021
O-RING,(F2320-58A2 -31 )
SN: 83001-UP
1шт.
|3
07002-01223
O-RING,(F2320-58A2 -17 )
SN: 83001-UP
2шт.
|3
07002-01223
O-RING,(F2320-58A2 -39 )
SN: 83001-UP
1шт.
|3
07002-01823
O-RING,(F2320-58A2 -7 )
SN: 83001-UP
1шт.
|3
07002-01823
O-RING,(F2320-58A2 -13 )
SN: 83001-UP
1шт.
|3
07002-03034
O-RING,(F2320-58A2 -29 )
SN: 83001-UP
1шт.
|3
103-15-45920
GASKET,(F2320-58A2 -43 )
SN: 83001-UP
1шт.
|3
104-15-36460
SHIM¤ 0.5MM,(F2320-58A2 -35 )
SN: 83001-UP
4шт.
|3
104-15-36470
SHIM¤ 0.2MM,(F2320-58A2 -35- )
SN: 83001-UP
6шт.
|3
104-15-36480
SHIM¤ 0.5MM,(F2320-58A2 -24 )
SN: 83001-UP
6шт.
|3
104-15-36490
SHIM¤ 0.2MM,(F2320-58A2 -24- )
SN: 83001-UP
4шт.
|3
113-15-29110
SEAL,(F2320-58A2 -8 )
SN: 83001-UP
1шт.
|3
113-15-29110
SEAL,(F2320-58A2 -32 )
SN: 83001-UP
1шт.
|3
124-15-49110
SEAL,(F2320-58A2 -9 )
SN: 83001-UP
1шт.
