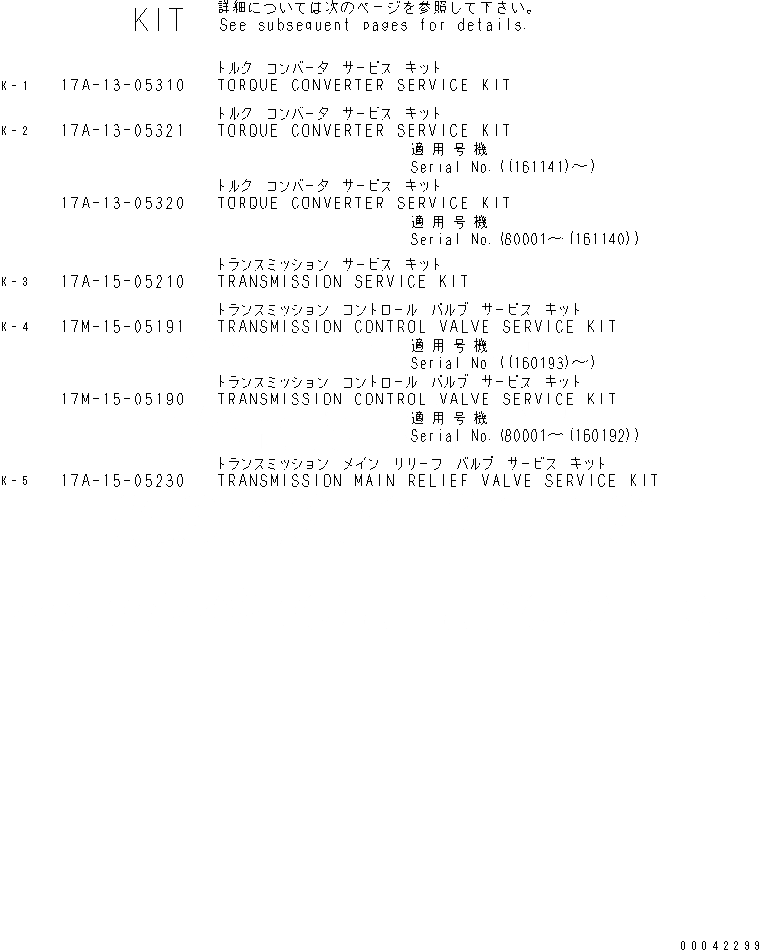

K-1
17A-13-05310
SERVICE KIT
SN: 80001-UP
1шт.
|$2
07000-72015
O-RING,(F2310-53A0 -24 )
SN: 80001-UP
4шт.
|$3
07000-72018
O-RING,(F2310-53A0 -9 )
SN: 80001-UP
2шт.
|$4
07000-72021
O-RING,(F2310-53A0 -10 )
SN: 80001-UP
2шт.
|$5
07000-72095
O-RING,(F2310-54A0 -5 )
SN: 80001-UP
1шт.
|$6
07000-72115
O-RING,(F2310-54A0 -26 )
SN: 80001-UP
1шт.
|$7
07000-73030
O-RING,(F2310-53A0 -23 )
SN: 80001-UP
2шт.
|$8
07000-73035
O-RING,(F2310-53A0 -6 )
SN: 80001-UP
2шт.
|$9
07000-73038
O-RING,(F2310-53A0 -7 )
SN: 80001-UP
2шт.
|$10
07000-75165
O-RING,(F2310-53A0 -35 )
SN: 80001-UP
1шт.
|$11
07000-75230
O-RING,(F2310-54A0 -14 )
SN: 80001-UP
1шт.
|$12
07000-75230
O-RING,(F2310-54A0 -22 )
SN: 80001-UP
1шт.
|$13
07005-01612
SEAL, WASHER,(F2310-53A0 -13 )
SN: 80001-UP
4шт.
|$14
07005-01612
SEAL, WASHER,(F2310-53A0 -18 )
SN: 80001-UP
6шт.
|$15
07005-01612
SEAL, WASHER,(F2310-53A0 -19 )
SN: 80001-UP
3шт.
|$16
07012-50100
SEAL,(F2310-53A0 -34 )
SN: 80001-UP
1шт.
|$17
113-15-12870
RING,(F2310-51A0 -37 )
SN: 80001-UP
1шт.
|$18
195-13-12711
RING,(F2310-51A0 -17 )
SN: 80001-UP
1шт.
|$19
567-15-12830
RING,(F2310-52A0 -14 )
SN: 80001-UP
2шт.
|$20
568-15-12830
RING,(F2310-52A0 -13 )
SN: 80001-UP
2шт.
|$21
568-15-12850
RING,(F2310-51A0 -36 )
SN: 80001-UP
1шт.
K-2
17A-13-05321
SERVICE KIT
SN: (161141)-UP
1шт.
K-2
17A-13-05320
SERVICE KIT
SN: 80001-(161140)
1шт.
|$24
07000-A2060
O-RING,(F2310-56A0 -13 )
SN: (161141)-UP
1шт.
|$25
07000-02060
O-RING,(F2310-56A0 -13 )
SN: 80001-(161140)
1шт.
|$26
07000-71007
O-RING,(F2310-56A0 -10 )
SN: 80001-UP
2шт.
|$27
07000-72015
O-RING,(F2310-56A0 -9 )
SN: 80001-UP
8шт.
|$28
07000-73022
O-RING,(F2310-56A0 -16 )
SN: 80001-UP
2шт.
|$29
07002-61223
O-RING,(F2310-55A0 -5 )
SN: 80001-UP
3шт.
|$30
07002-61623
O-RING,(F2310-55A0 -3 )
SN: 80001-UP
2шт.
|$31
07002-61823
O-RING,(F2310-56A0 -15 )
SN: 80001-UP
1шт.
K-3
17A-15-05210
SERVICE KIT
SN: 80001-UP
1шт.
|$33
07000-72014
O-RING,(F2320-55A0 -12 )
SN: 80001-UP
1шт.
|$34
07000-72014
O-RING,(F2320-55A0 -19 )
SN: 80001-UP
1шт.
|$35
07000-72018
O-RING,(F2320-52A0 -4 )
SN: 80001-UP
1шт.
|$36
07000-72020
O-RING,(F2320-51A0 -18 )
SN: 80001-UP
1шт.
|$37
07000-73022
O-RING,(F2320-55A0 -18 )
SN: 80001-UP
1шт.
|$38
07000-73025
O-RING,(F2320-55A0 -13 )
SN: 80001-UP
1шт.
|$39
07000-73028
O-RING,(F2320-55A0 -7 )
SN: 80001-UP
1шт.
|$40
07000-73028
O-RING,(F2320-55A0 -21 )
SN: 80001-UP
1шт.
|$41
07000-73030
O-RING,(F2320-52A0 -23 )
SN: 80001-UP
3шт.
|$42
07000-73030
O-RING,(F2320-55A0 -6 )
SN: 80001-UP
1шт.
|$43
07000-73030
O-RING,(F2320-55A0 -22 )
SN: 80001-UP
1шт.
|$44
07000-73032
O-RING,(F2320-55A0 -23 )
SN: 80001-UP
1шт.
|$45
07000-73035
O-RING,(F2320-52A0 -24 )
SN: 80001-UP
1шт.
|$46
144-15-22881
RING,(F2320-51A0 -15 )
SN: 80001-UP
1шт.
|$47
144-15-22881
RING,(F2320-52A0 -27 )
SN: 80001-UP
1шт.
|$48
17A-15-25911
GASKET,(F2320-61A0 -2 )
SN: 80001-UP
1шт.
|$49
195-15-71230
GASKET,(F2320-61A0 -6 )
SN: 80001-UP
1шт.
|$50
425-15-19250
RING,(F2320-51A0 -26 )
SN: 80001-UP
1шт.
|$51
562-15-19230
RING,(F2320-51A0 -3 )
SN: 80001-UP
1шт.
|$52
562-15-19230
RING,(F2320-52A0 -9 )
SN: 80001-UP
1шт.
|$53
566-15-79260
RING,(F2320-51A0 -5 )
SN: 80001-UP
1шт.
|$54
566-15-79260
RING,(F2320-51A0 -28 )
SN: 80001-UP
1шт.
|$55
568-15-12830
RING,(F2320-51A0 -17 )
SN: 80001-UP
1шт.
|$56
568-15-12830
RING,(F2320-52A0 -29 )
SN: 80001-UP
1шт.
|$57
568-15-12840
RING,(F2320-52A0 -11 )
SN: 80001-UP
1шт.
K-4
17M-15-05191
SERVICE KIT
SN: (160193)-UP
1шт.
K-4
17M-15-05190
SERVICE KIT
SN: 80001-(160192)
1шт.
|$60
07000-72015
O-RING,(F2320-57A0 -11 )
SN: 80001-UP
2шт.
|$61
07000-72016
O-RING,(F2320-57A0 -5 )
SN: 80001-UP
5шт.
|$62
07002-61823
O-RING,(F2320-57A0 -6 )
SN: 80001-UP
5шт.
|$63
195-15-75531
GASKET,(F2320-57A0 -1 )
SN: 80001-UP
1шт.
|$64
195-15-75740
O-RING,(F2320-57A0 -15 )
SN: 80001-UP
1шт.
|$65
154-15-65590
O-RING,(F2320-57A0 -9 )
SN: (160193)-UP
1шт.
|$66
209-38-12480
O-RING,(F2320-57A0 -9 )
SN: 80001-(160192)
1шт.
|$67
209-38-12490
RING,(F2320-57A0 -10 )
SN: 80001-(160192)
1шт.
K-5
17A-15-05230
SERVICE KIT
SN: 80001-UP
1шт.
|$69
07000-73030
O-RING,(F2320-60A0 -25 )
SN: 80001-UP
5шт.
|$70
07002-03034
O-RING,(F2320-60A0 -4 )
SN: 80001-UP
1шт.
|$71
07002-03034
O-RING,(F2320-60A0 -13 )
SN: 80001-UP
1шт.
|$72
07002-03034
O-RING,(F2320-60A0 -22 )
SN: 80001-UP
2шт.
