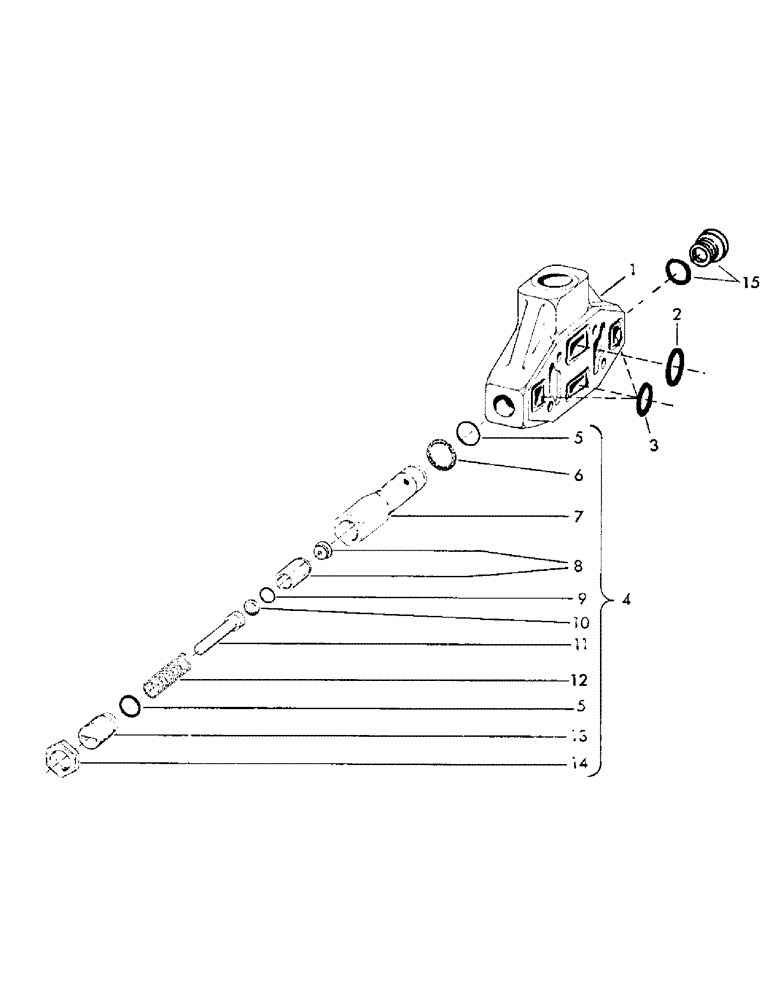

Запчасти Case 30YC (H17) - MID INLET PART NUMBER 201991M1 (07) - HYDRAULIC SYSTEM

201991M1

VALVE - mid inlet - (Consists of items 1 and 4 thru 14)

1шт.

NSS = not serviced separately

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" OD

1шт.

3

5718

"O" RING - 1.299" ID x 1.500" OD

3шт.

4

61092M2

VALVE - relief (Consists of items 1 and 5 thru 14)

1шт.

5

64209

"O" RING

2шт.

6

60211

GASKET

1шт.

7

60208

CARTRIDGE - shell

1шт.

8

74805

SEAT - snubber assembly

1шт.

9

5604

O-RING

"O" RING - .301" ID x .437" OD

1шт.

10

7163

RING - back up

1шт.

11

16727

ELECTRICAL WIRE

PLUNGER

1шт.

12

74807

NUT

SPRING

1шт.

13

61226

KEY

SCREW - adjustable

1шт.

14

61227

NUT - locking

1шт.

15

8997

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

PLUG - (3/4" tube) - 1-1/16" - 12 male (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

1шт.
