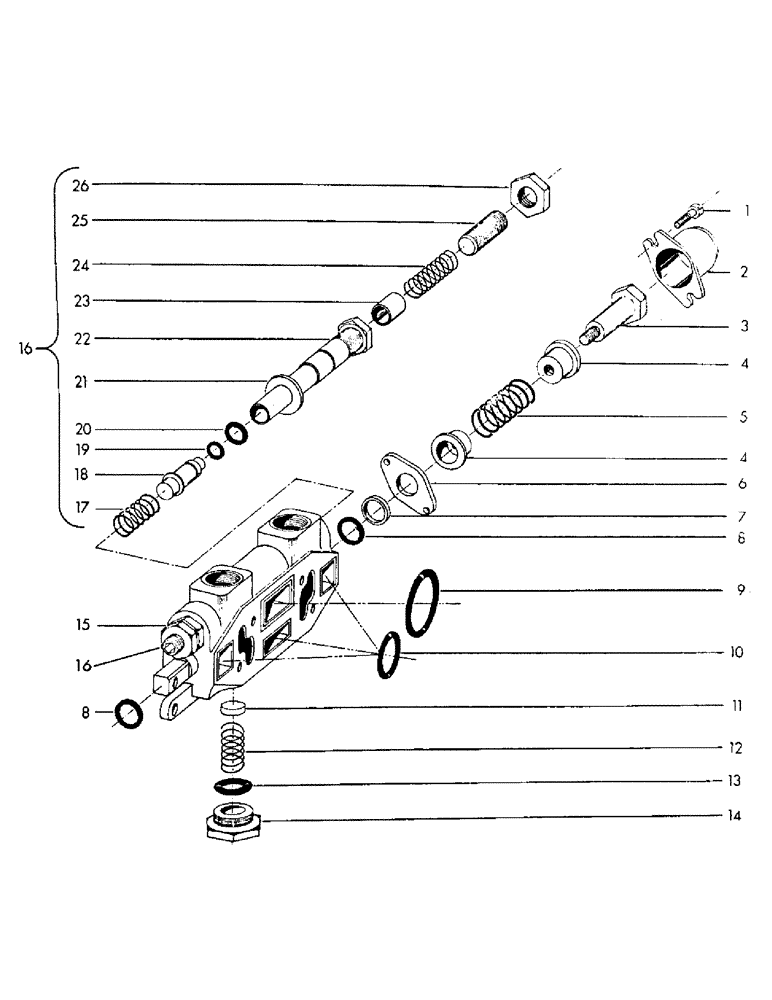

Запчасти Case 30YC (H15) - * WORKING SECTION PART NUMBER 202948M1 (07) - HYDRAULIC SYSTEM

202948M1

VALVE - working section - (Consists of items 1 thru 28)

2шт.

NSS = not serviced separately

1шт.

1

14728

HOSE,Fil Hd, 3/4" L

SCREW - fillister head - 5/16" x 3/4" NC

2шт.

2

16140

CAP - valve

1шт.

3

16152

PLATE

BOLT - hex head stripper

1шт.

4

BER16150

BEARING

GUIDE - spring

2шт.

5

16151M1

SPRING

1шт.

6

16149

SUPPORT

PLATE - retaining

1шт.

7

16148

BASE

RING - back up

1шт.

8

60098

SEAL

RING - quad seal

2шт.

9

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" OD

1шт.

10

5718

"O" RING - 1.299" ID x 1.500" OD

3шт.

11

16141

POPPET - check

1шт.

12

16143

GUSSET

SPRING

1шт.

13

5711

PISTON

"O" RING - .862" ID x 1.062" OD

1шт.

14

16142

CAP - check valve

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

208060

HYD CONNECTOR

CARTRIDGE - port relief - (Set at 2500 P.S.I.) - (Consists of items 17 thru 28)

2шт.

17

17691

SPRING

2шт.

18

17690

POPPET

2шт.

19

63537

"O" RING

2шт.

20

63539

BATTERY

"O" RING

2шт.

21

17692

LARGE PLATE

GASKET

2шт.

22

17686

CARTRIDGE - valve

2шт.

23

17687

BRACKET

SEAT - floating

2шт.

24

63540

SPRING

2шт.

25

17688

SCREW - set

2шт.

26

17689

BRACKET

NUT - lock

2шт.

27

4245

SEAL KIT

NUT - jam - 1/2" NF - (Not illustrated)

2шт.

28

69321

WIRE - lock - (Not illustrated)

1шт.
