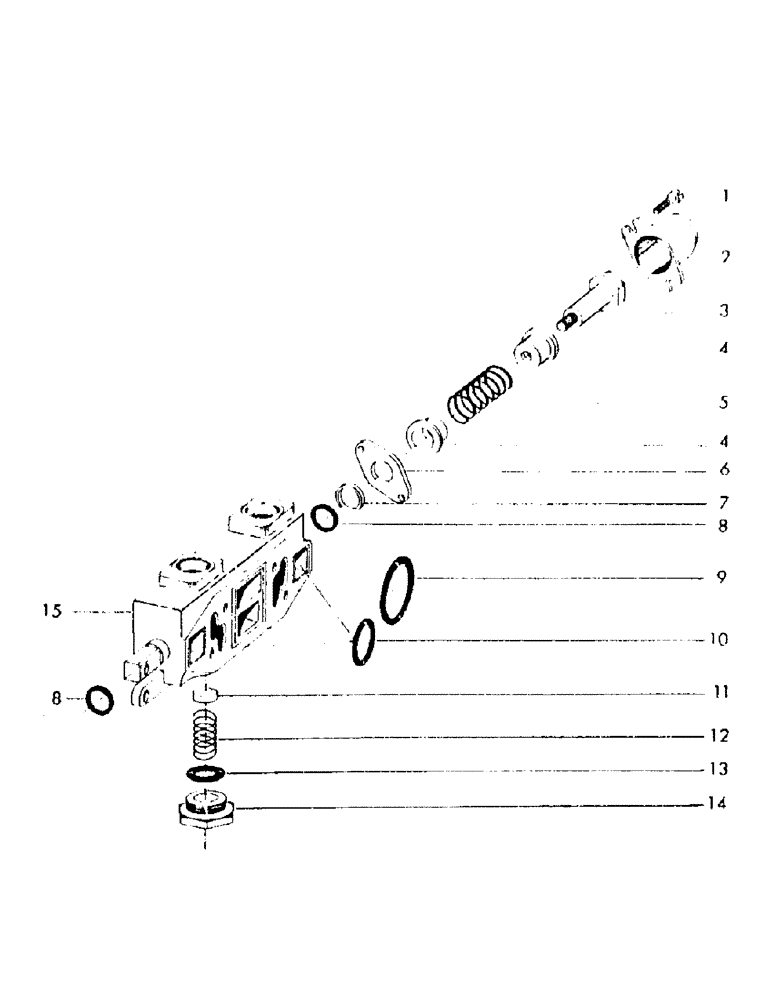

Запчасти Case 30YC (H14) - WORKING SECTION PART NUMBER 202913M1 (07) - HYDRAULIC SYSTEM

202913M1

VALVE - working section - (Consists of items 1 thru 8 and 11 thru 13)

2шт.

NSS = not serviced separately

1шт.

1

2096

CPSW - socket head - 1/4" x 2-1/4" NC GR 8

2шт.

2

74164

CAP - valve

1шт.

3

16152

PLATE

BOLT - hex head stripper

1шт.

4

BER16150

BEARING

GUIDE - spring

2шт.

5

16151M1

SPRING

1шт.

6

74808

PLATE - retaining

1шт.

7

16148

BASE

RING - back up

1шт.

8

60098

SEAL

RING - quad seal

2шт.

9

S5733

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

10

5718

"O" RING - 1.299" ID x 1.500" OD

3шт.

11

16141

POPPET - check

1шт.

12

16143

GUSSET

SPRING

1шт.

13

5711

PISTON

"O" RING - .862" ID x 1.062" OD

1шт.

14

16142

CAP - check valve

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.
