Запчасти Case 30YC (H06) - LEVELER CYLINDER (07) - HYDRAULIC SYSTEM

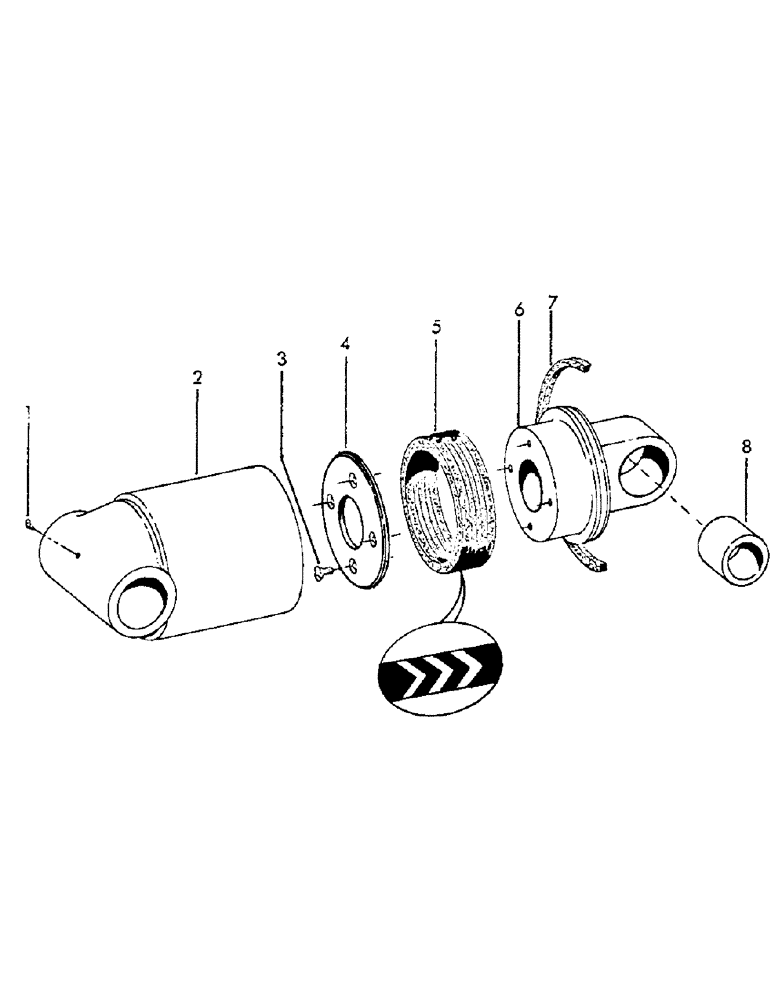

Схема запчастей Case 30YC - (H06) - LEVELER CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

56810

CYLINDER - leveler (Consists of 1 of item 8 and items 2 thru 7)

2шт.

1

13732

SWITCH

FITTING - grease - 1/8" NPT x 45 degrees

1шт.

2

209057

TUBE - cylinder

1шт.

3

4926

CPSW - flat head - 3/8" x 3/4" NC GR 5

4шт.

4

64145

SUPPORT

PLATE - piston base

1шт.

5

209061

"V" RING CUP ASSEMBLY

1шт.

6

209060

ROD AND PISTON ASSEMBLY - (Includes bushing item 8)

1шт.

7

64146

SPACER

RING - wiper - felt

1шт.

8

202130

BUSHING - hardened steel

1шт.

Выбрано товаров: 9
