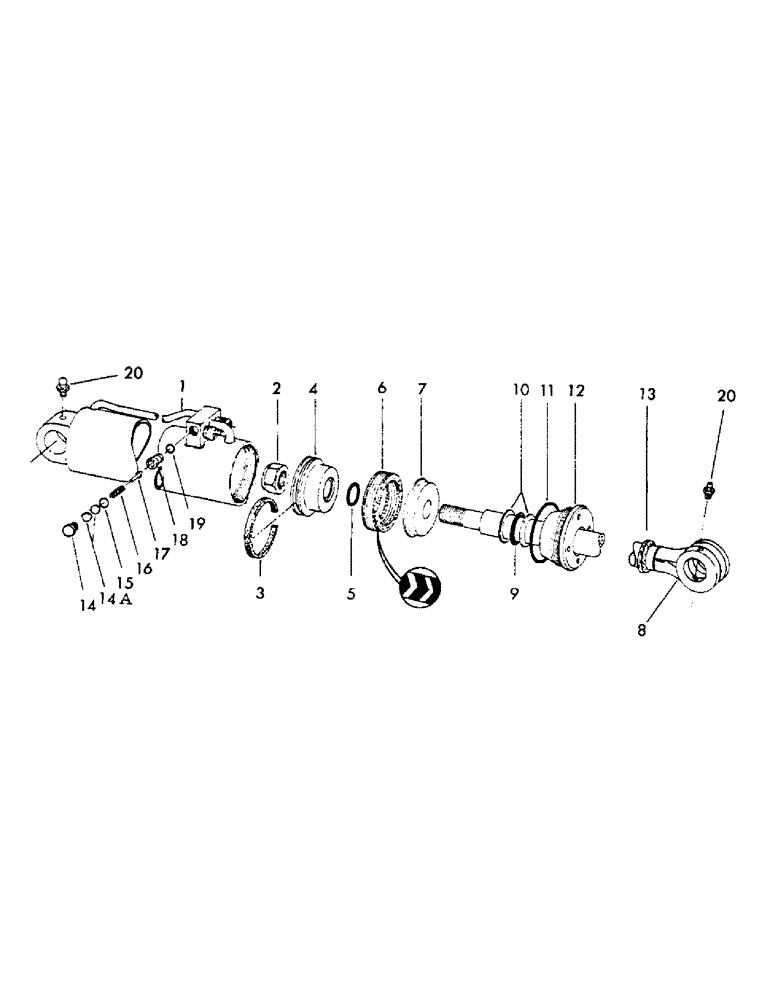

Запчасти Case 30YC (H04) - PULPWOOD CLAM CYLINDER 3-1/2" ID X 9-3/4" STROKE (07) - HYDRAULIC SYSTEM

31347M5

CYLINDER - clam (Consists of items 1 thru 20)

2шт.

1

26551M5

TUBE - cylinder - for log grapple and clam cylinder

1шт.

2

9022

SEALING RING

NUT - self locking - 1-1/8" NF

1шт.

3

48419

GUARD

RING - wear

1шт.

4

28097

PISTON - with "O" ring seat

1шт.

5

5809

O-RING

"O" RING - 1.109" ID x 1.375" OD

1шт.

6

26550

PACK - piston

1шт.

7

49783

KNIFE

PISTON - with "O" ring seat

1шт.

8

26552M2

ROD - piston - clam (Includes item 2)

1шт.

202796M1

ROD - piston - log grapple

1шт.

9

6165

HALF-COUPLING

"O" RING - 1.469" ID x 1.785" OD

1шт.

10

6921

HEADLAMP

WASHER - leather back up

2шт.

11

6327

O-RING

"O" RING - 3.359" ID x 3.625" OD

1шт.

12

46840

HEAD - cylinder

1шт.

13

46869

RING - wiper

1шт.

14

46911

X

CAP - relief valve

1шт.

14a

46910

SHIM

1шт.

15

6058

O-RING

"O" RING - .234" ID x .375" OD

1шт.

16

73-416

BOLT (MACHINE),Flat, 1/4"

SPRING

1шт.

17

46914

BELT

PLUNGER

1шт.

18

46913

SUPPORT

SEAT

1шт.

19

5603

BUSHING

"O" RING - .234" ID x .375" OD

1шт.

20

12031

FITTING - grease - 1/8" NPT (Straight)

2шт.
