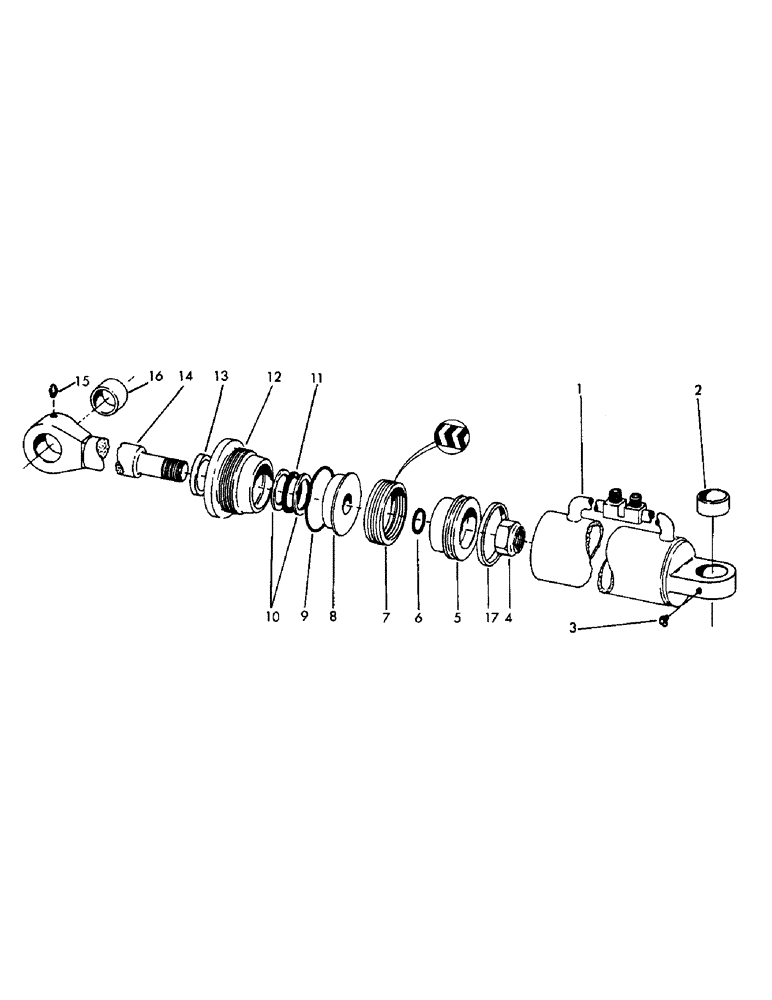

Запчасти Case 30YC (H03) - 4-IN-1 CLAM CYLINDER 2-3/4" ID X 10.50" STROKE (07) - HYDRAULIC SYSTEM

31431M2

CYLINDER - 4-in-1 - complete (Consists of items 1 thru 17)

2шт.

1

26750M1

TUBE AND PIPE ASSEMBLY

1шт.

2

241-1714

CHAIN LINK

BUSHING, Link

1шт.

3

49793

GUARD

FITTING - grease - 1/8" NPT (Straight)

1шт.

4

8268801

SPARE PART

- nylon stop - 1" NF

1шт.

5

60192

PISTON - with "O" ring seat

1шт.

6

5807

O-RING

"O" RING - .984" ID x 1.250" OD

1шт.

7

27161

ARM

"V" RING CUP ASSEMBLY

1шт.

8

60194

PISTON - half

1шт.

9

6321

"O" RING - 2.609" ID x 2.875" OD

1шт.

10

6921

HEADLAMP

WASHER - leather back up

2шт.

11

6165

HALF-COUPLING

"O" RING - 1.475" ID x 1.875" OD

1шт.

12

46823

LEVER

HEAD - cylinder

1шт.

13

46869

RING - wiper

1шт.

14

26749

ROD - piston (Includes item 16)

1шт.

15

46960

FITTING - grease - 1/4" NPT (Straight)

1шт.

16

46820

BUSHING

1шт.

17

48034

SPACER

RING - wear

1шт.
