Запчасти Case 30YC (H02) - TOOL CYLINDER 4-3/4" ID X 31.10 STROKE (07) - HYDRAULIC SYSTEM

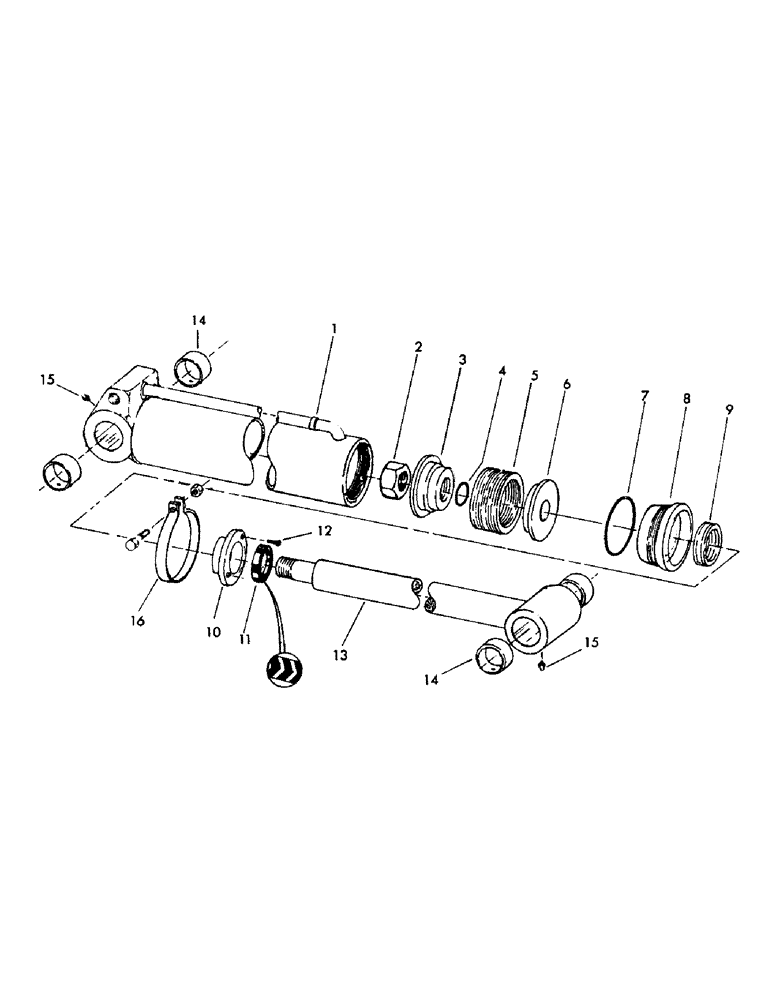

Схема запчастей Case 30YC - (H02) - TOOL CYLINDER 4-3/4" ID X 31.10 STROKE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

S32943M4

CYLINDER - tool, Consists of Refs. 1 thru 15

1шт.

Change in listing.

1шт.

1

205952M1

TUBE - cylinder

1шт.

Part of cylinder P/N S32943M4

1шт.

2

NLS

NO LONGER SERVICED

NUT - self locking - 1-1/2" NF (17164)

1шт.

Part of cylinder P/N S32943M4

1шт.

3

200953

PISTON - with "O" ring seat

1шт.

Part of cylinder P/N S32943M4

1шт.

4

5815

PANEL

"O" RING - 1.234" ID x 1.500" O.D.

1шт.

Part of cylinder P/N S32943M4

1шт.

5

S200950M1

"V" RING - cup assembly

1шт.

Part of cylinder P/N S32943M4

1шт.

Change in listing.

1шт.

6

200955

PISTON

1шт.

Part of cylinder P/N S32943M4

1шт.

7

5943

O-RING,0.21" Thk x 4.475" ID, -349, Cl 5, 75 Duro

"O" RING - 4.600" ID x 5.000" O.D.

1шт.

Part of cylinder P/N S32943M4

1шт.

8

202417M1

HEAD - cylinder

1шт.

Part of cylinder P/N S32943M4

1шт.

9

S28515M1

"V" RING - cup assembly

1шт.

Part of cylinder P/N S32943M4

1шт.

Change in listing.

1шт.

10

200834

FLANGE - packing

1шт.

Part of cylinder P/N S32943M4

1шт.

11

22940

PISTON

SEAL - wiper

1шт.

Part of cylinder P/N S32943M4

1шт.

12

15515

CPSW - self locking - 3/8" x 1" NF

3шт.

Part of cylinder P/N S32943M4

1шт.

13

200973

ROD - piston, Includes 2 of Ref. 14

1шт.

Part of cylinder P/N S32943M4

1шт.

14

202070

STEERING KNUCKLE

BUSHING - hardened steel

4шт.

Part of cylinder P/N S32943M4

1шт.

15

NLS

NO LONGER SERVICED

FITTING - grease - 1/8" NPT, straight

2шт.

Part of cylinder P/N S32943M4

1шт.

16

206301

CLAMP - cylinder - welded on clamps not replaceable

1шт.

3568

ELBOW

CPSW - 5/8" x 4" NC grade 5

1шт.

17171

NUT - self locking - 5/8" NC

1шт.

Выбрано товаров: 37
