Запчасти Case 30YC (G18) - DRAIN LINE CIRCUIT (SWING AND TRACK MOTORS) (07) - HYDRAULIC SYSTEM

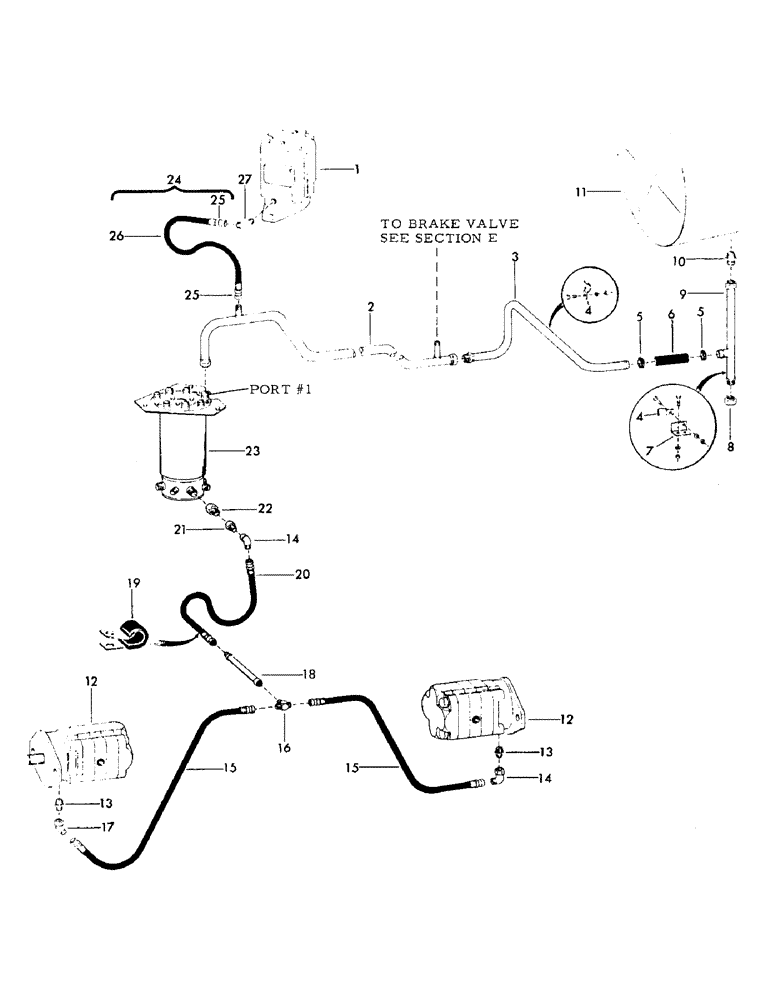

Схема запчастей Case 30YC - (G18) - DRAIN LINE CIRCUIT (SWING AND TRACK MOTORS) (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOTOR - swing (For breakdown, see section H)

1шт.

2

36907

LINE - hydraulic

1шт.

3

36908

HANDLE

LINE - hydraulic

1шт.

4

45219

CLAMP

2шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC GR 5

2шт.

4397

LOCKWASHER - 3/8"

2шт.

7387

LOCTITE

WASHER - flat - 3/8"

2шт.

4222

NUT - 3/8" NC

2шт.

5

10873

CLAMP - hose (Fits hoses 3/4" OD to 1" OD)

2шт.

6

202581

HOSE - low pressure (Bulk) - one piece is 1" ID x 6" long

6шт.

7

78402

BRACKET

1шт.

2351

LAMP

CPSW - 1/4" x 1" NC GR 5

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

4220

TOOL

NUT - 1/4" NC

2шт.

8

9419

TANK

CAP - (1" tube) - 15/16" - 12 female

1шт.

9

208879

LINE - hydraulic

1шт.

10

60838

ADAPTER - (1" tube) - 3/4" male x 1-5/16" male - 37 degree flared

1шт.

11

RESERVOIR - hydraulic - (For breakdown, see section H)

1шт.

12

MOTOR - crawler - (For breakdown, see section H)

1шт.

13

101310

ADAPTER

- (1/2" tube) - 3/4" male x 1/2" male - 37 degree flared

2шт.

14

10357

BRACKET

ELBOW - 90 degree swivel - (1/2" tube) - 3/4" male x 3/4" female - 37 degree flared

2шт.

15

11226

HOSE - high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

2шт.

16

60498

SPARE PART

TEE - 3/4" male x 3/4" male x 3/4" male - 37 degree flared

1шт.

17

9490

SEAL

ELBOW - 45 degree swivel - (1/2" tube) - 3/4" male x 3/4" female - 37 degree flared

1шт.

18

209700

SCREW

LINE - hydraulic

1шт.

19

77322

CLAMP

1шт.

20

11230

HOSE - high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

1шт.

21

101833

ADAPTER - reducing - 3/4" - 1/2" reduction

1шт.

6277

O-RING

NUT - tube - 3/4"

1шт.

22

101832

ADAPTER - reducing - 1" x 3/4" reduction

1шт.

6279

NUT - tube - 1"

1шт.

23

SWIVEL - hydraulic - (For breakdown, see section H)

1шт.

24

67765

HOSE - high pressure - 1/4" x 18" long - (Consists of items 25 and 26)

1шт.

25

11089

COUPLING - reusable - (1/4" tube) - 9/16" - 18 female - 37 degree flared

2шт.

26

29187

HOSE - high pressure (Bulk) - (One piece is 1/4" ID x 16" long)

16шт.

27

5006

ELBOW - adapter 45 degree - (3/8" tube) - (9/16" male x 1/4" NPT male - 37 degree flared)

1шт.

Выбрано товаров: 36
