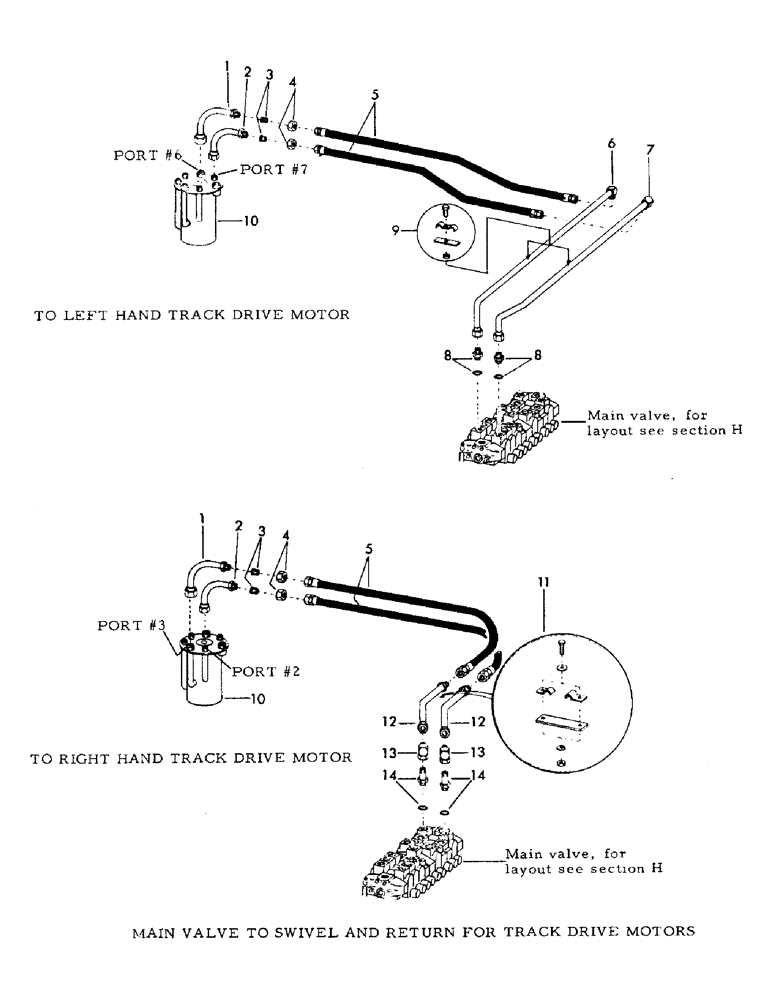

Запчасти Case 30YC (G15) - MAIN VALVE TO SWIVEL AND RETURN FOR TRACK DRIVE MOTORS (07) - HYDRAULIC SYSTEM

1

208826

LINE - hydraulic

2шт.

2

208825

LINE - hydraulic

2шт.

3

101832

ADAPTER - reducer - (1" x 3/4" tube reduction) - 1-1/16" - 12 male - 37 degree flared

4шт.

4

6279

NUT - sleeve - (1" tube) - 1-5/16" - 12 female - 37 degree flared

4шт.

5

15468

BUSHING

HOSE - high pressure - 3/4" x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

6

36909

METAL LINER

LINE - hydraulic

1шт.

7

36910

LINE - hydraulic

1шт.

8

7968

HYDRAULIC HOSE

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

2шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

2шт.

9

203107

CLAMP - tube

2шт.

78360

BAR

2шт.

2471

DISC

CPSW - 1/2" x 2-1/2" NC GR 5

2шт.

17169

NUT - 1/2" NC

2шт.

10

SWIVEL - hydraulic - (For breakdown, see section H)

1шт.

11

45219

CLAMP - tube

2шт.

81319

SPACER

1шт.

2403

LAMP

CPSW - 3/8" x 1-1/2" NC GR 5

2шт.

7387

LOCTITE

WASHER - flat - 3/8"

2шт.

4397

LOCKWASHER - 3/8"

2шт.

4222

NUT - 3/8" NC

2шт.

12

36906

LINE - hydraulic

2шт.

13

10359

TUBE ASSY.

ELBOW - 90 degrees - swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

14

66478

SUPPORT

CONNECTOR - "long" - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

2шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

2шт.
