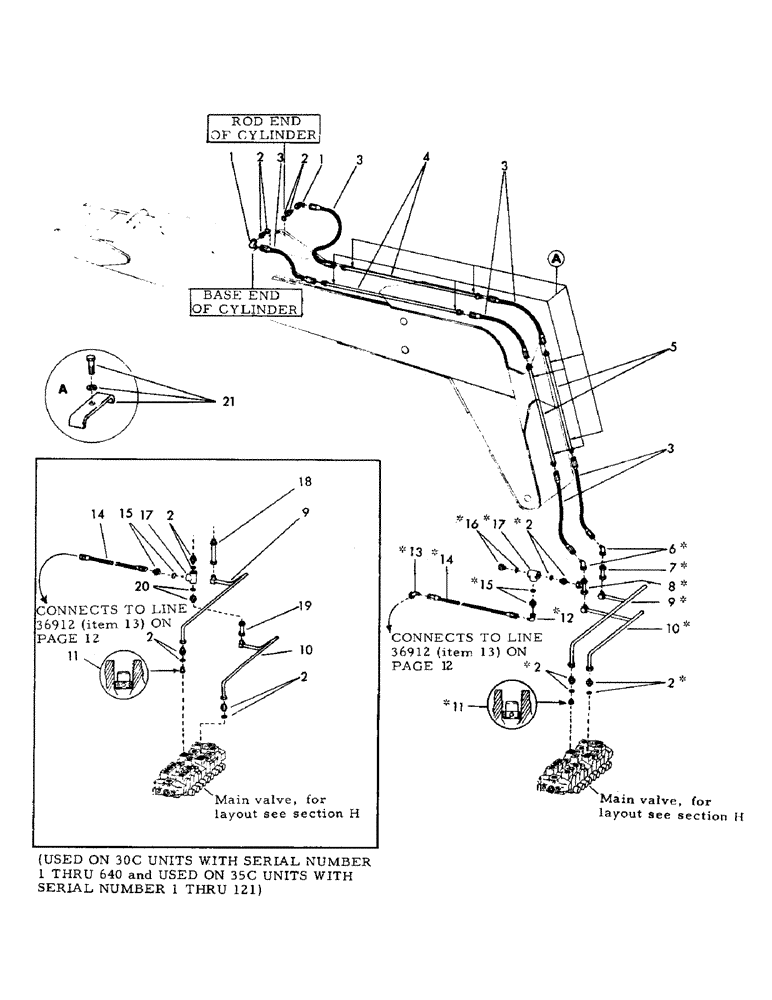

Запчасти Case 30YC (G05) - VALVE TO CROWD CYLINDER AND RETURN FOR "E" BOOM (07) - HYDRAULIC SYSTEM

1

10359

TUBE ASSY.

ELBOW - swivel 90 degrees - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

2

7968

HYDRAULIC HOSE

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared (Includes "O" ring)

5шт.

6065

O-RING

"O" RING - .924" ID x 1.156" O.D.

5шт.

3

15468

BUSHING

HOSE - high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

6шт.

4

S211975

LINE,1" OD x 13.5" L

- hydraulic

2шт.

Change in listing.

1шт.

5

207637

LINE - hydraulic

2шт.

6

1958432C1

ANCHOR

ELBOW - swivel 45 degrees - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared - (Used on 30C units with serial number 641-up, and used on 35C units with serial number 122-up)

2шт.

7

211967

LINE - hydraulic - (Used on 30C units with serial number 641-up, and used on 35C units with serial number 122-up)

1шт.

8

211968

LINE - hydraulic - (Used on 30C units with serial number 641-up, and used on 35C units with serial number 122-up)

1шт.

9

36899

BALER FLYWHEEL

LINE - hydraulic

1шт.

10

36900

SHAFT

LINE - hydraulic

1шт.

11

81256

REGULATOR - flow

1шт.

12

10358

LARGE PLATE

ELBOW - swivel 90 degrees - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 female - 37 degree flared) (Used on 30C units with serial number 641-up, and used on 35C units with serial number 122-up)

1шт.

13

9491

ELBOW - swivel 45 degrees - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 female - 37 degree flared - (Used on 30C units with serial number 641-up, and used on 35C units with serial number 122-up)

1шт.

14

8578

COUPLING

HOSE - high pressure - 1/2" ID x 26" long - (With 7/8" - 14 female pressed on couplings)

1шт.

15

7967

CONNECTOR - (5/8" tube) - 1-1/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" O.D.

1шт.

16

8983

SCRAPER

PLUG - (3/4" tube) - 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring) - (Used on 30C units wth serial number 641-up, and used on 35C units with serial number 122-up)

1шт.

17

VALVE - relief - (For breakdown see section "H")

1шт.

18

36921

WASHER

LINE - hydraulic - (Used on 30C units with serial number 1 thru 640, and used on 35C units with serial number 1 thru 121)

1шт.

19

206128

LINE - hydraulic - (Used on 30C units with serial number 1 thru 640, and used on 35C units with serial number 1 thru 121)

1шт.

20

7973

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring) - (Used on 30C units with serial number 1 thru 640, and used on 35C units with serial number 1 thru 121)

1шт.

21

46397

PIPE CLAMP

CLAMP - tube

8шт.

2469

CPSW - 1/2" x 2" NC grade 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.
