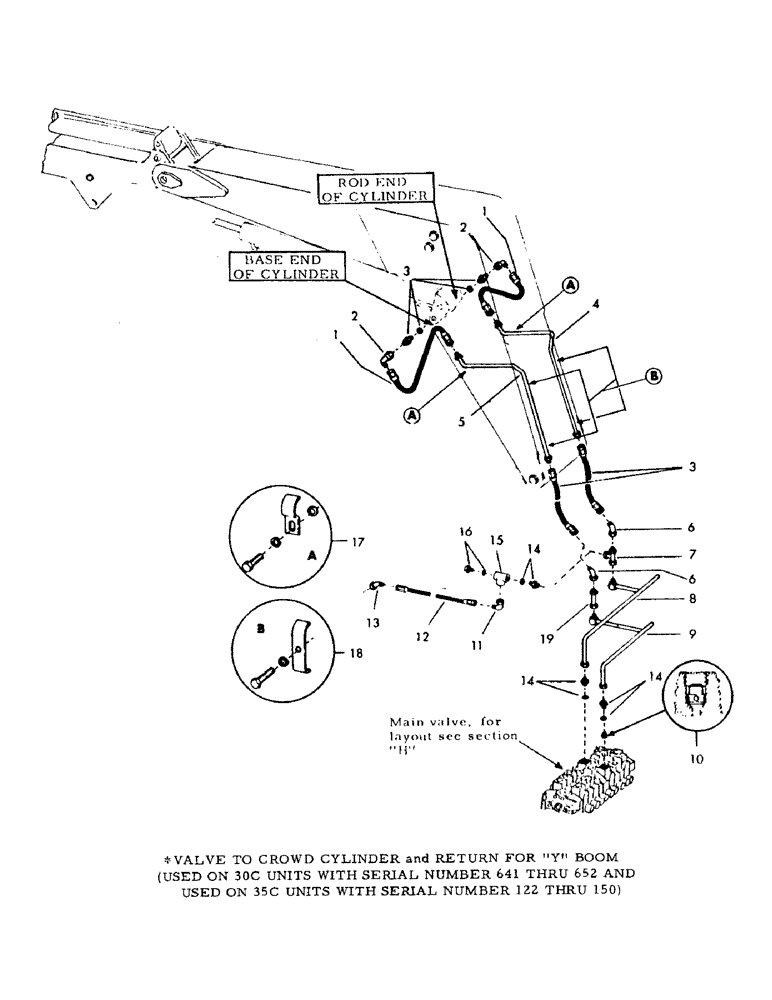

Запчасти Case 30YC (G04A) - * VALVE TO CROWD CYLINDER AND RETURN FOR "Y" BOOM, (USED ON 30C UNITS WITH SERIAL NUMBER 641 - 652 (07) - HYDRAULIC SYSTEM

1

15468

BUSHING

HOSE - high pressure - 3/4 ID x 28" long - (With 1-1/16" - 12 pressed on female couplings)

4шт.

2

10359

TUBE ASSY.

ELBOW - swivel 90 degrees - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

3

7968

HYDRAULIC HOSE

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

5шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

5шт.

4

502586

LINE - hydraulic

1шт.

5

502585

LINE - hydraulic

1шт.

6

1958432C1

ANCHOR

ELBOW - swivel 45 degrees - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared

2шт.

7

211968

LINE - hydraulic

1шт.

8

36899

BALER FLYWHEEL

LINE - hydraulic

1шт.

9

36900

SHAFT

LINE - hydraulic

1шт.

10

81256

REGULATOR - flow

1шт.

11

10358

LARGE PLATE

ELBOW - swivel 90 degrees - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 female - 37 degree flared

1шт.

12

8578

COUPLING

HOSE - high pressure - 1/2" ID x 26" long - (With 7/8" - 14 female pressed on couplings)

1шт.

13

9491

ELBOW - swivel 45 degrees - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 female - 37 degree flared

1шт.

14

7967

CONNECTOR - (5/8" tube) - 1-1/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

1шт.

15

VALVE - relief - (For breakdown, see section "H")

1шт.

16

8983

SCRAPER

PLUG - (3/4" tube) - 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

1шт.

17

79593

CLAMP - tube

2шт.

2465

ENGINE

CPSW - 1/2" x 1" NC GR 5

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.

7395

WASHER - flat - 1/2"

2шт.

18

46397

PIPE CLAMP

CLAMP - tube

4шт.

2470

DISC

CPSW - 1/2" x 2-1/4" NC GR 5

4шт.

4399

WASHER

LOCKWASHER - 1/2"

4шт.

19

211967

LINE - hydraulic

1шт.
