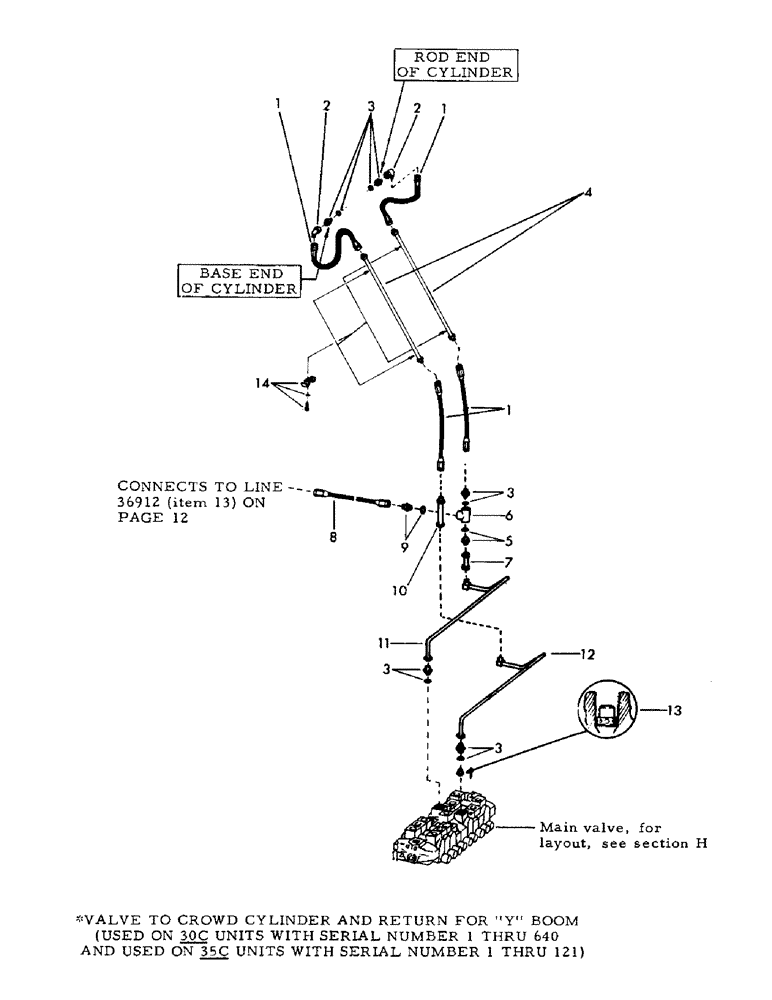

Запчасти Case 30YC (G03) - * VALVE TO CROWD CYLINDER AND RETURN FOR "Y" BOOM, (USED ON 30C UNITS WITH SERIAL NUMBER 1 - 640 AND (07) - HYDRAULIC SYSTEM

1

15468

BUSHING

HOSE - high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 pressed on female couplings)

4шт.

2

10359

TUBE ASSY.

ELBOW - 90 degrees - swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

3

7968

HYDRAULIC HOSE

CONNECTOR - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared (Includes "O" ring)

5шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

5шт.

4

210262

LINE - hydraulic

2шт.

5

7973

CONNECTOR - (1" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

1шт.

6

VALVE - relief - (For breakdown, see section H)

1шт.

7

206128

LINE - hydraulic

1шт.

8

8578

COUPLING

HOSE - high pressure - 1/2" ID x 26" long - (With 7/8" x 14 female pressed on couplings)

1шт.

9

7967

CONNECTOR - (5/8" tube) - 1-1/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "O" ring)

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

1шт.

10

36921

WASHER

LINE - hydraulic

1шт.

11

36899

BALER FLYWHEEL

LINE - hydraulic

1шт.

12

36900

SHAFT

LINE - hydraulic

1шт.

13

81256

REGULATOR - flow

1шт.

14

46397

PIPE CLAMP

CLAMP - tube

4шт.

2470

DISC

CPSW - 1/2" x 2-1/4" NC GR 5

4шт.

4399

WASHER

LOCKWASHER - 1/2"

4шт.
