Запчасти Case 30YC (F16) - PULPWOOD CLAM HYDRAULICS (07) - HYDRAULIC SYSTEM

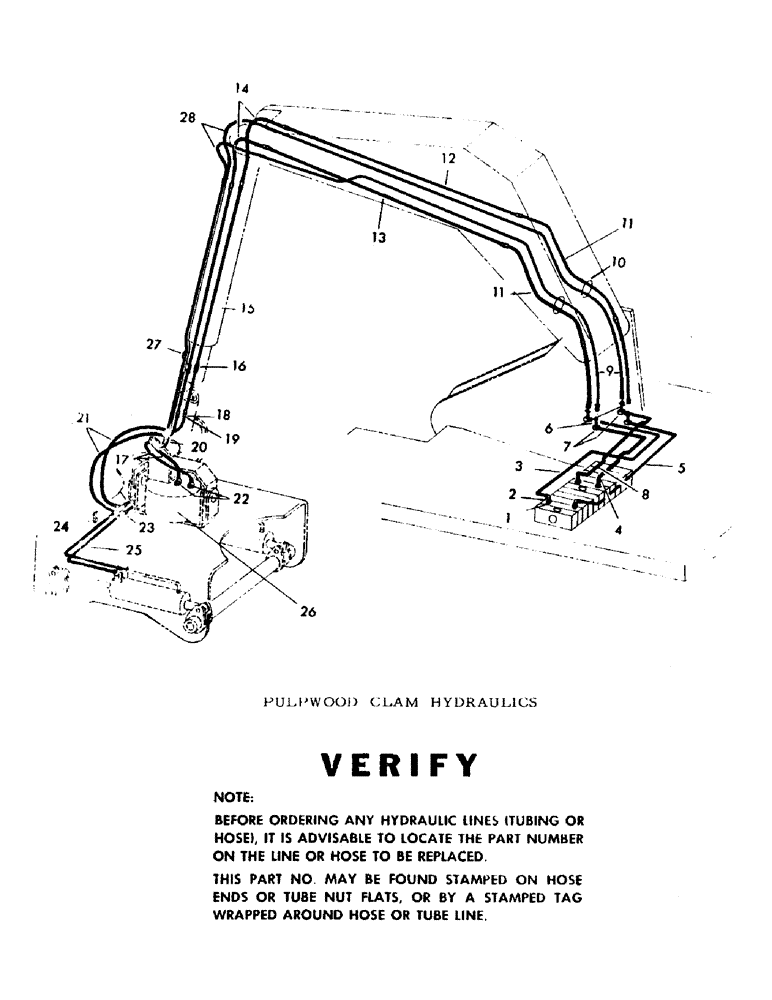

Схема запчастей Case 30YC - (F16) - PULPWOOD CLAM HYDRAULICS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7973

CONNECTOR - straight 1-1/16" NF x 1-5/16" NF

2шт.

6065

O-RING

"O" RING - 59/64" ID x 1-5/32" OD

2шт.

2

10361

BRACKET

ELBOW - 90 degree swivel - 1-5/16" male and female

2шт.

3

33599M1

LINE - hydraulic (Used on crawler units)

1шт.

33599M2

LINE - hydraulic (Used on crawler units)

1шт.

33600M1

LINE - hydraulic (Used on carrier units)

1шт.

33600M2

LINE - hydraulic (Used on carrier units)

1шт.

4

201702M1

LINE - hydraulic

1шт.

201702M2

LINE - hydraulic

1шт.

206600

LINE - hydraulic

1шт.

5

33597

LINE - hydraulic (Used on crawler units)

1шт.

33597M1

LINE - hydraulic (Used on crawler units)

1шт.

33598

LINE - hydraulic (Used on carrier units)

1шт.

33598M1

LINE - hydraulic (Used on carrier units)

1шт.

6

9412

QUICK MALE COUPLING

CAP - tube - 7/16"

2шт.

6277

O-RING

NUT - tube - 1-1/16" NF

2шт.

7

203458

ADAPTER - union (Used with 3 hole high lift boom)

4шт.

101835

REDUCER - 7/16" NF JIC thread

2шт.

8

201826M1

LINE - hydraulic

1шт.

201826M2

LINE - hydraulic

1шт.

11242

TOP

HOSE - 3/8" ID x 42" long with female JIC fittings

1шт.

206601

LINE - hydraulic

1шт.

9

65071

HOSE - high pressure - 3/16" ID x 312" (Used on earlier units with 109" tool extension)

2шт.

73634

HOSE - high pressure - 3/16" ID x 319" (Used on units with 116" tool extension)

2шт.

73640

HOSE - high pressure - 3/16" ID x 29" (Used on conjunction with hose #73634 and #101331 connector on units having a 145" tool extension)

1шт.

10

10874

CLAMP - hose

4шт.

11

201678

WHEEL

LINE - hydraulic

2шт.

12

202311

LINE - hydraulic

1шт.

13

201679

LINE - hydraulic

1шт.

14

15468

BUSHING

HOSE - 3/4" ID x 28" with female NF fittings

4шт.

15

33589

FITTING

LINE - hydraulic (Used on earlier units with 109" tool extension)

2шт.

37331

SPACER

LINE - hydraulic (Used on units with 116" tool extension)

2шт.

206687

LINE - hydraulic (Used in conjunction with #37331 line on units having a 145" tool extension)

2шт.

16

45187

SEAT CUSHION

CLAMP - tube

4шт.

2406

BEARING ASSY

CPSW - 3/8" x 2-1/4" NC GR 5

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC GR 5

1шт.

17

65072

HOSE - high pressure - 3/16" ID x 38" with 1/4 JIC female reuseable ends

2шт.

18

101833

REDUCER - tube end -, Serial Range: 3/4-1/2

2шт.

19

6277

O-RING

NUT - tube - 1-1/16" NF

2шт.

20

101331

HYD CONNECTOR

UNION - 7/16" thread x 7/16" thread

2шт.

21

11242

TOP

HOSE - high pressure - 3/8" ID x 42" with female JIC fitting

2шт.

22

63422

ELBOW - 90 degrees - 1/4" male pipe to 7/16" male tube

2шт.

23

60498

SPARE PART

TEE - union - 3/4" x 3/4" x 3/4" male

2шт.

24

9702

CLAMP

- tube

2шт.

2405

FLANGED BEARING

CPSW - 3/8" x 2" NC GR 5

2шт.

4397

LOCKWASHER - 3/8"

2шт.

4222

NUT - 3/8"

2шт.

25

11226

HOSE - 3/8" ID x 20"

4шт.

26

33583

ACTUATOR - pulpwood clam (For breakdown, see section "H")

1шт.

27

45173

HOUSING

CLAMP - tube

3шт.

2406

BEARING ASSY

CPSW - 3/8" x 2-1/2" NC GR 5

3шт.

4397

LOCKWASHER - 3/8"

3шт.

28

45613

HOSE - 3"

2шт.

Выбрано товаров: 53
