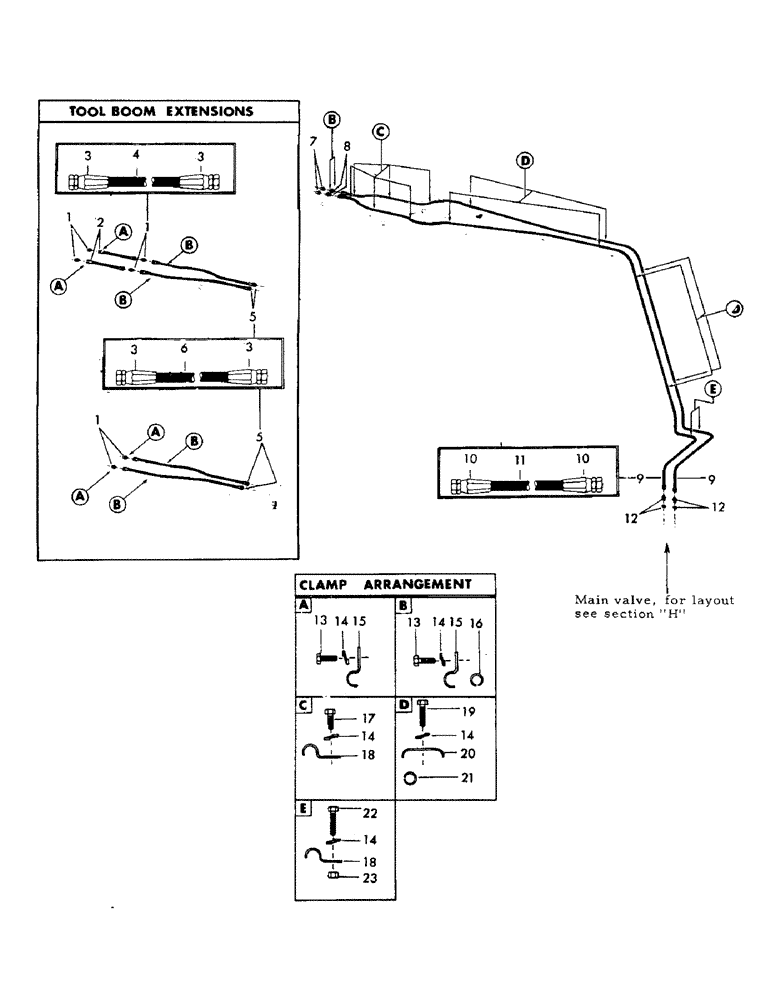

Запчасти Case 30YC (F10) - "Y" BOOM HYDRAULICS FOR WRIST-O-TWIST (07) - HYDRAULIC SYSTEM

1

101334

BRACKET

UNION - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Quantity of 2 used on units with 15'-17' depth tool boom extensions and quantity of 4 used on units with 16'-19' depth tool boom extensions)

1шт.

2

11236

HOSE - high pressure - 3/8" ID x 26" long - (Consists of items 3 and 4) - (Used on units with 16'-19' depth tool boom extensions only)

2шт.

3

11091

COUPLING - reusable - (3/8" ID Tube) - 3/4" - 16 female - 37 degree flared

8шт.

4

28465

HOSE - high pressure - (Bulk) - 2 pieces - 3/8" ID x 24" long

24шт.

5

11234

ROLLER BEARING

HOSE - high pressure - 3/8" ID x 86-1/2" long (Consists of items 3 and 6)

2шт.

6

28465

HOSE - high pressure - (Bulk) - 2 pieces - 3/8" ID x 84-1/2" long

1шт.

7

74710

ADAPTER - reducing - (5/8" x 1/2" tube reduction) - 3/4"-16 male x 7/8" - 14 female - 37 degree flared

2шт.

8

101335

BRACKET

UNION - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male - 37 degree flared

2шт.

9

76576

HOSE - high pressure - 1/2" ID x 330" long - (Consists of items 10 and 11)

2шт.

10

11093

COUPLING - reusable - (1/2" ID tube) - 7/8" - 14 female - 37 degree flared

4шт.

11

28462

HOSE - high pressure - (Bulk) - 2 pieces - 1/2" ID x 328" long

328шт.

12

7967

CONNECTOR - (5/8" tube) - 1-1/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "O" ring)

2шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

6шт.

13

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC GR 5

6шт.

14

4399

WASHER

LOCKWASHER - 1/2"

22шт.

15

77324

CLAMP - tube

6шт.

16

75792

COVER

RING - compression

4шт.

17

2465

ENGINE

CPSW - 1/2" x 1" NC GR 5

6шт.

18

81012

CLAMP - tube

8шт.

19

2470

DISC

CPSW - 1/2" x 2-1/4" NC GR 5

8шт.

20

46397

PIPE CLAMP

CLAMP - tube

8шт.

21

76577

RING - compression

8шт.

22

2467

CPSW - 1/2" x 1-1/2" NC GR 5

2шт.

23

4224

NUT - 1/2" NC

2шт.
