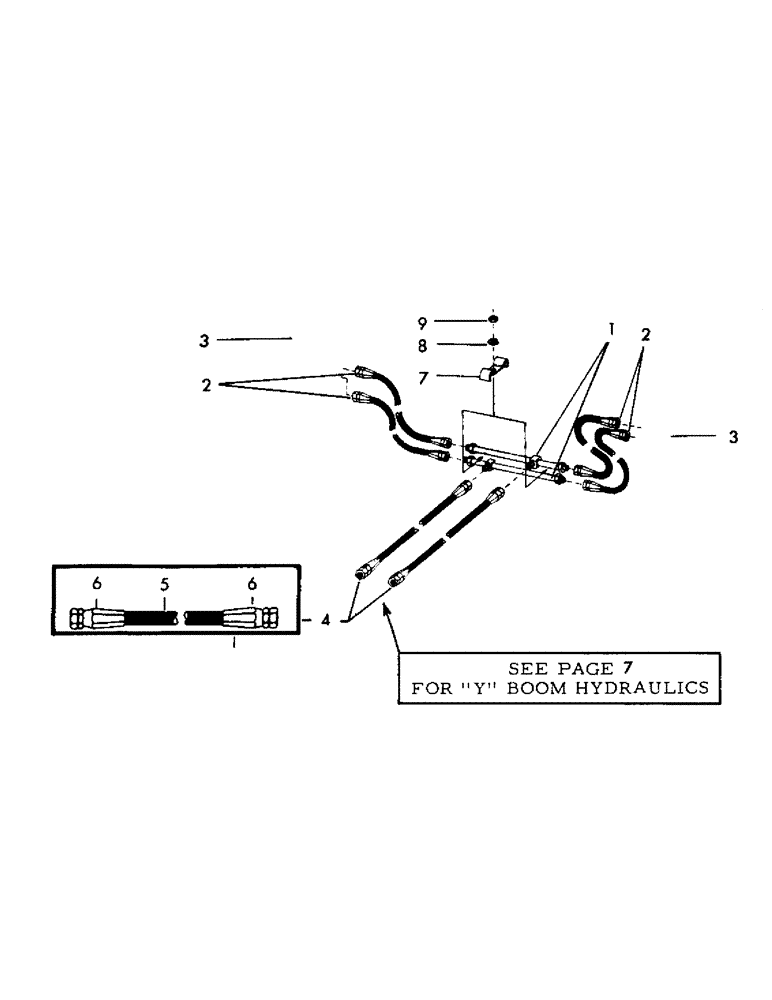

Запчасти Case 30YC (F06) - 4-IN-1 HYDRAULICS (07) - HYDRAULIC SYSTEM

1

208457

LINE - hydraulic

2шт.

2

11226

HOSE - high pressure - 3/8" ID x 32" long (With 3/4 - 16 female pressed on couplings)

4шт.

3

CYLINDER - 4-in-1 (For breakdown, see section H)

2шт.

4

11235

BEARING

HOSE - high pressure - 3/8" ID x 23" long (Consists of items 5 and 6)

2шт.

5

28465

HOSE - high pressure - (Bulk) - 3/8" x 21" long

2шт.

6

11091

COUPLING - reusable - 3/4" - 12 female thread

4шт.

7

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

CLAMP - tube,Cup, Primary Piston

2шт.

8

4397

LOCKWASHER - 3/8"

2шт.

9

4222

NUT - 3/8" NC

2шт.
