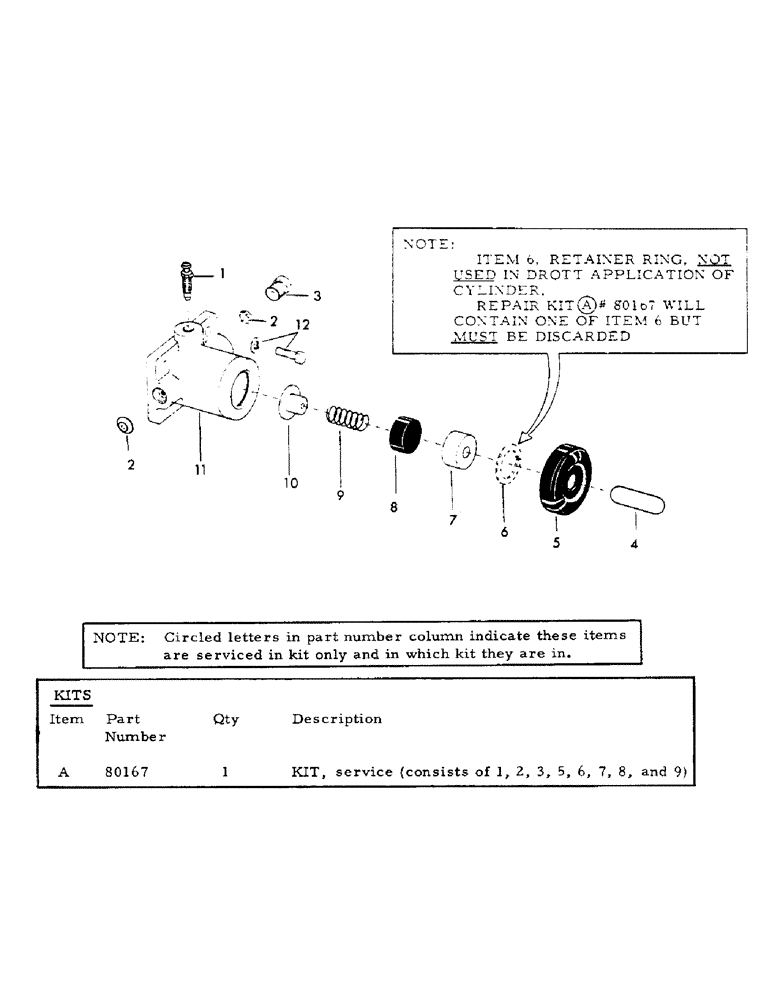

Запчасти Case 30YC (E08) - TRACK BRAKE CYLINDER (07) - HYDRAULIC SYSTEM

A80167

KIT - service (Consists of 1, 2, 3, 5, 6, 7, 8, and 9)

1шт.

209804

CYLINDER - track brake (Consists of items 1 thru 11)

1шт.

NSS = not serviced separately

1шт.

1

SCREW - bleeder

1шт.

2

INSERT - 1/4" tube seat

2шт.

3

PLUG - 1/4" tube seat

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - push

1шт.

5

BOOT

1шт.

6

RING - retainer - (IN #80167 kit - do not use)

1шт.

7

PISTON

1шт.

8

CUP

1шт.

9

SPRING - return

1шт.

10

NSS

NOT SOLD SEPARAT

STOP - spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

2350

STOP

CPSW - 1/4" x 3/4" NC GR 5

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.
