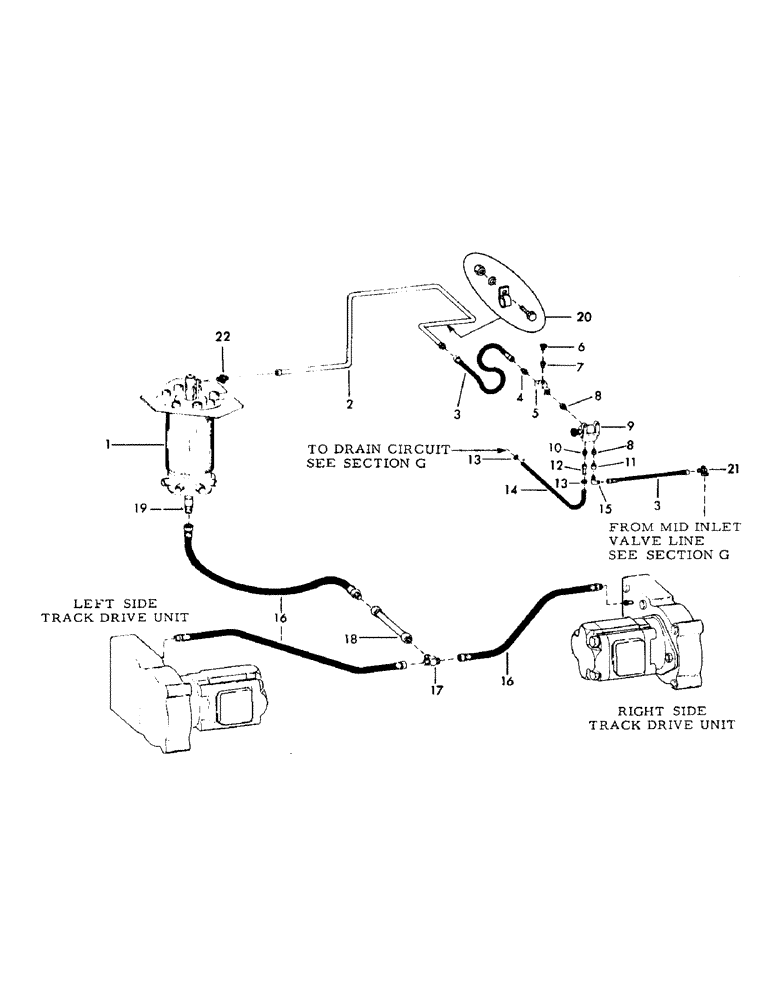

Запчасти Case 30YC (E06) - TRACK BRAKE HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
SWIVEL - hydraulic - (For breakdown, see section H)
1шт.
2
502514
LINE - hydraulic
1шт.
Change in listing.
1шт.
3
77121
HOSE - high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)
2шт.
4
101308
TOOTH
ADAPTER - (3/8" tube) - 9/16" - 18 male x 3/8" NPT male - 37 degree flared
1шт.
5
17935
TEE - 3/8" NPT male x 3/8" NPT female x 3/8" NPT male
1шт.
6
15161
PLUG - pipe - 1/8" - 27 NPT
1шт.
Change in listing.
1шт.
7
7780
BUSHING - reducing - 3/8" NPT male x 1/8" NPT female
1шт.
8
7772
BUSHING - reducing - 1/2" NPT male x 3/8" NPT female
2шт.
9
VALVE - brake - (For breakdown, see figure 3)
1шт.
2355
CPSW - 1/4" x 2" NC grade 5 (Valve, Serial Range: mounting-bracket)
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
4220
TOOL
NUT - 1/4" NC
2шт.
209699
BRACKET - valve mounting
1шт.
2350
STOP
CPSW - 1/4" x 3/4" NC grade 5 (Bracket mounting to back of cab)
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
4220
TOOL
NUT - 1/4" NC
2шт.
10
101309
ADAPTER
- (3/8" tube) - 9/16" - 18 male x 1/2" NPT male
1шт.
11
78869
VALVE - check
1шт.
12
209679
LINE - hydraulic
1шт.
13
10871
SEAL
CLAMP - hose - fits hoses from 3/8" to 5/8" O.D.
2шт.
14
202578
SCREW
HOSE - hose pressure - (Bulk) - 1 piece - 3/8" ID x 45" long
45шт.
15
7734
PRESSURE SWITCH
ELBOW - 90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared
1шт.
16
401727
HOSE - high pressure - 1/4" x 38" long - (With 7/16" - 20 female pressed on couplings)
3шт.
17
60496
DRILL
TEE - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male x 7/16" - 20 male - 37 degree flared
1шт.
18
404530
LINE - hydraulic
1шт.
19
SWIVEL - inner - (For breakdown, see figure 4)
1шт.
20
75865
SPARE PART
CLAMP
2шт.
2352
BUSHING
CPSW - 1/4" x 1-1/4" NC grade 5
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
4220
TOOL
NUT - 1/4" NC
2шт.
21
10356
ELBOW
- 90 degrees - swivel - (3/8" tube) - 9/16"-18 male x 9/16"-18 female - 37 degree flared
1шт.
22
101303
ADAPTER - (1/4" tube) - 7/16"-20 male x 1/4" NPT male - 37 degree flared
1шт.
