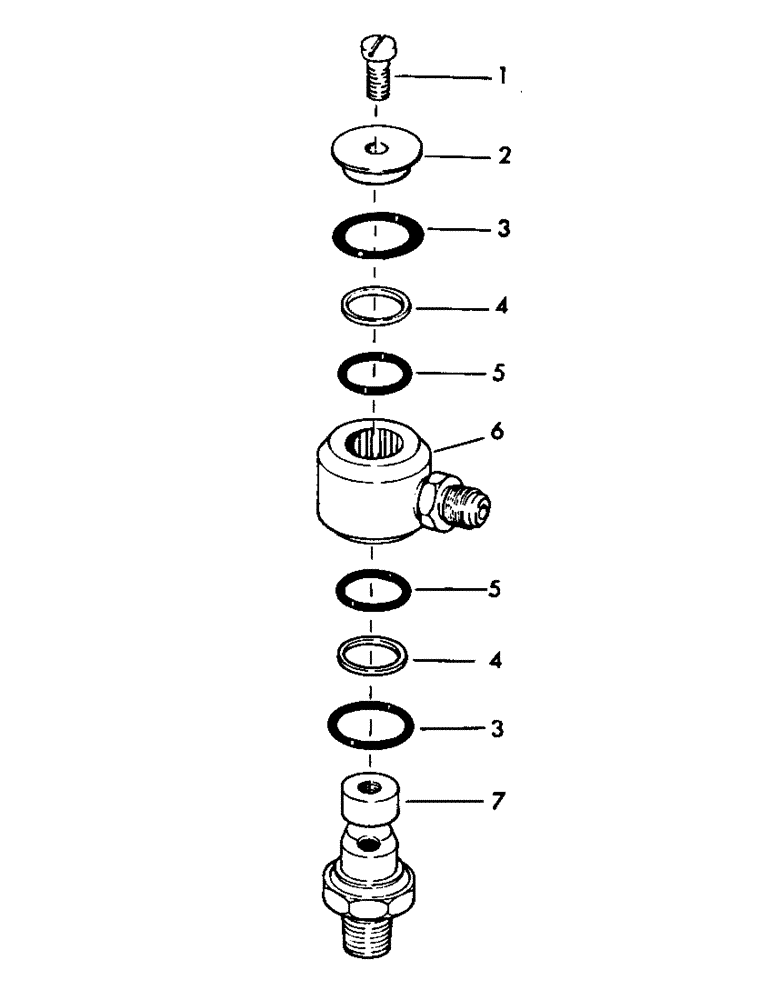

Запчасти Case 30YC (E05) - TRACK SERVICE BRAKE SWIVEL (07) - HYDRAULIC SYSTEM

209351

SWIVEL - track brake (Consists of items 1 thru 7)

1шт.

1

14691

PACKAGE

SCREW - fillister head - #10 x 3/8" NC

1шт.

2

7879

GASKET

CAP - grit

1шт.

3

5709

"O" RING - .737" ID x .937" OD

1шт.

4

80212

RING - back up

2шт.

5

6478

"O" RING - .612" ID x .812" OD

2шт.

6

80213

SLEEVE

1шт.

7

79933

STEM

1шт.
