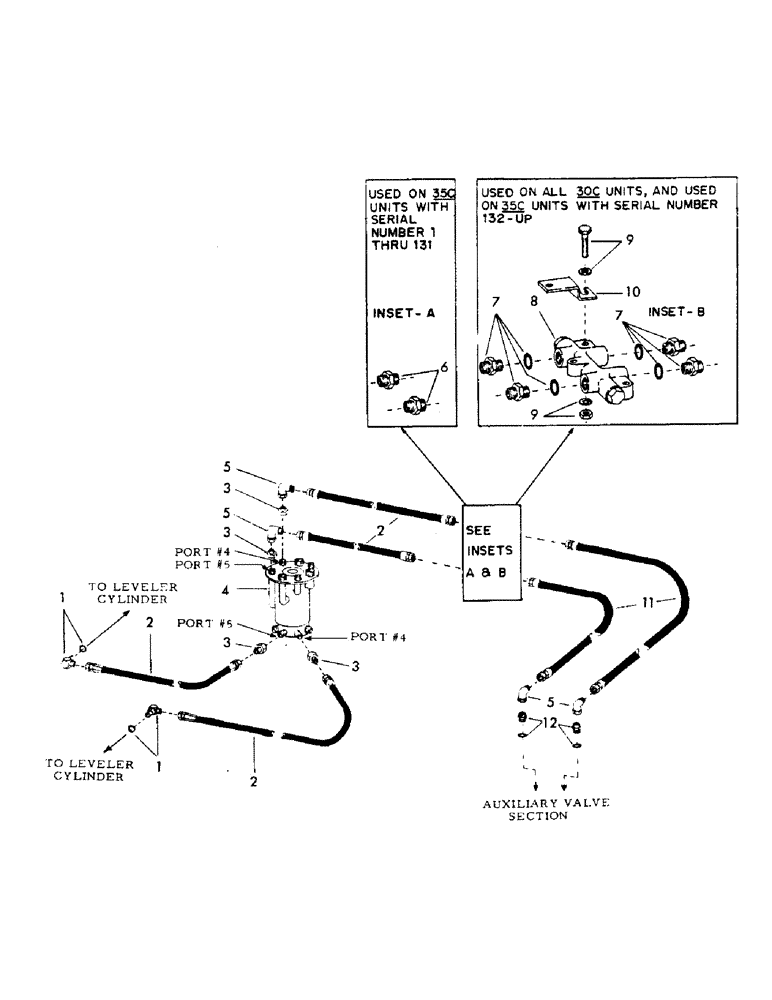

Запчасти Case 30YC (E02) - LEVELER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

7939

ELBOW - 90 degree adjustable - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "O" ring)

2шт.

6061

O-RING

"O" RING - .644" ID x .818" O.D.

2шт.

2

11230

HOSE - high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

4шт.

Change in listing.

1шт.

3

101833

ADAPTER - reducing - (3/4" x 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

4шт.

6277

O-RING

NUT - sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

4шт.

4

SWIVEL - hydraulic - (For breakdown, see section "H")

1шт.

5

10357

BRACKET

ELBOW - 90 degrees - swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

4шт.

6

NLS

NO LONGER SERVICED

UNION - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Used on 35C units with serial number 1 thru 131)

2шт.

Added listing.

1шт.

7

7963

ELBOW

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "O" ring) - used on all 30C units, and used on 35C units with serial number 132-up)

4шт.

Added listing.

1шт.

8

VALVE - check - (For breakdown, see section "H") - used on all 30C units and used on 35C units with serial number 132-up

1шт.

Added listing.

1шт.

9

2381

CPSW - 5/16" x 2-1/4" NC grade 5 - (Used on all 30C units and used on 35C units with serial number 132-up)

2шт.

7393

WASHER - flat - 5/16" - (Used on all 30C units and used on 35C units with serial number 132-up)

2шт.

Added listing.

1шт.

4396

LOCKWASHER - 5/16" - (Used on all 30C units and used on 35C units with serial number 132-up)

2шт.

Added listing.

1шт.

4221

WASHER,3/4", SAE

NUT - 5/16" NC - (Used on all 30C units and used on 35C units with serial number 132-up)

2шт.

Added listing.

1шт.

10

69624

BRACKET - valve mounting - (Used on all 30C units and used on 35C units with serial number 132-up)

2шт.

Added listing.

1шт.

11

11230

HOSE - high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

2шт.

12

7965

CONNECTOR - (1/2" tube) - 1-1/16" - 12 male x 3/4" - 16 male - 37 degree flared - (Includes "O" ring)

2шт.

Change in listing.

1шт.

6065

O-RING

"O" RING - .924" ID x 1.156" O.D.

2шт.
