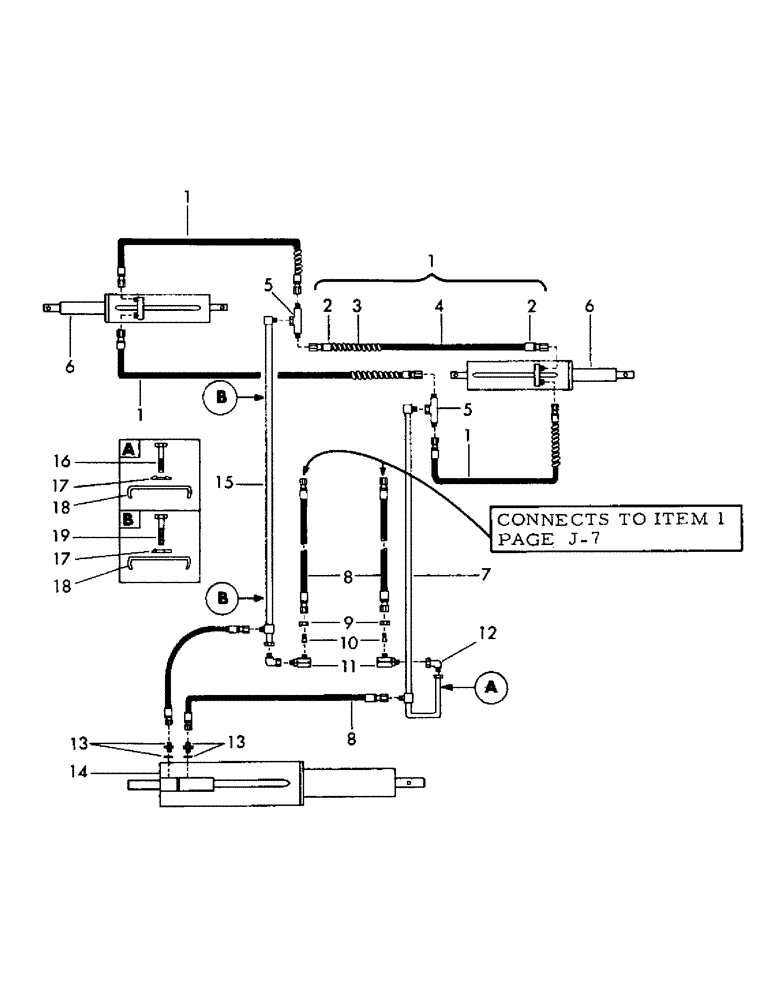

Запчасти Case 30YC (J06) - FELLER BUNCHER HYDRAULIC TUBING FROM "Y" BOOM TO GRABBER CYLINDER AND SHEAR CYLINDER AND RETURN) (07) - HYDRAULIC SYSTEM

1

60855

HOSE - high pressure - 3/8" ID x 52-1/2" long (Consists of items 2, 3 and 4)

4шт.

2

11091

COUPLING - reusable - 3/4" JIC Female

8шт.

3

78777

GUARD - armor - 7/8" ID x 50" long

4шт.

4

28465

HOSE - high pressure - (Bulk) 4 pieces 3/8" ID x 50-1/2" long

202шт.

5

63597

TEE - swivel - 3/4" male x male x female

2шт.

6

CYLINDER - grabber arm - (For breakdown, see Figure J9)

2шт.

7

502269

LINE - hydraulic

1шт.

8

15468

BUSHING

HOSE - high pressure - 3/8" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

9

6279

NUT - sleeve - (1" tube - 1-5/16" - 12 female

2шт.

10

101832

ADAPTER - reducing - (1" x 3/4" tube reduction) - 1-1/16" - 12 male

2шт.

11

SWIVEL - hydraulic line - (For breakdown, see Figure J-11)

2шт.

12

10361

BRACKET

ELBOW - 90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

13

7969

HYDRAULIC HOSE

CONNECTOR - (3/4" tube) - 1-5/16" - 12 male x 1-1/16" - 12 male - 37 degrees - (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403 OD

2шт.

14

CYLINDER - tree shear - (For breakdown, see Figure J-10)

1шт.

15

502270

LINE - hydraulic

1шт.

16

2468

TACHOMETER

CPSW - 1/2" x 1-3/4" NC GR 5

1шт.

17

4399

WASHER

LOCKWASHER - 1/2"

3шт.

18

46397

PIPE CLAMP

CLAMP - tube

3шт.

19

2469

CPSW - 1/2" x 2" NC GR 5

2шт.
