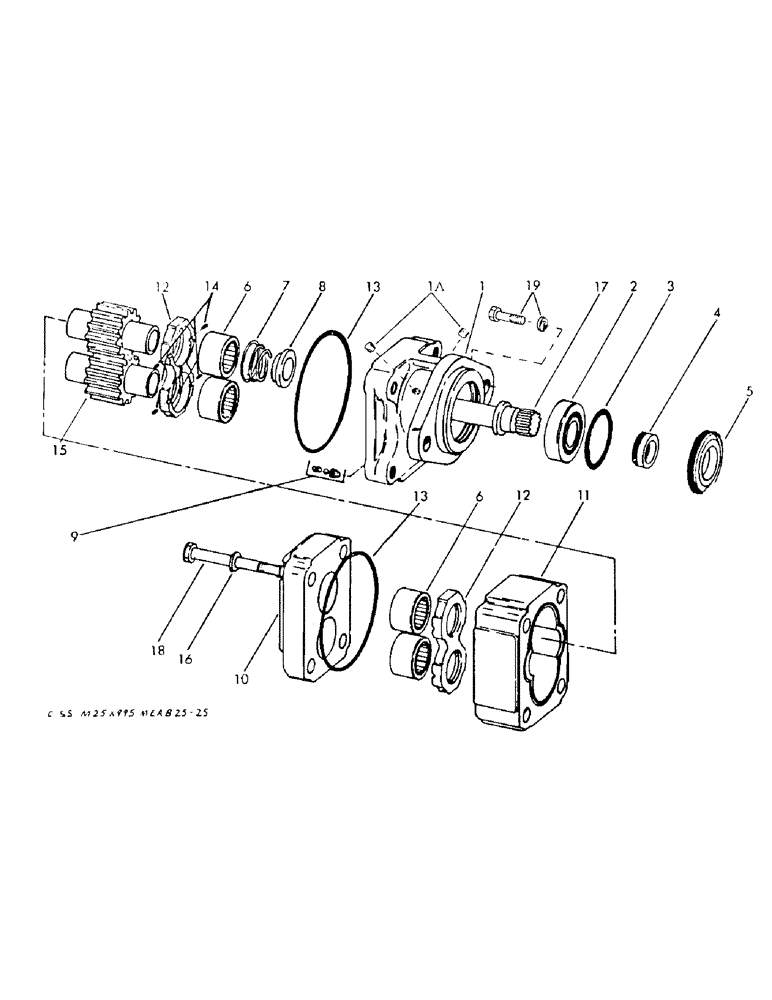

Запчасти Case 30YC (H26) - TRACK DRIVE MOTOR (07) - HYDRAULIC SYSTEM

33530M1

MOTOR, Consists of Refs. 1 thru 18

1шт.

1

77722

COVER - shaft end

1шт.

Part of motor P/N 33530M1

1шт.

1a

7879

GASKET

PLUG - 1/4" NPT

1шт.

Part of motor P/N 33530M1

1шт.

2

63513

BEARING - roller tapered

1шт.

Part of motor P/N 33530M1

1шт.

3

6592

SHAFT

"O" RING - 2.234" ID x 2.500" O.D.

1шт.

Part of motor P/N 33530M1

1шт.

4

70416

BRACKET

SEAL - high pressure

1шт.

Part of motor P/N 33530M1

1шт.

5

70415

RING

- retaining

1шт.

Part of motor P/N 33530M1

1шт.

6

63517

BRACKET

BEARING - roller

4шт.

Part of motor P/N 33530M1

1шт.

7

63518

RIVET

SPRING

1шт.

Part of motor P/N 33530M1

1шт.

8

NLS

NO LONGER SERVICED

BUSHING - shaft

1шт.

Part of motor P/N 33530M1

1шт.

9

61749

CHECK

2шт.

Part of motor P/N 33530M1

1шт.

10

61750

COVER - port end with 2-3/4" O.D. tube ports

1шт.

Part of motor P/N 33530M1

1шт.

11

67295

HOUSING - gear - no ports

1шт.

Part of motor P/N 33530M1

1шт.

12

63522

PLATE - thrust

2шт.

Part of motor P/N 33530M1

1шт.

13

83751

"O" RING - 4.109" ID x 4.375" O.D.

2шт.

Part of motor P/N 33530M1

1шт.

Change in listing.

1шт.

14

17682

SUPPORT

SEAL - pocket, 6" long bulk

1шт.

Part of motor P/N 33530M1

1шт.

15

67298

GEAR SET - 2-1/2"

1шт.

Part of motor P/N 33530M1

1шт.

16

495-81179

WASHER,21/32" x 1 1/4" x .179"

4шт.

Part of motor P/N 33530M1

1шт.

17

64277

SHAFT - 13 tooth spline

1шт.

Part of motor P/N 33530M1

1шт.

18

2519

CPSW - 5/8" x 5-3/4" NC grade 5

4шт.

Part of motor P/N 33530M1

1шт.

19

2467

CPSW - 1/2" x 1-1/2" NC grade 5, For motor mounting

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.
