Запчасти Case 30YC (H25) - TURNTABLE SWING MOTOR (07) - HYDRAULIC SYSTEM

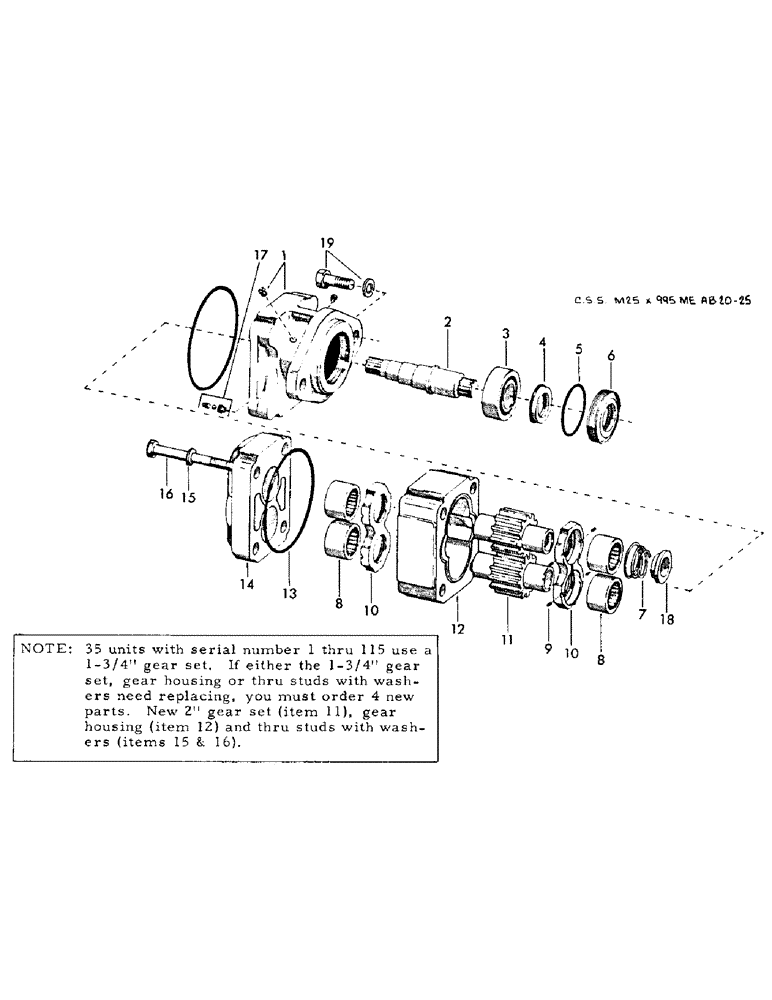

Схема запчастей Case 30YC - (H25) - TURNTABLE SWING MOTOR (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

502013

LINER

MOTOR - turntable (Consists of items 1 thru 18)

1шт.

1

77722

COVER - shaft end (Includes 7879 pipe plug)

1шт.

7879

GASKET

PLUG - pipe - 1/4" NPT

2шт.

2

64277

SHAFT

1шт.

3

63513

BEARING - roller - tapered

1шт.

4

70416

BRACKET

SEAL - high pressure

1шт.

5

6592

SHAFT

"O" RING - 2.234" ID x 2.500" OD

1шт.

6

70415

RING

- retainer

1шт.

7

63518

RIVET

SPRING

1шт.

8

63517

BRACKET

BEARING - roller

4шт.

9

17682

SUPPORT

SEAL - pocket - (Bulk) - 1 piece - 6" long -, Serial Range: (Cut-length)

16шт.

10

63522

PLATE - thrust

2шт.

11

67297

GEAR SET - 2"

1шт.

12

74508

HOUSING - gear

1шт.

13

6333

HYDRAULIC CYLINDER

"O" RING - 4.109" ID x 4.375" OD

2шт.

14

61750

COVER - port end - with 2-3/4" OD tube ports

1шт.

15

495-81179

WASHER,21/32" x 1 1/4" x .179"

4шт.

16

2517

BUSHING

CPSW - 5/8" x 5-1/2" NC GR 5

4шт.

17

61749

CHECK

2шт.

18

NLS

NO LONGER SERVICED

BUSHING - shaft

1шт.

19

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC GR 5 - (Mounting hardware)

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.

Выбрано товаров: 22
