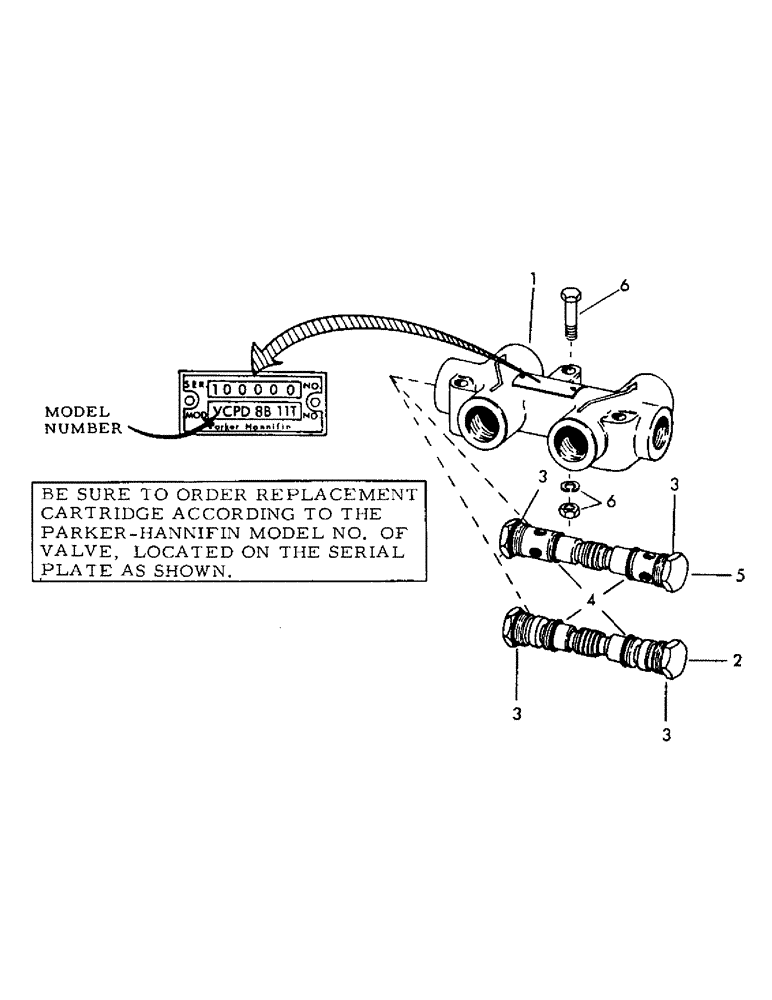

Запчасти Case 30YC (H23) - CHECK VALVE (LEVELER), (USED ON ALL 30C UNITS AND USED ON 35C UNITS WITH SERIAL NUMBER 132 - UP) (07) - HYDRAULIC SYSTEM

33333

VALVE - leveler check - complete (Consists of items 1 thru 4 or 1 and 3 thru 5)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

61960

CARTRIDGE - double acting (Includes items 3 and 4) This cartridge fits Parker-Hannifin check valve model VCP8BIA only

1шт.

3

12184

O-RING

"O" RING - plug - (Fits both cartridges)

2шт.

4

12584

FRONT PLATE

"O" RING - sleeve and poppet - (Fits both cartridges)

2шт.

5

61961

CARTRIDGE - double acting (Includes items 3 and 4) This cartridge fits Parker-Hannifin check valve model VCPD8B11T only

1шт.

6

2355

CPSW - 1/4" x 2" NC GR 5 (Mounts, Serial Range: valve-frame)

1шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

4220

TOOL

NUT - 1/4" NC

2шт.
