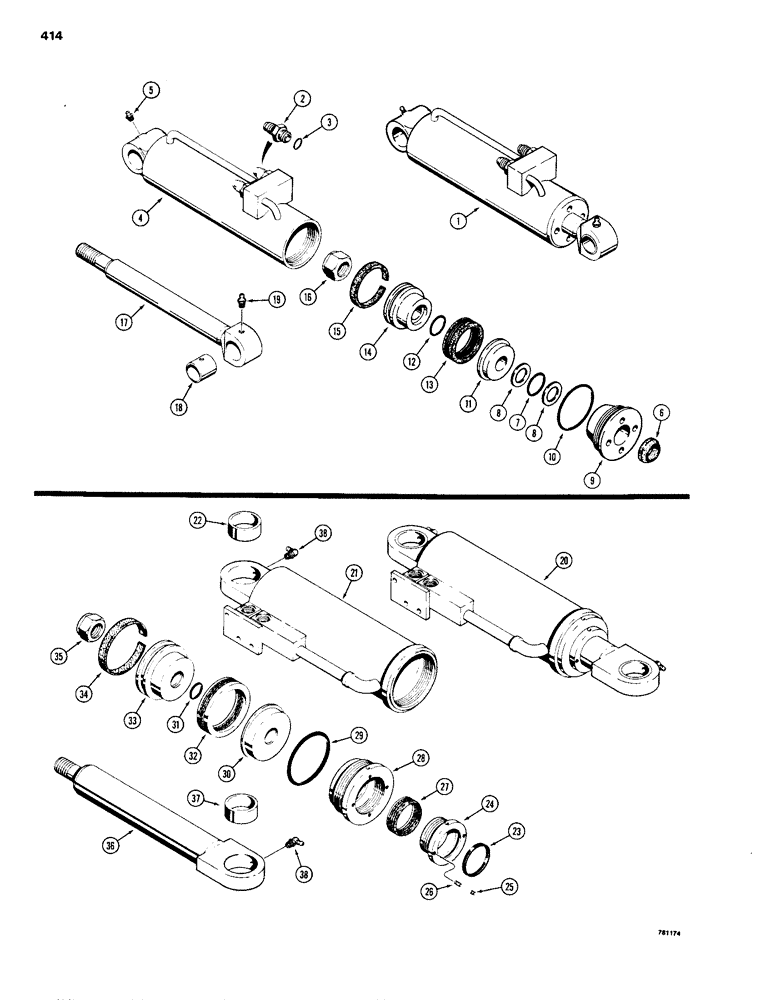

Запчасти Case 1150B (414) - FELLER BUNCHER CYLINDERS (07) - HYDRAULIC SYSTEM

1

S504748

CYLINDER - grab arm, 3-1/2" (89 mm) ID x 9.70" (246 mm) stroke, Includes: Refs. 2 - 19

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Tube 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

S216140

TUBE - cylinder, Includes: Ref. 5

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

6

A18690

RING

WIPER RING - rod, outer

1шт.

7

A18687

O-RING

- rod

1шт.

8

A18686

WASHER

RING - backup for rod seal, leather

2шт.

9

A18689

GLAND

- cylinder

1шт.

10

A30389

O-RING,3.359" ID x 3.637" OD x 0.139"

- gland

1шт.

11

S49783

PISTON - split, rod end half

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- split piston

1шт.

13

A18684

PACKING

- piston, chevron

1шт.

14

A18682

PISTON

- split, nut end half

1шт.

15

A18693

RING

- wear, piston

1шт.

16

131-21

LOCK NUT,1 1/8"-12, GB

NUT - hex, self lock, 1-1/8" - 12 NF

1шт.

17

S202796

ROD - piston, 1-1/4" (32 mm) dia., Includes: Refs. 18 & 19

1шт.

18

S64396

BUSHING - rod

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

20

S502258

CYLINDER - shear, 6-1/4" (159 mm) ID x 15" (381 mm) stroke, Includes: Refs. 21 - 38

1шт.

21

S211538

TUBE - S502258 sheer cylinder, Includes: Ref. 22 25.62" L

1шт.

22

S202195

BUSHING

- tube, S502258 sheer cylinder

1шт.

23

S43987

RING

WIPER RING - rod, outer, S502258 sheer cylinder

1шт.

24

S28247

GLAND

- cylinder, small, S502258 sheer cylinder

1шт.

25

178-846

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, no. 10 - 32 NF x 1/4", oval point, S502258 sheer cylinder

2шт.

26

178-839

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, no. 10 - 23 NF x 5/8", socket point, S502258 sheer cylinder

2шт.

27

S25164

RING

PACKING - rod, chevron, S502258 sheer cylinder

1шт.

28

S28257

GLAND

- large, S502258 sheer cylinder

1шт.

29

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

- gland, S502258 sheer cylinder

1шт.

30

S29929

PISTON - split, rod end half, S502258 sheer cylinder

1шт.

31

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- split piston, S502258 sheer cylinder

1шт.

32

S23717

SEAL

PACKING - piston, chevron, S502258 sheer cylinder

1шт.

33

S28239

PISTON - split, nut end half, S502258 sheer cylinder

1шт.

34

S23716

SEAL

RING - wear, piston, S502258 sheer cylinder

1шт.

35

S80914

NUT

- lock, special, S502258 sheer cylinder

1шт.

36

S211542

ROD - piston, 3-1/2" (89 mm) dia, S502258 sheer cylinder, Includes: Ref. 37

1шт.

37

S202195

BUSHING

- rod, S502258 sheer cylinder

1шт.

38

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , S502258 sheer cylinder 90º, 1/8" NPT x .84" lg

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
