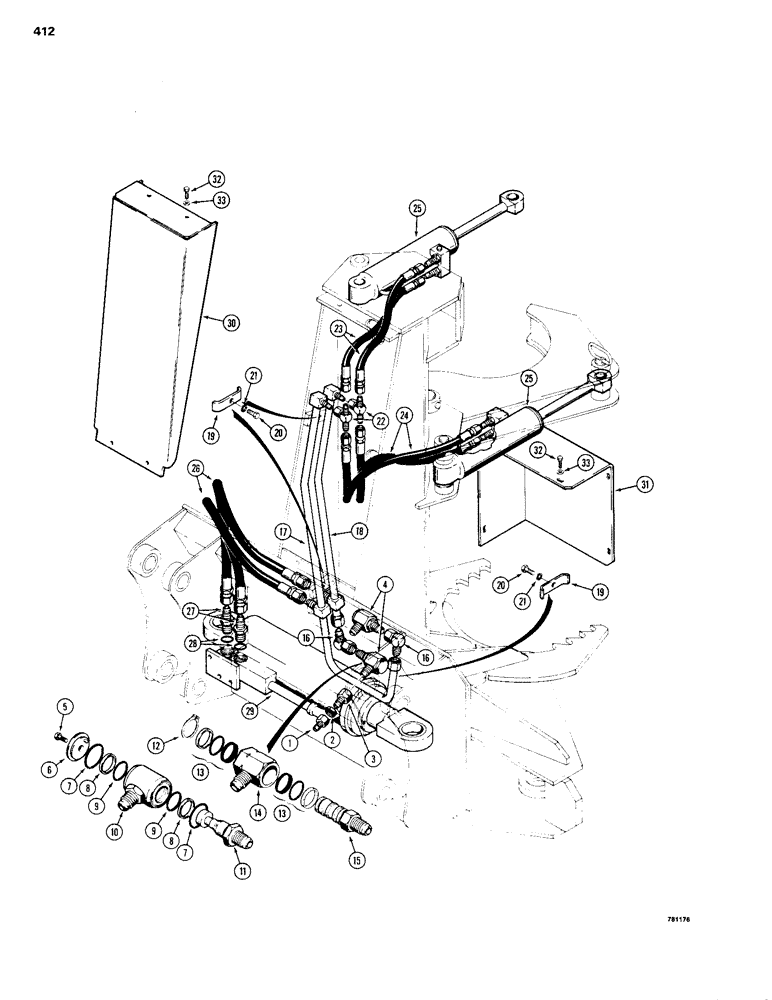

Запчасти Case 1150B (412) - FELLER BUNCHER, HYDRAULIC LINES AND CYLINDERS (07) - HYDRAULIC SYSTEM

1

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

FITTING - straight

2шт.

2

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT

2шт.

3

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

FITTING

2шт.

4

S205533

FITTING ASSEMBLY - swivel

2шт.

5

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Mason type Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

6

S7992

GUARD

- grit, mason type

1шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- large, mason type

2шт.

8

S81854

RING, SNAP

WASHER - leather backup, mason type

2шт.

9

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- small, mason type

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - fitting, mason type

1шт.

11

NSS

NOT SOLD SEPARAT

STEM - fitting, mason type

1шт.

12

L32161

SNAP RING,#131, Ext

RING - Snap, , eastman type #131, Ext

1шт.

13

S79932

KIT

- seal, eastman type

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - fitting, eastman type

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - fitting, eastman type

1шт.

16

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

FITTING - 90 degree, eastman type

2шт.

17

S502269

TUBE - to grab arm cylinders, eastman type 1" OD

1шт.

18

S502270

TUBE - to grab arm cylinders, eastman type 1" OD x 4.8, 34.58" L

1шт.

19

S46397

CLAMP

- tube, eastman type

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Eastman type Hex, 1/2"-13 x 2", G5

3шт.

21

92-8

LOCK WASHER,1/2"

eastman type 1/2"

3шт.

22

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- branch, 1/2" JIC, eastman type

2шт.

23

S88684

HOSE - 35" (899 mm) long, eastman type

2шт.

24

S76788

HOSE

0.38" ID x 32.00" , Eastman Type

2шт.

25

S504748

CYLINDER - grab arm, parts list Fig. 414, eastman type

2шт.

26

D44752

HOSE

- to shear cylinder, 28" (686 mm) long, eastman type

2шт.

27

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - swivel, eastman type, Incl. Ref. 28

2шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

eastman type

1шт.

29

S502258

CYLINDER - shear, parts list Fig. 414, eastman type

1шт.

30

S217628

GUARD - hydraulic lines, upper, eastman type

1шт.

31

S505011

GUARD - hydraulic lines, lower, eastman type

1шт.

32

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

(Eastman type) Hex, 1/2"-13 x 1 3/8", G5, Full Thd

8шт.

33

195-33

WASHER,1/2"

- flat, , eastman type 1/2"

8шт.
