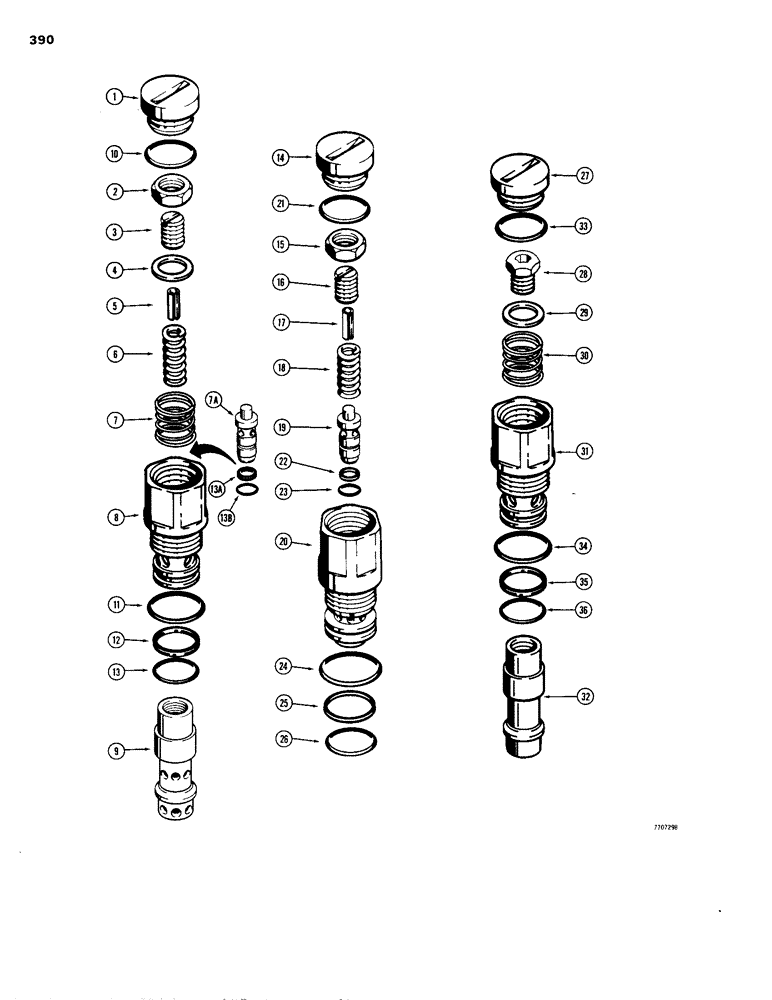

Запчасти Case 1150B (390) - ANTICAVITATION VALVES AND RELIEF VALVES (07) - HYDRAULIC SYSTEM

R30156

VALVE

- anticavitation and relief, Includes: Refs. 1 - 13B

1шт.

R30159

VALVE

- anticavitation and relief, Includes: Refs. 1 - 13B

1шт.

R38704

VALVE

- anticavitation and relief, Includes: Refs. 1 - 13B

1шт.

D75858

VALVE, PRESSURE RELI

VALVE - anticavitation and relief, Includes: Refs. 1 - 13B

1шт.

1

R30182

PLUG

1шт.

2

R30180

NUT

1шт.

3

R30179

ADJUSTMENT SCREW

1шт.

4

D78444

WASHER

1шт.

5

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, 3/16" x 11/16", Slotted

1шт.

6

R30181

VALVE SPRING

SPRING - inner

1шт.

7

R30196

SPRING

- outer

1шт.

7a

D78443

PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

D78445

SPOOL

POPPET

1шт.

R30184

SEAL

KIT - seal, Includes: Ref. 10 - 13B

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N R30184

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large

1шт.

Part of Seal Kit, P/N R30184

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N R30184

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30184

1шт.

13a

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N R30184

1шт.

13b

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit, P/N R30184

1шт.

R30163

LOCK VALVE

VALVE - relief

1шт.

D78479

VALVE

- relief

1шт.

D78480

VALVE

- relief, Includes: Refs. 14 - 26

1шт.

14

R30182

PLUG

relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

15

R30180

NUT

relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

16

R30179

ADJUSTMENT SCREW

relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

17

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, , Relief valves 3/16" x 11/16", Slotted

1шт.

Part of Relief Valve, P/N D78480

1шт.

18

R30181

VALVE SPRING

SPRING, relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON, relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

20

NSS

NOT SOLD SEPARAT

BODY, relief valves

1шт.

Part of Relief Valve, P/N D78480

1шт.

R30184

SEAL

KIT - seal, relief valves, Includes: Refs. 21 - 26

1шт.

Part of Relief Valve, P/N D78480

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup, relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING, relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - small, relief valves

1шт.

Part of Seal Kit, P/N R30184

1шт.

Part of Relief Valve, P/N D78480

1шт.

R30165

HYDRAULIC VALVE

VALVE - anticavitation

1шт.

D78449

VALVE

- anticavitation, Includes: Refs. 27 & 36

1шт.

27

R30182

PLUG

anticavitation valve

1шт.

28

R31117

PLUG

- R30165 valve, anticavitation

1шт.

28

D78450

PLUG

- special, D78449 valve, anticavitation

1шт.

29

R30197

WASHER

- special, R30165 valve, anticavitation

1шт.

29

D78444

WASHER

- special, D78449 valve(Replaced D78440), anticavitation

1шт.

30

R30196

SPRING

anticavitation valve

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING, anticavitation valve

1шт.

32

D78451

VALVE POPPET

POPPET, anticavitation valve

1шт.

R30184

SEAL

KIT - seal, anticavitation valve, Includes: Refs. 33 - 36

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

anticavitation valve

1шт.

Part of Seal Kit, P/N R30184

1шт.

34

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, anticavitation valve

1шт.

Part of Seal Kit, P/N R30184

1шт.

35

NSS

NOT SOLD SEPARAT

RING - backup, anticavitation valve

1шт.

Part of Seal Kit, P/N R30184

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING, anticavitation valve

1шт.

Part of Seal Kit, P/N R30184

1шт.
