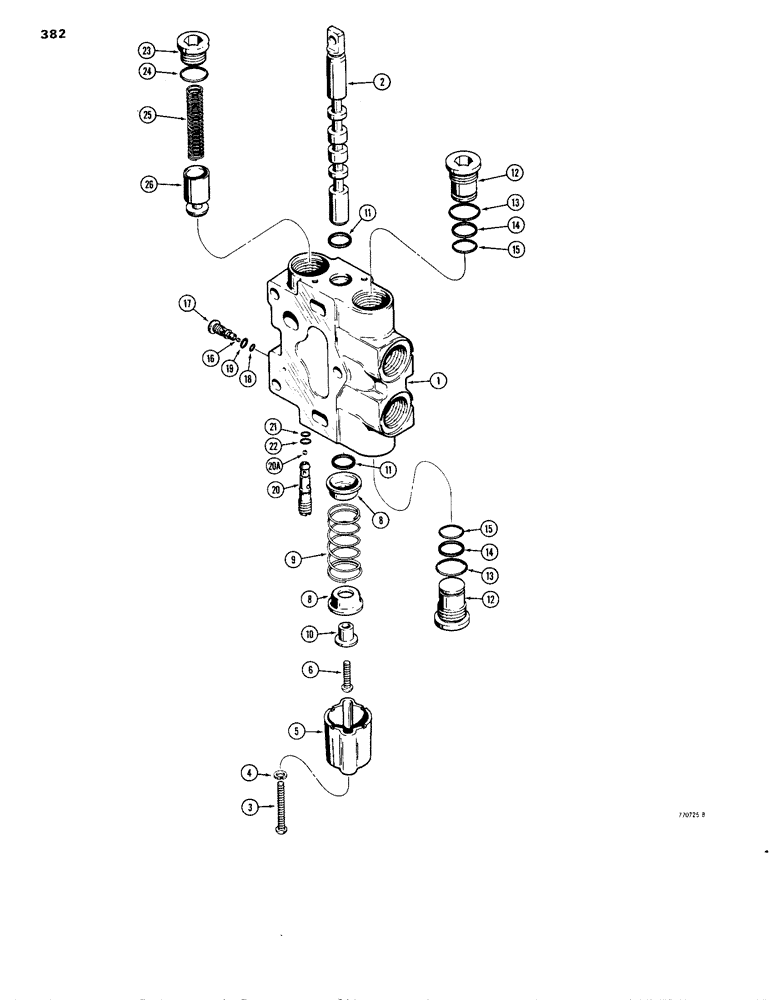

Запчасти Case 1150B (382) - R30151 VALVE SECTION, DOZER ANGLE AND TILT/PITCH SECTION (07) - HYDRAULIC SYSTEM

R30151

HYD VALVE SECTION

ANGLE AND TILT/PITCH SECTION - dozer, identification no. 204 or 206, Includes: Refs. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- slotted, 1/4" - 20 NC x 2-1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

D78454

HOUSING

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

- slotted, 1/4" - 20 NC x 1"

1шт.

8

R30191

WASHER

- spring

2шт.

9

R30192

SPRING

1шт.

10

D78452

BUSHING

SPACER

1шт.

11

G46908

O-RING

2шт.

12

R30167

PLUG

2шт.

R30174

GASKET KIT

KIT - seal, Includes: Refs. 13 - 15

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

(Replaced NSS) -021, 90 Duro, .926" ID x .070" Thk

1шт.

Part of Seal Kit, P/N R30174

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N R30174

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30174

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: Refs. 16 - 19

1шт.

16

211-255

BALL,3/16 Dia

steel 3/16 Dia

1шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Refs. 18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30185

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30185

1шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Refs. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30186

SEAL

KIT - seal, Includes: Refs. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30186

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30186

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

R30189

SPRING

1шт.

26

D78440

SPOOL

POPPET

1шт.
